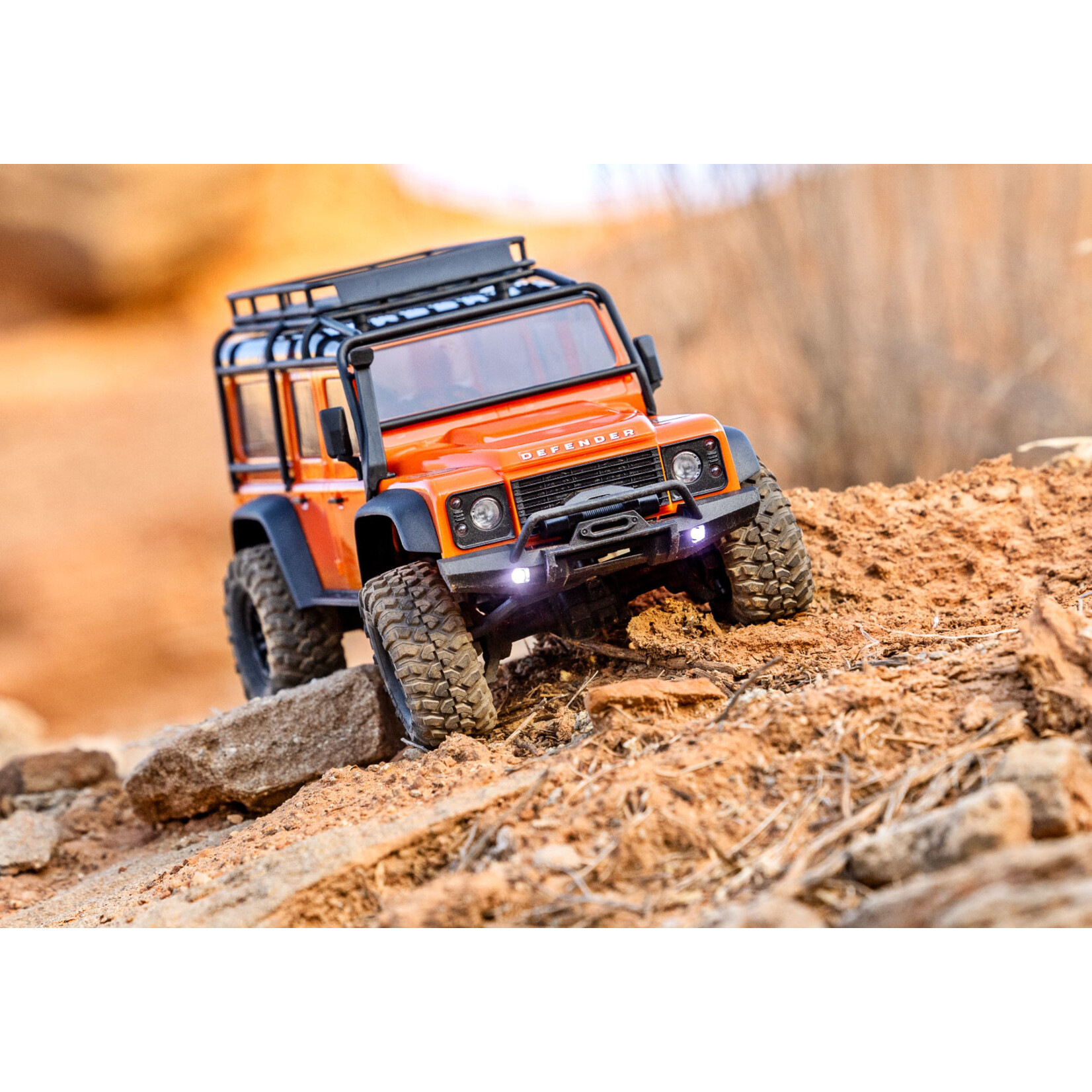

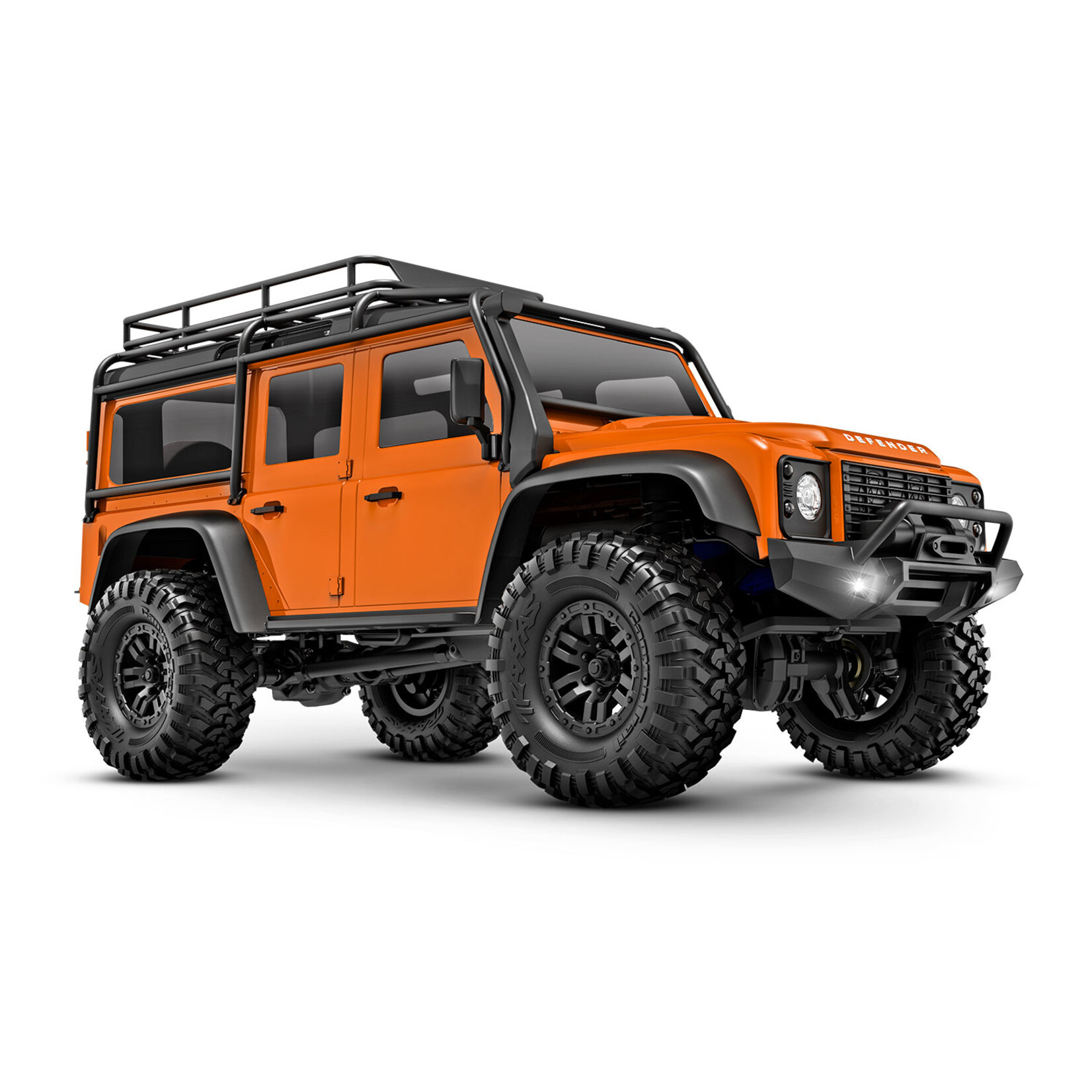

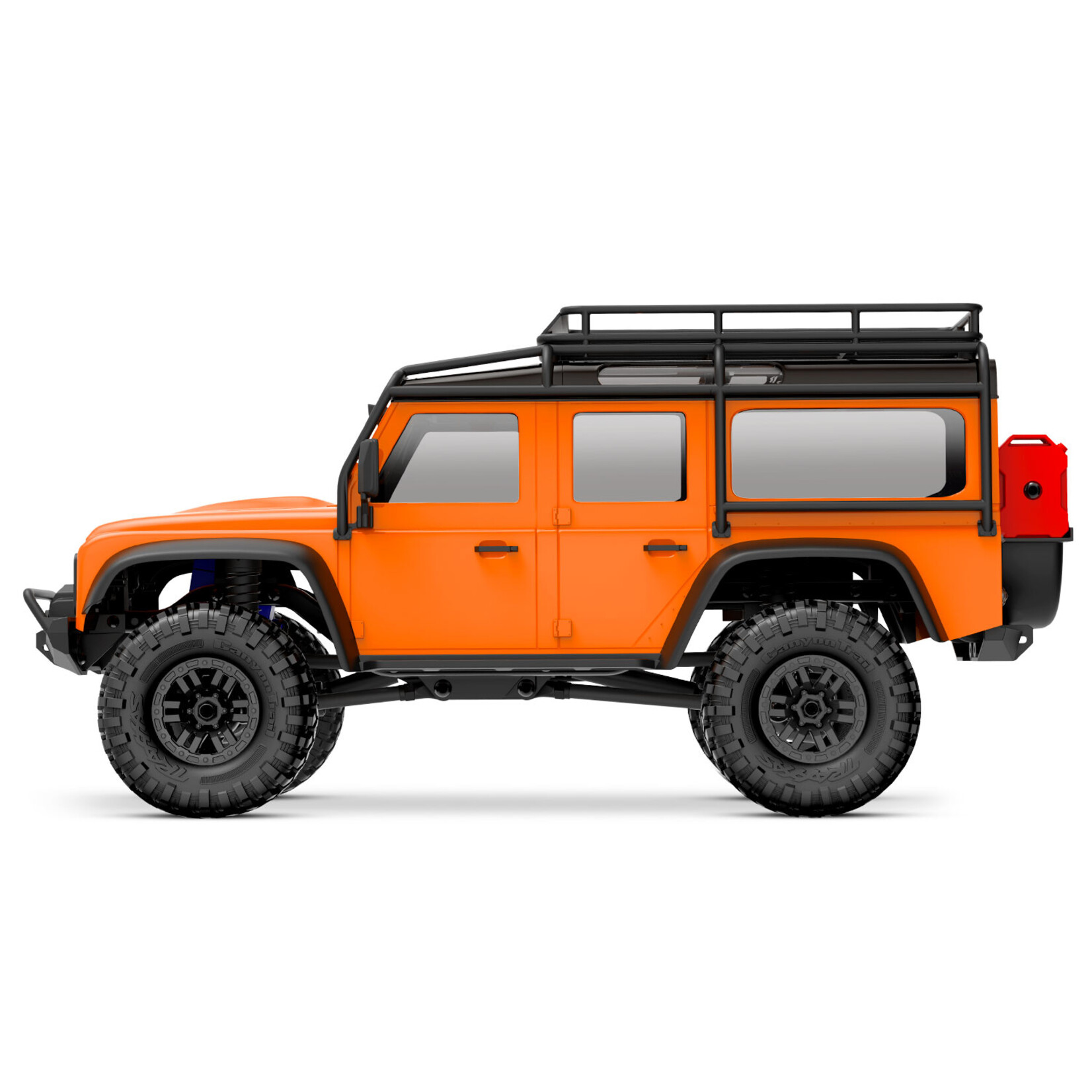

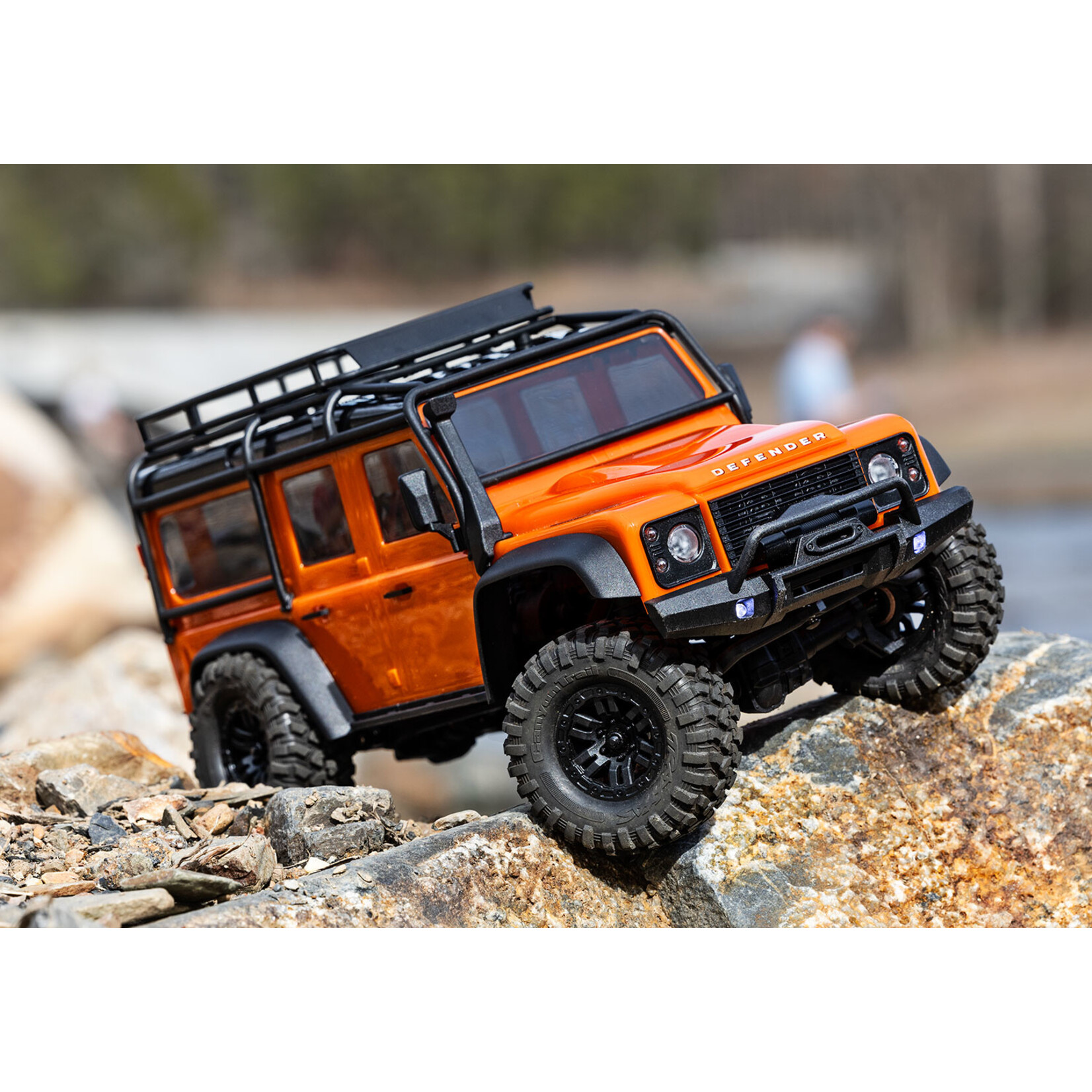

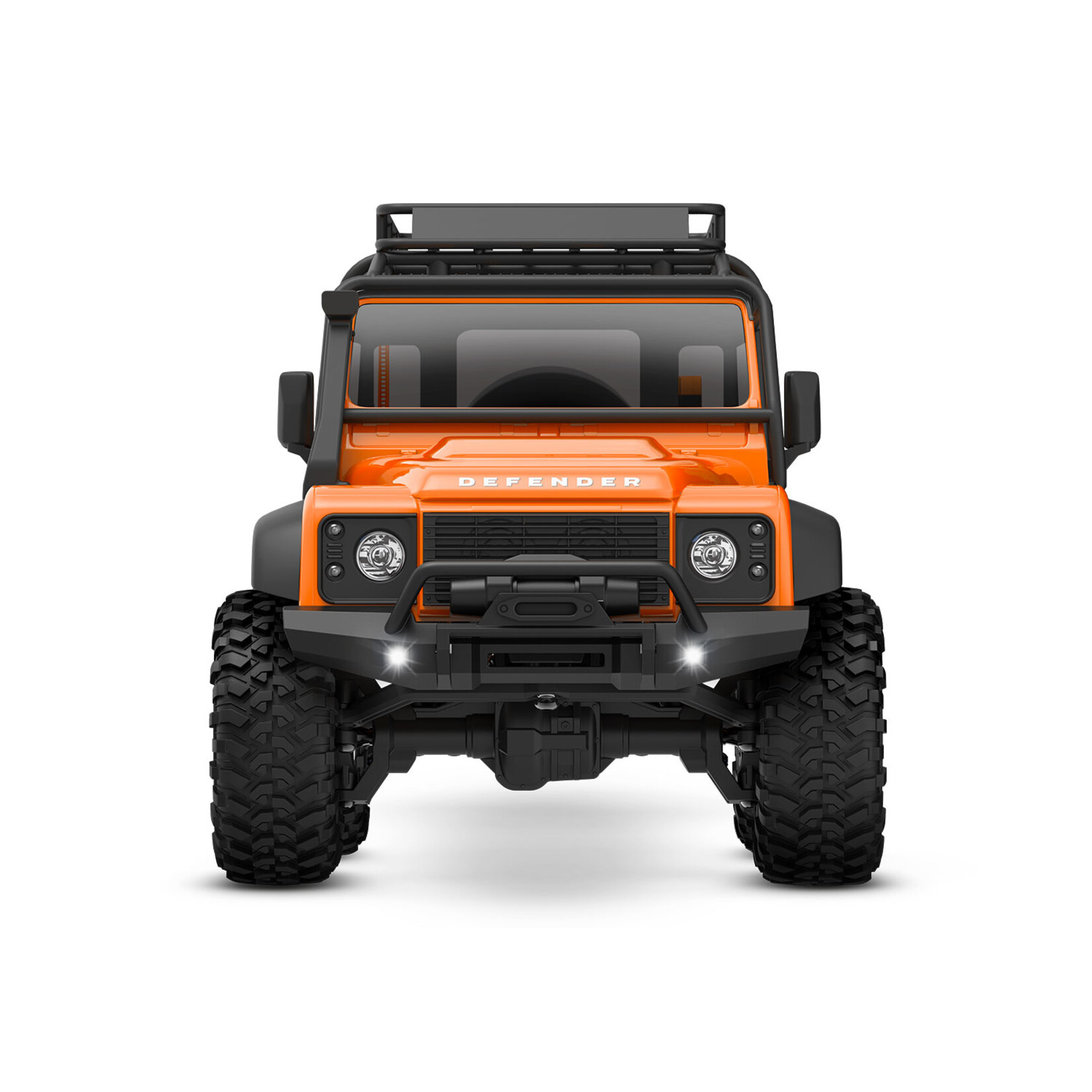

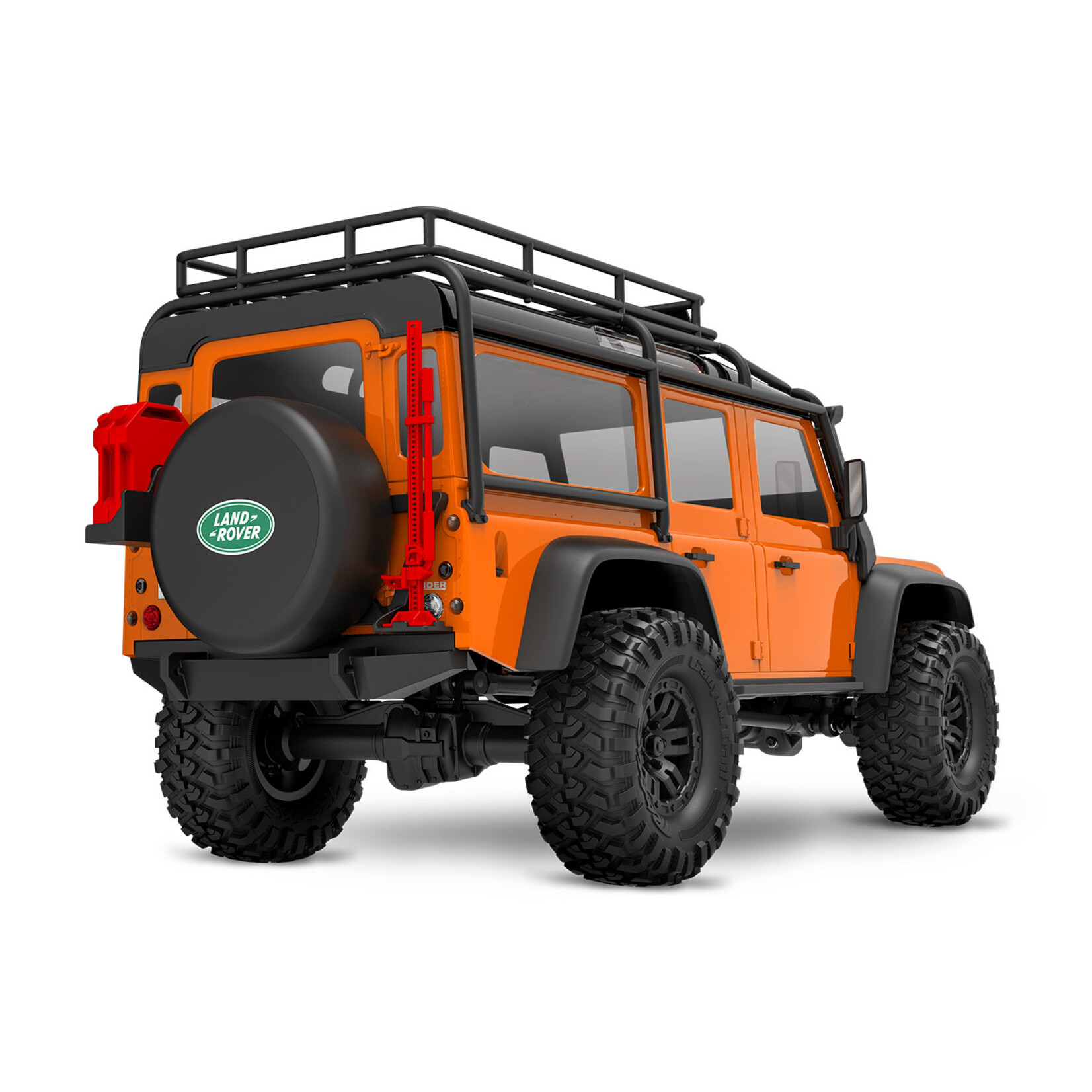

Introducing TRX-4M, a new way to experience all the fun, adventure, and scale realism of the TRX-4 in a 1/18 platform. TRX-4M bridges the gap between the small crawler scene and 1/10 scale quality and performance. Oil-filled shocks, steel frame rails, and a smooth running drivetrain give it true outdoor capability over rocks and through grass and streams. The tight turning radius and precise throttle control give it fantastic indoor maneuverability.
Features:
- Highly-detailed licensed bodies
- Molded-in color won’t chip or flake
- Tough fender flares and rock sliders
- Realistic side mirrors, door handles, & wipers
- LED bumper lights
- Heavy-duty latching clips
- Hold tightly on the trail
- Release in just seconds
- ECM-2.5™ Electronic Control Module
- Incorporates ESC, receiver, and LED controller in one chassis
- Fully waterproof for all-weather fun
- Three drive profiles
- Traxxas EZ-Set® one-button setup
- Built-in Pro Scale® LED functionality
- Two-stage low voltage protection (LVD)
- Motor overload protection
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Powerful Titan® 87-turn brushed motor
- Fixed gear mesh doesn’t require adjustment
- Forward mounting position for improved crawling dynamics
- Heavy-Duty Steel Ladder Frame
- Deep C-channel design
- Thicker center section for maximum rigidity
- Rails run from bumper to bumper
- Full-time shaft-driven 4-wheel drive
- Solid steel axles
- Spool-equipped front and rear axles
- Heavy-duty CV center driveshafts
- Concentrates weight lower for improved stability
- Wide rubber strap secures battery in place
- Optional Transmission Ratios (sold separately)
- Optional Low Range or Speed Gearing transmissions
- Modular design swaps out in minutes
- Heavy-duty 2065T steering servo
- Metal main gear
- Superior 45° steering angle
- Direct steering (no servo saver)
- Triangulated 4 link front and rear
- Heavy-duty rod ends
- Provides smooth controlled damping
- Realistic driving body movements
- Adjustable pre-load spacers
- Easily refreshed with available rebuild kits
- Highly-detailed 1" Replica wheels7mm hex
- Pre-mounted tires
- BF-Goodrich® Mud Terrain T/A® KM3 (Bronco)
- Canyon AT (Defender)
- Trail-tuned rubber compound
- Battery and Charger Included
- High-capacity 2-cell LiPo battery7.4 volts
- 750mAh for over an hour of run time
- 2-amp USB-powered fast charger
- iD® technology for faster, safer charging
- Low-Maintenance Self-Lubricating Bushings
- Durable Hex hardware
Includes:
- TRX-4M® Ready-To-Race® model
- Licensed ABS hard body
- Titan® 180 87-turn motor
- ECM-2.5™ Electronic Control Module
- TQ transmitter
- 7.4 volt 750mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD®
- High quality maintenance tools
Needed To Complete:
- Four AA alkaline batteries for the transmitter
Specs:
Length: |
10.3 inches (262mm) (Bronco) 11 inches (279mm) (Defender) |
Front Track: |
4.9 inches (124mm) |
Rear Track: |
4.9 inches (124mm) |
Ground Clearance: |
1.12 inches (29mm) |
Weight (w/o battery): |
1.03lbs (468g) (Bronco) 1.06lbs (483g) (Defender) |
Height: |
4.6 inches (117mm) (Bronco) 5.3 inches (135mm) (Defender) |
Wheelbase: |
6.10 inches (155mm) |
Approach Angle: |
54° (Bronco) 52° (Defender) |
Breakover Angle: |
45° (Bronco) 45° (Defender) |
Departure Angle: |
48° (Bronco) 41° (Defender) |
Shock Length (front and rear): |
2.0 inches (51mm) |
Hex Size: |
7mm |
Wheels (front and rear): |
1.0 x 0.49 inches (25.4 x 12.5mm) |
Tires (front and rear): |
2.2 x 1.0 inches (57 x 25.4mm) |
Electronic Control Module: |
ECM-2.5™ (Combo ESC, Receiver, Lighting Control*) |
Motor (electric): |
Titan® 180 87T |
Differential Type: |
Fully Locked; 2:1 Axle Ratio |
Chassis Structure/Material: |
Steel Ladder Frame with Nylon Composite Crossmembers |
Brake Type: |
Electronic “Hill Hold” |
Drive System: |
Shaft-Driven 4WD |
Steering: |
Axle-Mounted Servo |
Radio System: |
TQ™ 2.4GHz 2-Channel Transmitter |
Servo: |
#2065T Heavy-Duty Waterproof |
Skill Level: |
1 |
Battery Tray: |
50.5mm L X 31mm W |
