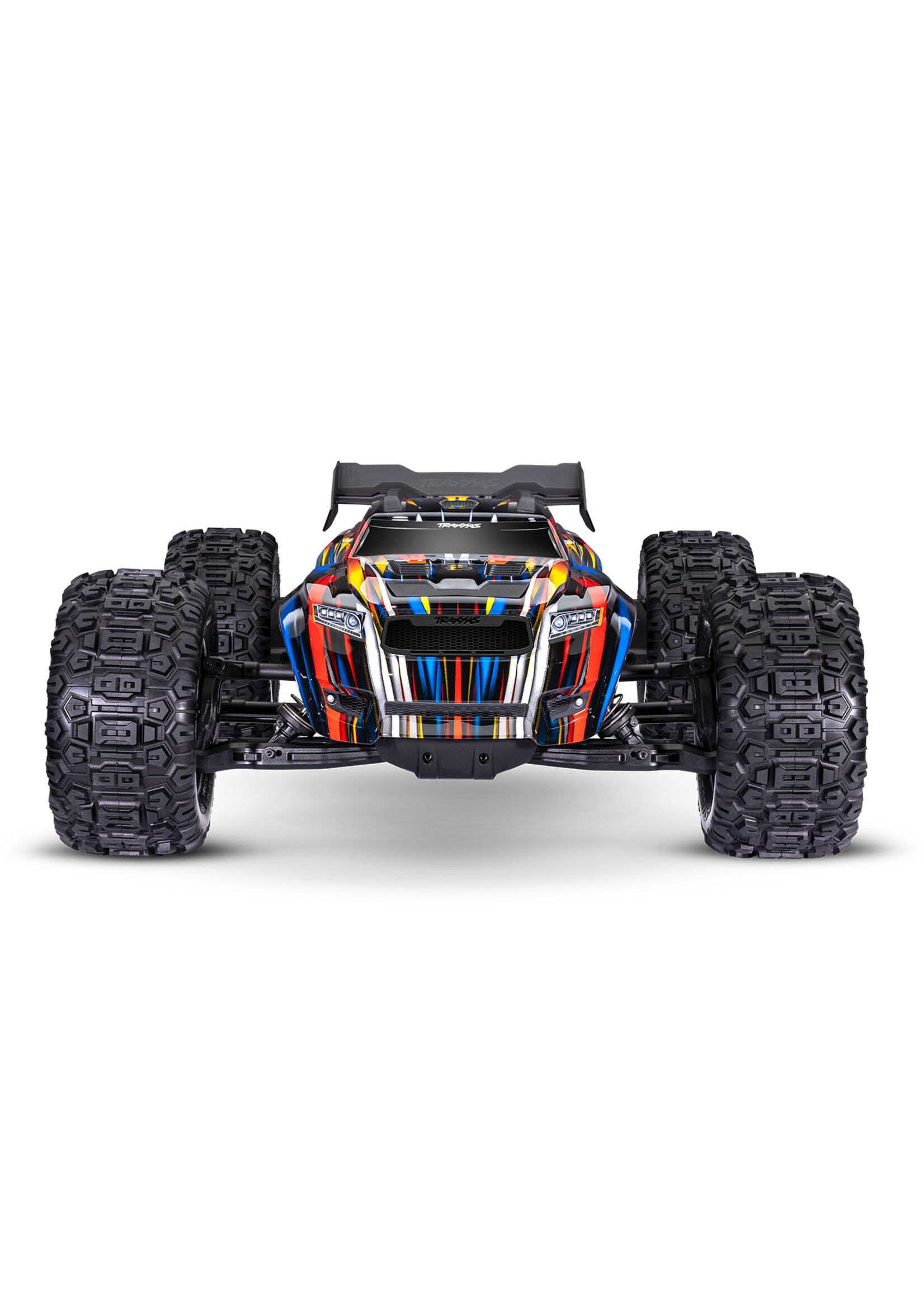

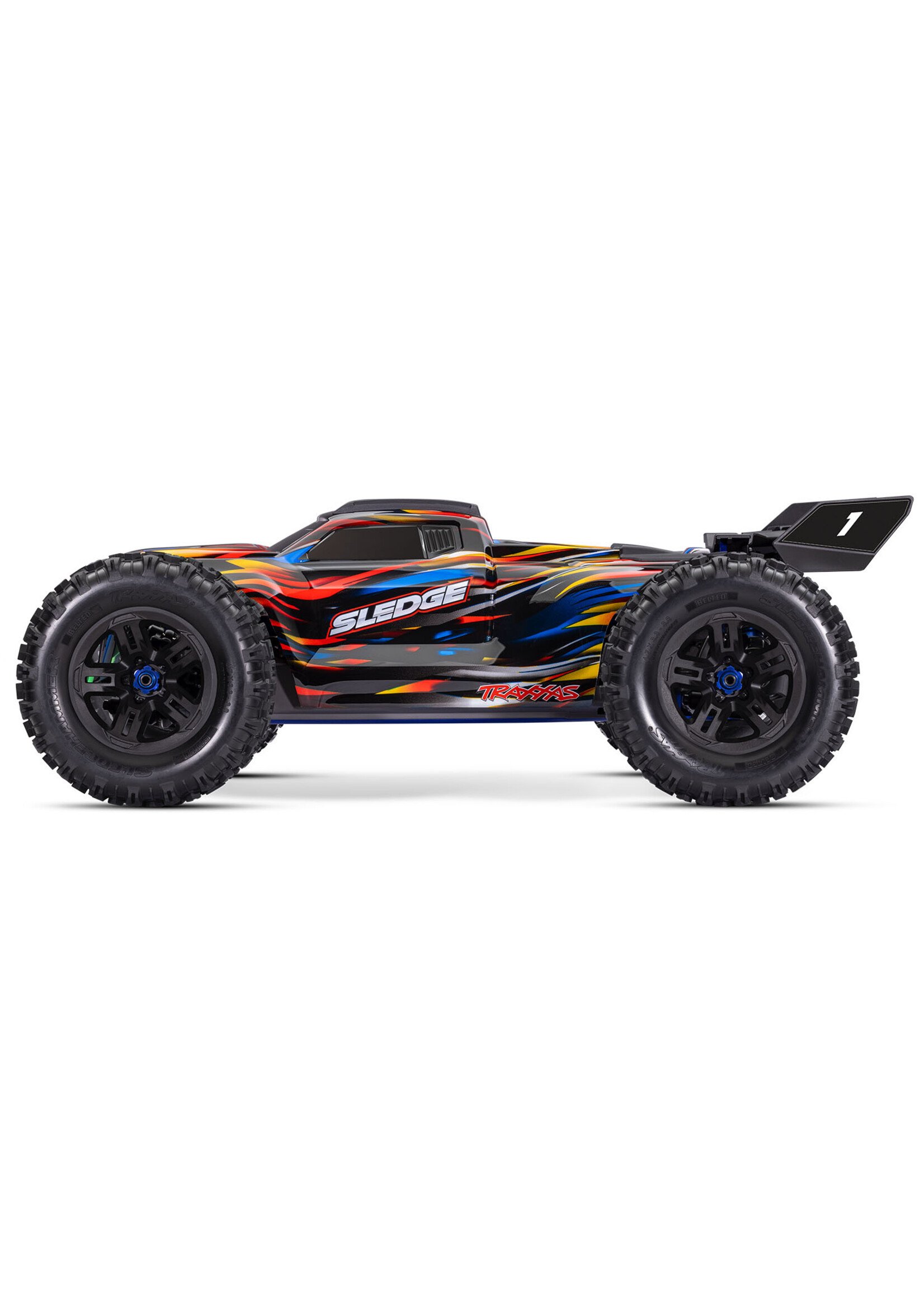

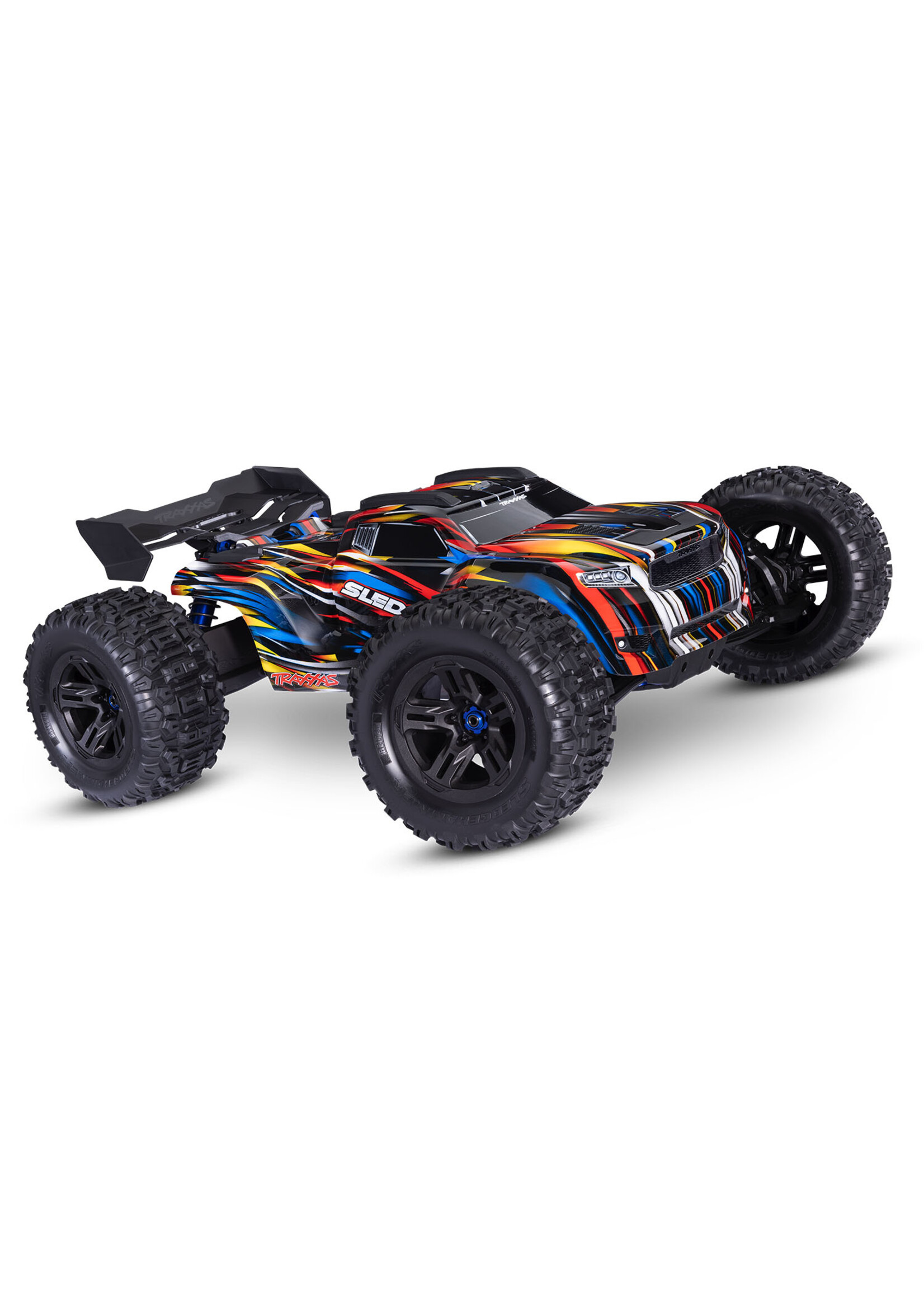

Traxxas 950964BLUE - 1/8 Sledge Belted 4WD - Blue

NOTE: This item is available for IN STORE PURCHASE/CURBSIDE PICKUP ONLY

Traxxas 950964BLUE - 1/8 Sledge Belted 4WD - Blue

Engineered. Tested. Built to a higher standard. Sledge® is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust. New belted Sledgehammer® tires limit high-speed tire expansion for a larger, flatter contact patch and game-changing high-speed precision and control.

Engineered for 6s Power

Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

Superior Chassis Strength

Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

Clipless Body

Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when YOU release it.

Features:

VXL-6s Waterproof Electronic Speed Control

- 6s LiPo compatible

- Integrated cooling fan

- Real-time telemetry via Traxxas Link^™

- 3-LED status indicators

- Powered accessory ports

- 10-gauge silicone wire

- Patented Traxxas High-Current Connectors

Velineon^® 2000 kV Brushless Motor

- 4-pole 2000 kV brushless motor

- 5mm output shaft

- Finned can for better heat dissipation

- Aluminum motor cradle mount

- Supports entire motor

- Reduces flex for longer gear life

Up to 70+ mph with Two 3s LiPo Batteries
Traxxas Stability Management^® (TSM)

- Improves straight line acceleration and braking on low-traction surfaces

- Never dulls throttle or slows the truck

- Adjusts from off to 100% assistance from the transmitter

TQi^™ 2.4 GHz High Output Radio System

- TQi^™ 2-channel transmitter

- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

- Programmable multi-function knob

- Adjustable steering and throttle percentage (dual rates)

- Adjustable steering and throttle sensitivity (exponential)

- Adjustable steering and throttle end points

- 5-channel micro receiver (6533) with fail-safe security

- Patented waterproof receiver box with easy-access plug

Drivetrain

- Heavy-duty steel driveshafts

- Large 8 mm steel stub axles

- Steel dogbone center driveline

- Protective rubber boots on differential inputs

Transmission

- Mod-1 pinion and spur gears

- Fixed gear mesh system

- Torque-Biasing Center Drive

Differentials

- Heavy-duty sealed 4-gear design

- Large scale steel ring and pinion gears

- Oversize 8 mm output shafts

- Steel drive cups

- Easy-access bulkheads

Oil-filled GT-Maxx^® Shocks

- Longer rear shocks for more travel

- Machined aluminum threaded body

- Extra-large bore and capacity

- Large-diameter damper shaft

- Lower cartridge with dual X-rings

- Height-adjustable spring retainer

- Lower spring perches bolted on

Suspension

- Performance-optimized geometry

- Ultra-tough composite arms

- Made from our strongest cold-weather material

- Molded insert for clean look

- Rear rock deflectors

- Press-in hinge pins to reduce play

- Oversize molded toe and camber links

- Heavy-duty C-hubs

- Stronger than conventional designs

- Require no adjusments

- Multiple mounting points for suspension tuning

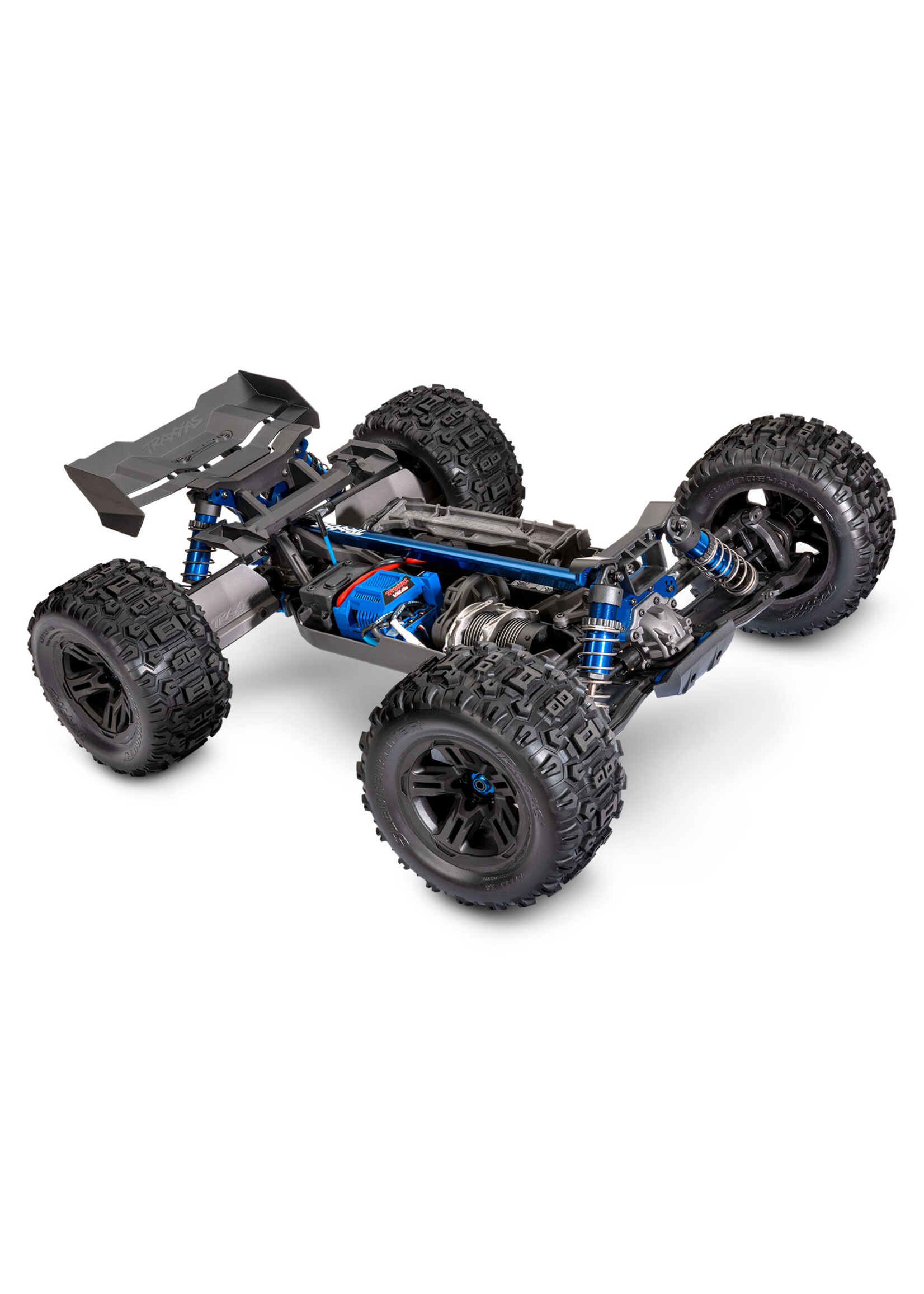

Chassis

- 3.2 mm ribbed aluminum chassis

- Formed edges for improved strength

- Thick T-Bar^™ for added rigidity

- Stronger than round bars

- High-strength buttressing on shock towers

- Ultra-thick 5 mm 6061-T6 aluminum shock towers

- Rugged locking battery compartment with quick-release door

- Low-CG design for improved handling

- Interlocking components for tight tolerances

- Tough front and rear bumpers double as skid plates

- Hidden wire management for clean appearance

ProGraphix^® Body

- Clipless body mounting system

- Rigid internal frame

- Molded body reinforcements for tear-through protection

- Protective roof skids

- Rugged high-downforce rear wing

Wheels and Tires

- Huge 6.7″ Belted Sledgehammer^® all-terrain tires

- Virtually eliminates ballooning at high speeds

- Open tread block design

- 2-piece foam insert

- Tough 3.8″ black wheels

- Splined 17 mm aluminum axle hubs

Steering

- High-throw bellcrank steering design

- Heavy-duty servo saver with aluminum posts

- Metal servo horn

- Powerful 2275 metal gear servo

- 347 oz-in torque

- Fully waterproof

Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating

Truck Specs:

Length (including wing):	23.78 inches (604 mm)
Front Track:	18.10 inches (459 mm)
Rear Track:	18.10 inches (459 mm)
Ground Clearance:	1.95 inches (50 mm)
Weight (no battery):	12.74 pounds (5.77kgs)
Height (overall):	8.43 inches (214 mm)
Wheelbase:	15.10 inches (384 mm)
Shock Length (front):	5.12 inches (128 mm)
Shock Length (rear):	5.67 inches (144 mm)
Tire Diameter:	6.7 x 3.3 inches (170 mm x 84 mm)
Wheel Diameter:	3.8 inches (97 mm)
Speed Control:	Velineon^® VXL-6s (3485)
Motor (electric):	Velineon^® 2000 kV Brushless
Overall Drive Ratio:	17.2 (13/52 motor pinion and spur gear)
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	Module 1.0
Chassis Structure/Material:	3.2 mm aluminum plate
Brake Type:	Electronic
Drive System:	Shaft-driven 4WD
Steering:	Double-shear bellcrank w/metal servo arm
Wheels & Tires:	3.8″ wheels, pre-glued belted Sledgehammer^® Tires & foam inserts; 6.7x3.8
Radio System:	2-Channel, TQi^™ 2.4 GHz Transmitter with TSM^® receiver
Servo:	2275 Waterproof, metal-gear (347 oz-in torque)
Top Speed:	70+ MPH with two 3s LiPo batteries and optional gearing (sold separately)
Skill Level:	4
Battery Tray:	Narrow configuration (L/W/H): 181 mm x 50 mm x 29/37/45 mm* Wide configuration (L/W/H): 160 mm x 57 mm x 29/37/45 mm*
Required Batteries:	4 “AA” (transmitter), Vehicle (see battery finder)

Motor Specs:

Type:	2000 kV sensorless brushless
Weight:	14.32 ounces (406 g)
Length:	2.97 inches (76 mm)
Diameter:	1.65 inches (42 mm)
Connector Type:	Traxxas 6.5 mm bullet connectors

ESC Specs:

Input Voltage (cells):	4s–6s LiPo (max: 25.2 volts)
Case Size:	2.28 inches (58 mm) x 2.83 inches (72 mm) x 1.81 inches (46 mm)
Weight:	7.30 ounces (207 g)
BEC Voltage:	6.0 volts
BEC Current Continuous:	10 amps
BEC Current Peak:	20 amps
Reverse Delay:	Yes, with lockout
Ports:	RX input, auxiliary fan, Traxxas accessory port0

Servo Specs:

Motor Type:	Brushed
Operating Voltage:	6.0 V	7.4 V
Torque:	347 oz-in	486 oz-in
Speed:	0.25 sec/60°	0.16 sec/60°
Weight:	67 g
Gears:	Metal
Output Spline:	25T
Case:	Plastic top/bottom, anodized aluminum center
Controller:	Digital
