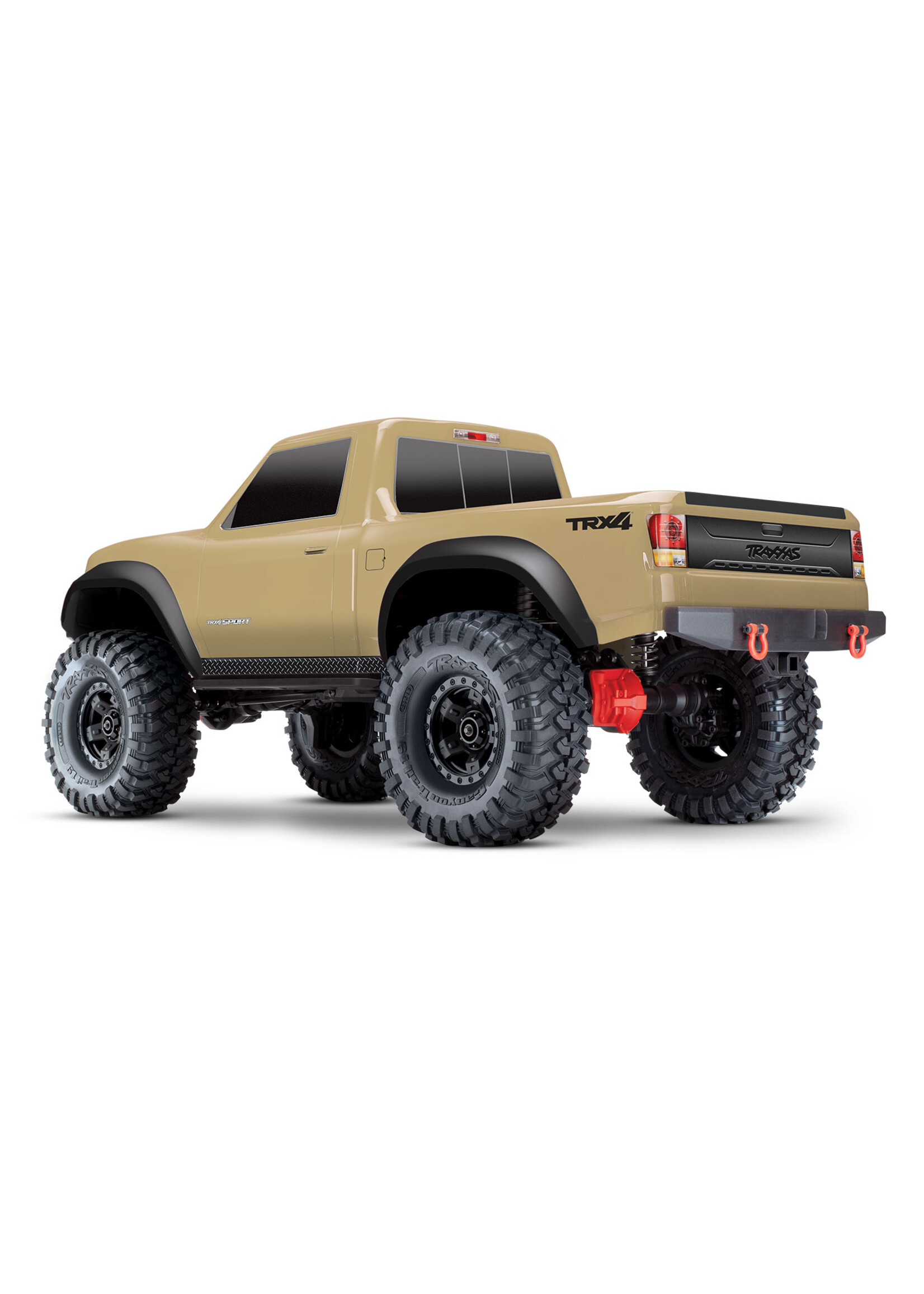

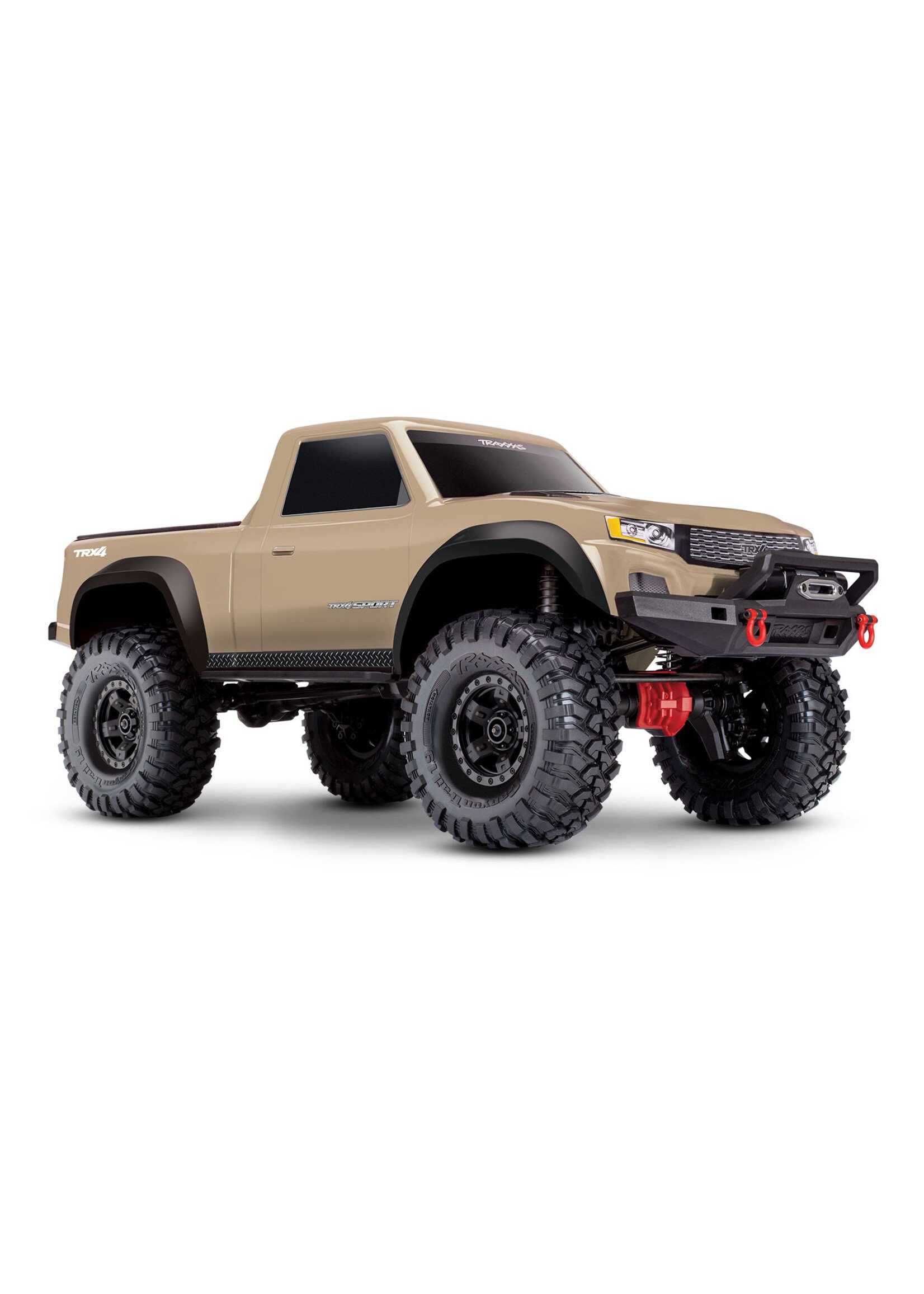

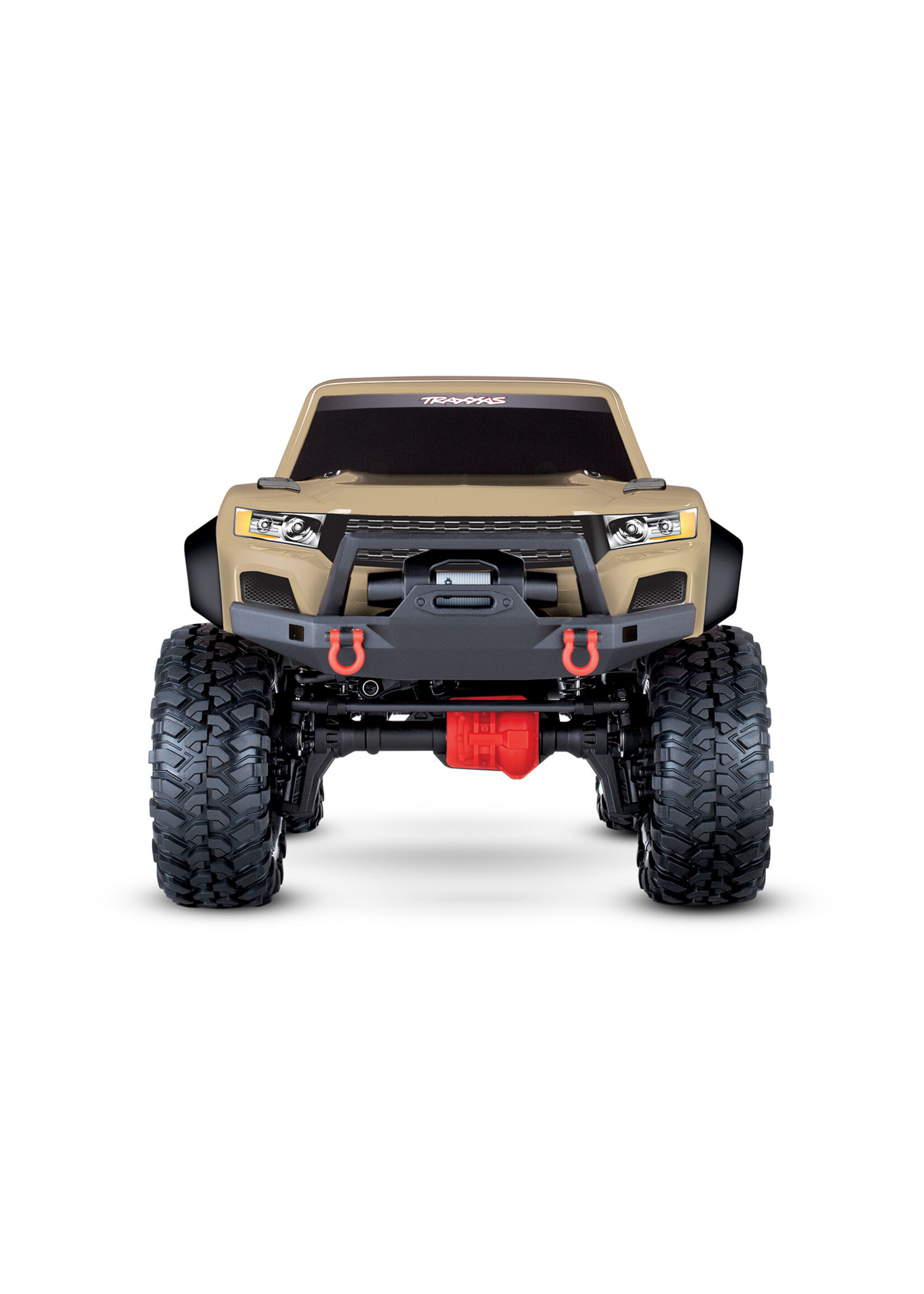

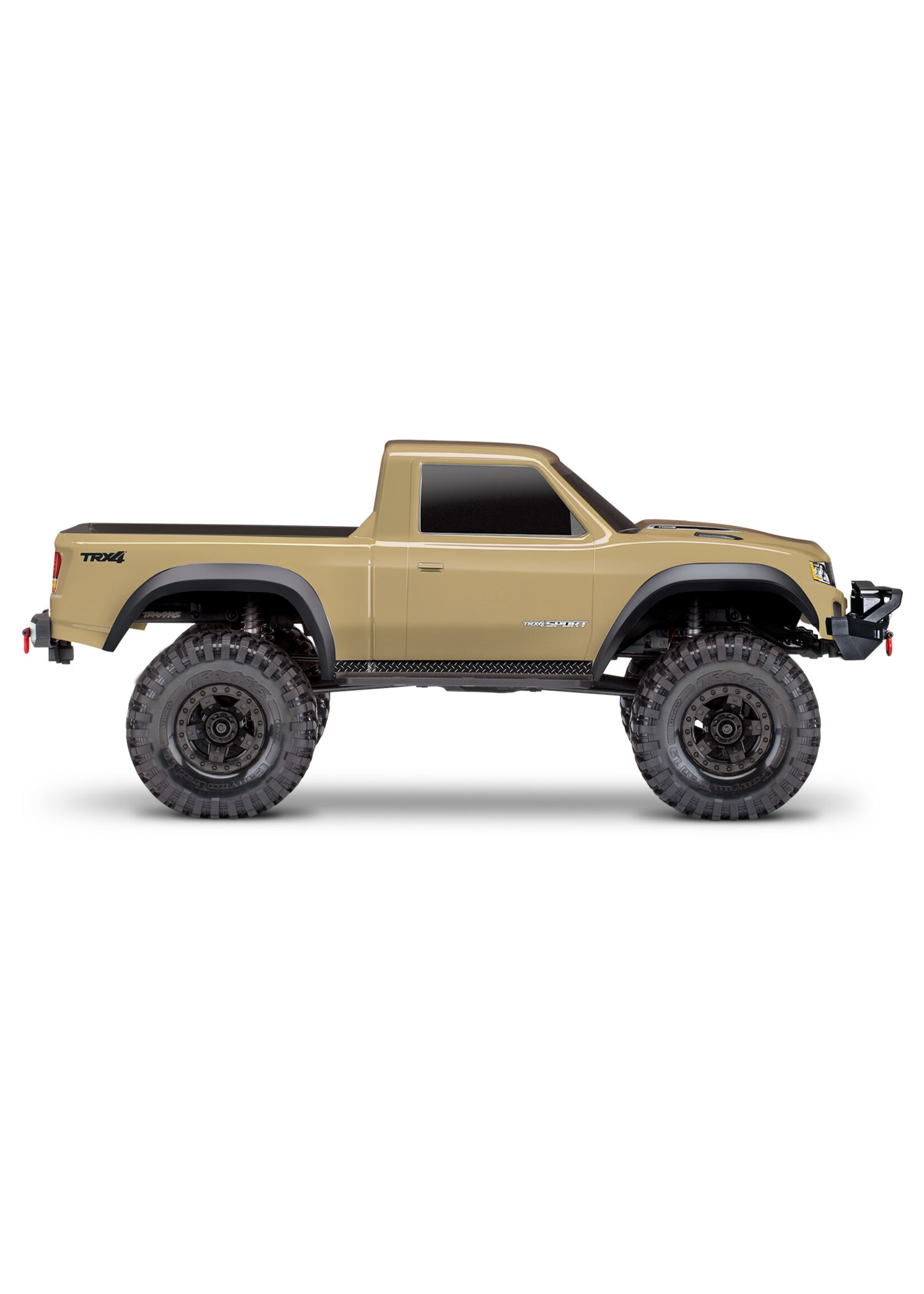

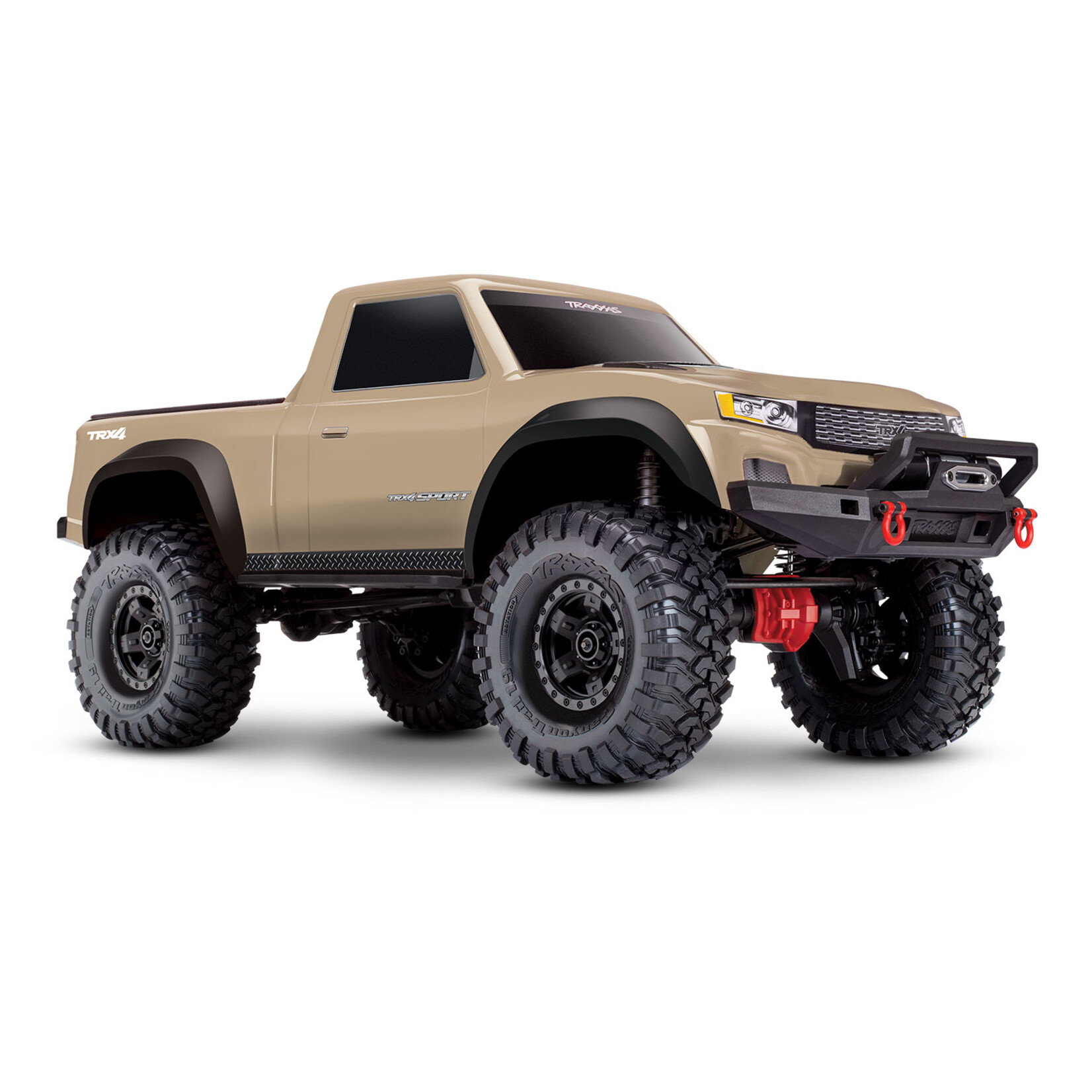

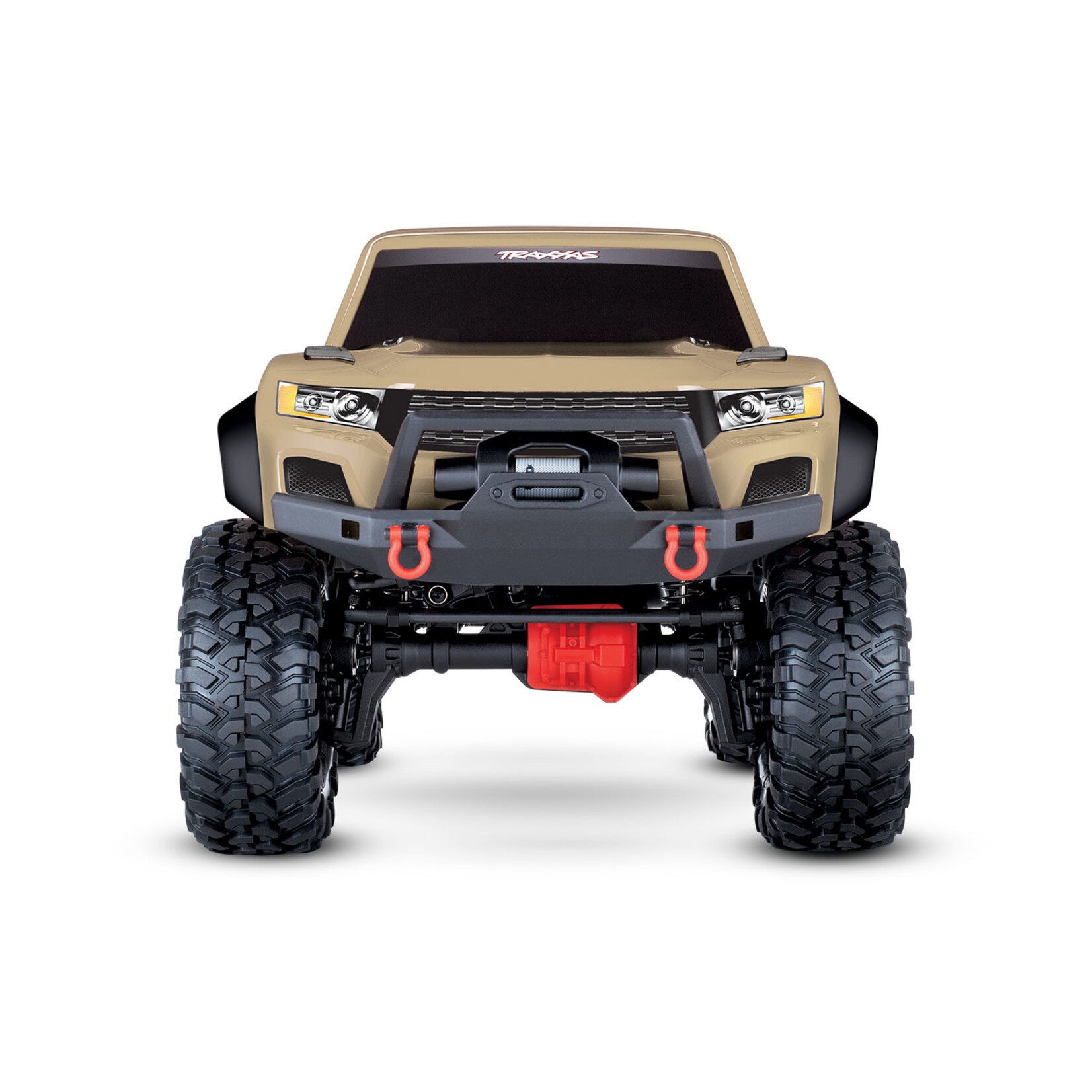

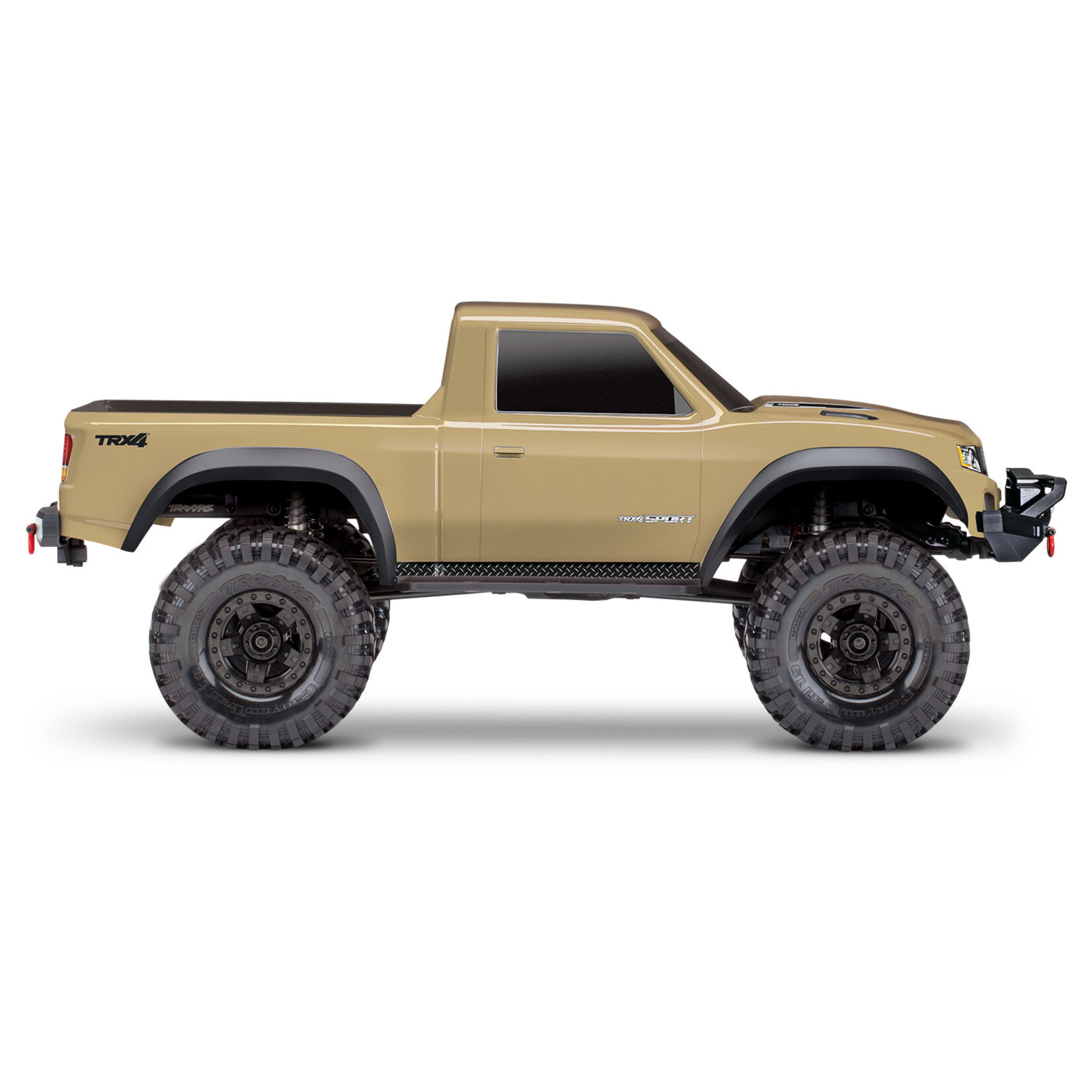

Traxxas 822244TAN - TRX-4 Sport Clipless Crawler - Tan
TRX-4® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a clipless lightweight pickup truck body for a leaner, performance-focused truck. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.
Features:
- Lightweight Pickup Truck Body
Keeps the CG low for improved climbing stability
Low profile bumpers for increased clearance
Red differential covers and D-rings
Clipless design for smooth body appearance
Fast and easy removal for ultimate convenience
- Trail-Tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Powerful Titan® 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts

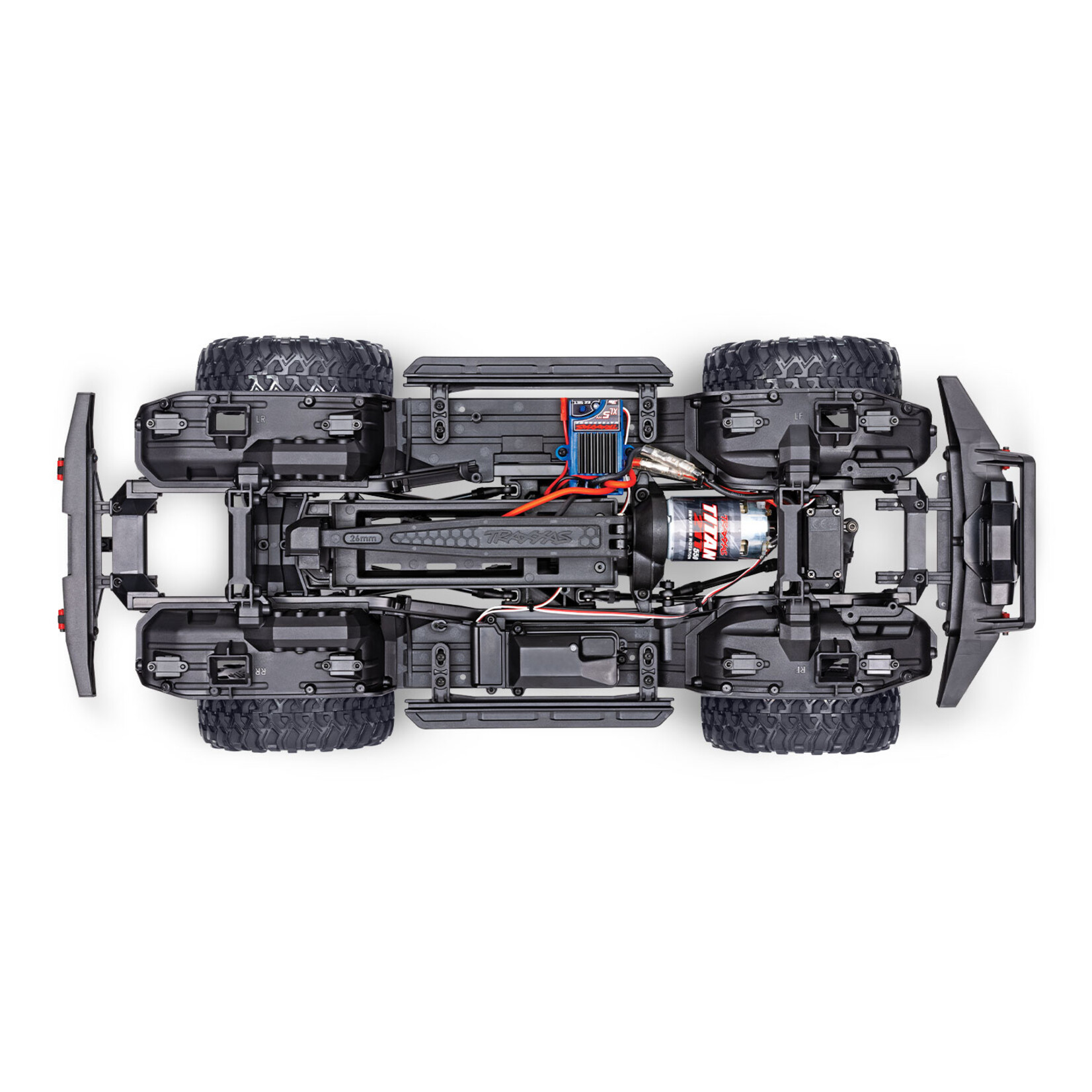

- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Full-time shaft driven 4-wheel drive
- Tough 6mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear differentials
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4mm threaded ends
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Rugged black 5-spoke wheels
- Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- TQ™ 2.4 GHz 2-channel transmitter
- Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
Specs:
| Length: |
21.93 inches (557 mm) |
| Front Track: |
9.78 inches (249 mm) |
| Rear Track: |
9.78 inches (249 mm) |
| Ground Clearance: |
3.14 inches (80 mm) |
| Weight: |
5.79 pounds (2.63 kg) |
| Height: |
9.47 inches (241 mm) |
| Wheelbase: |
12.28 inches (312 mm) |
| Approach Angle: |
58.82° |
| Departure Angle: |
45.83° |
| Breakover Angle: |
59° |
| Front Shock Length: |
3.54 inches (90 mm) |
| Rear Shock Length: |
3.54 inches (90 mm) |
| Front Wheels: |
1.9″ x 1.02″ (49 x 26 mm) |
| Rear Wheels: |
1.9″ x 1.02″ (49 x 26 mm) |
| Front Tires: |
4.64″ x 1.89″ (118 x 48 mm) |
| Rear Tires: |
4.64 x 1.89″ (118 x 48 mm) |
| Hex Size: |
12 mm |
| Speed Control: |
XL-5™ HV |
| Motor (electric): |
21T reverse rotation |
| Transmission: |
Single speed |
| Gear Pitch: |
32 pitch |
| Differential Type: |
Spool (no differential) |
| Chassis Structure / Material: |
Steel ladder frame with Nylon composite crossmembers |
| Brake Type: |
Electronic “Hill Hold” |
| Drive System: |
Shaft driven 4WD |
| Steering: |
Chassis mounted servo |
| Servo: |
2075X metal gear |
| Transmitter: |
TQ™ 2.4 GHz 2-channel transmitter |
| Receiver: |
6519 |
| Skill Level: |
1 |
| Battery Tray: |
158.75 L x 47 W x 23/26 mm H |
