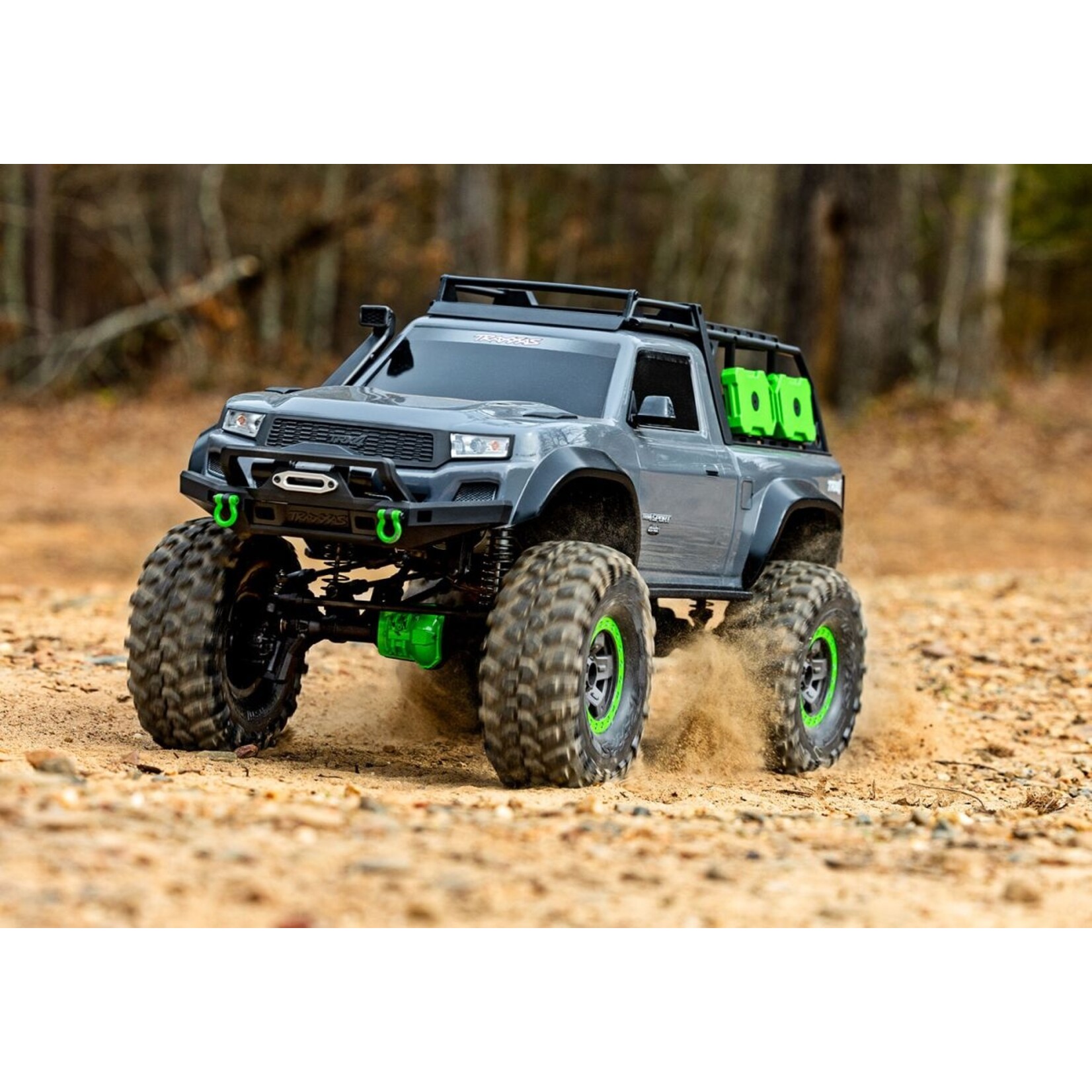

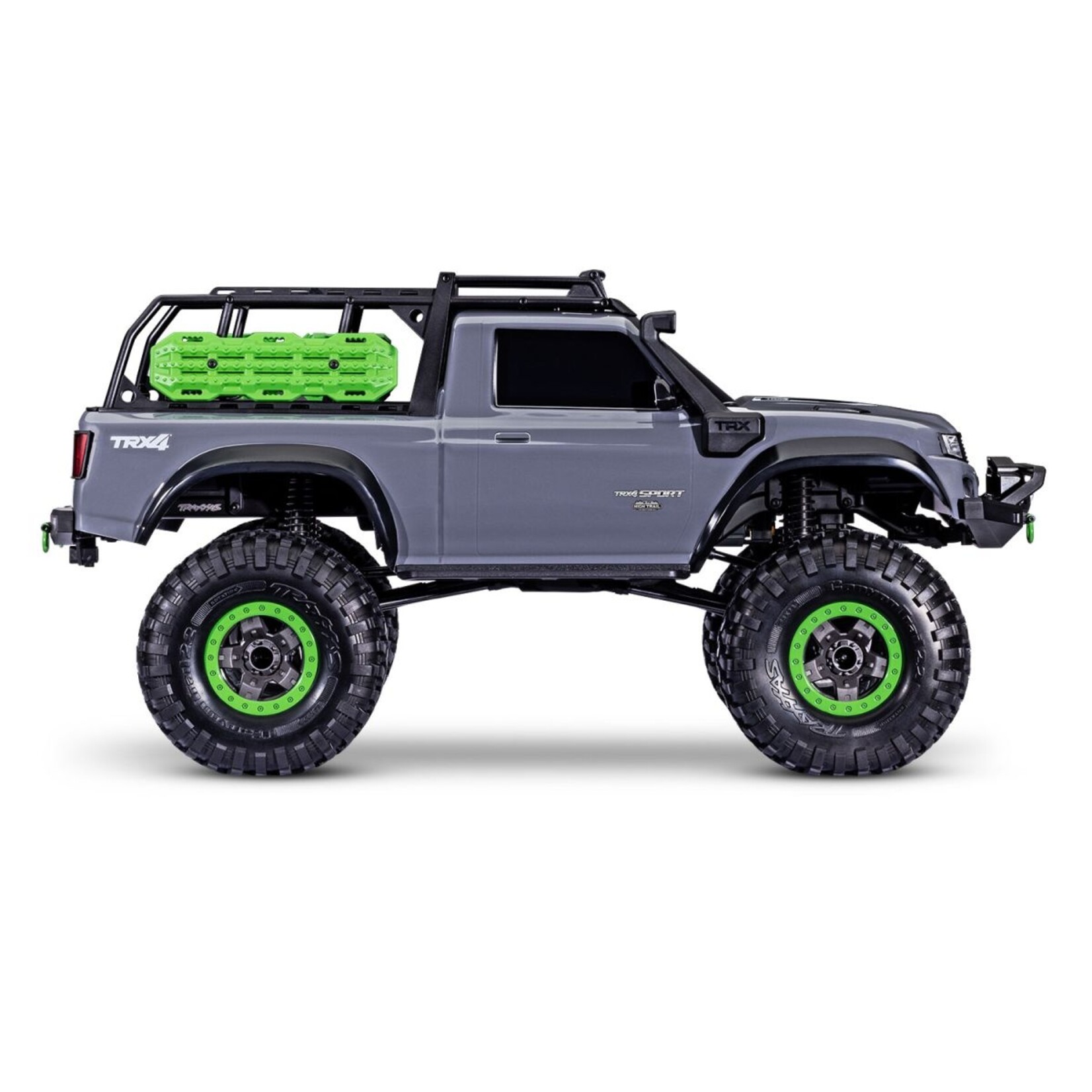

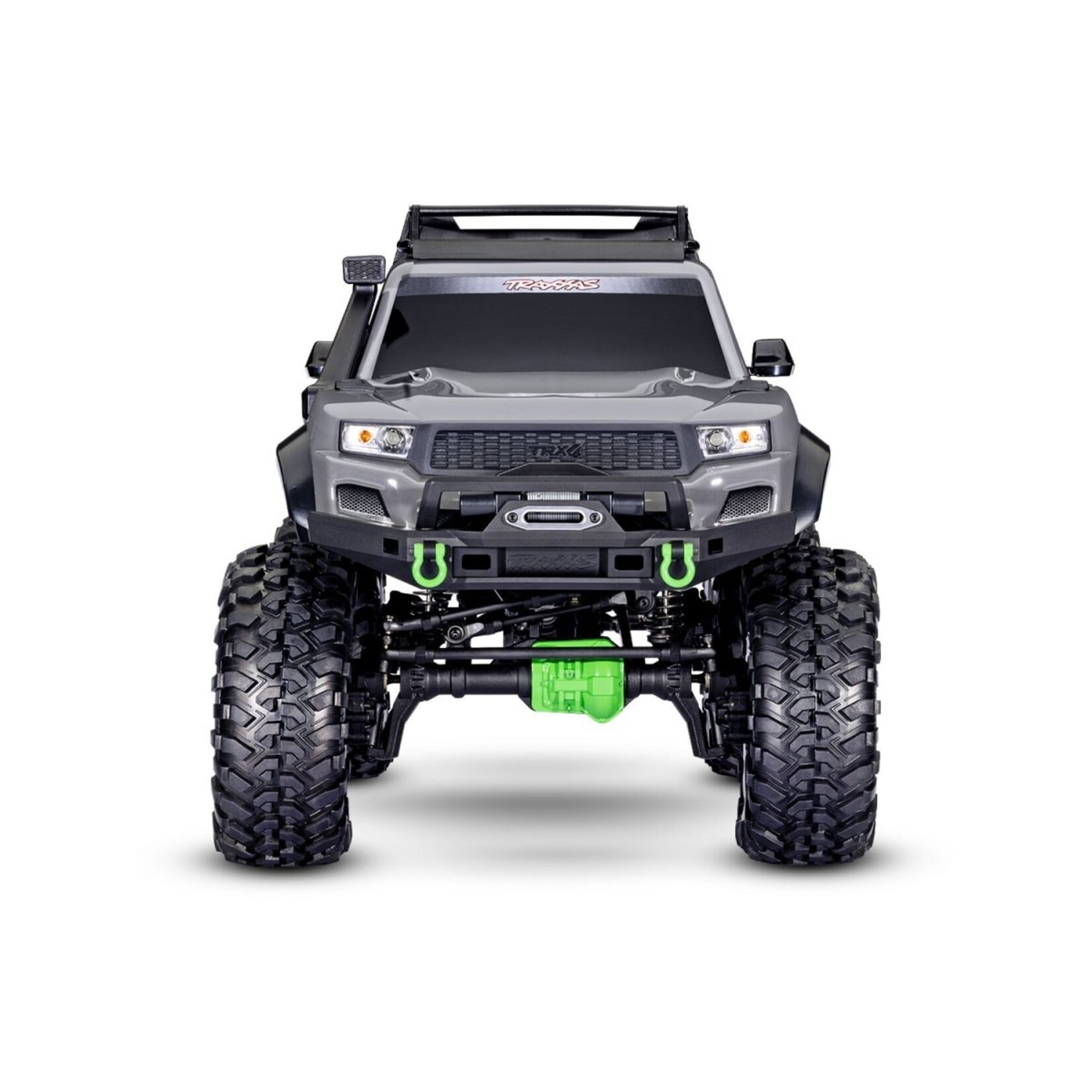

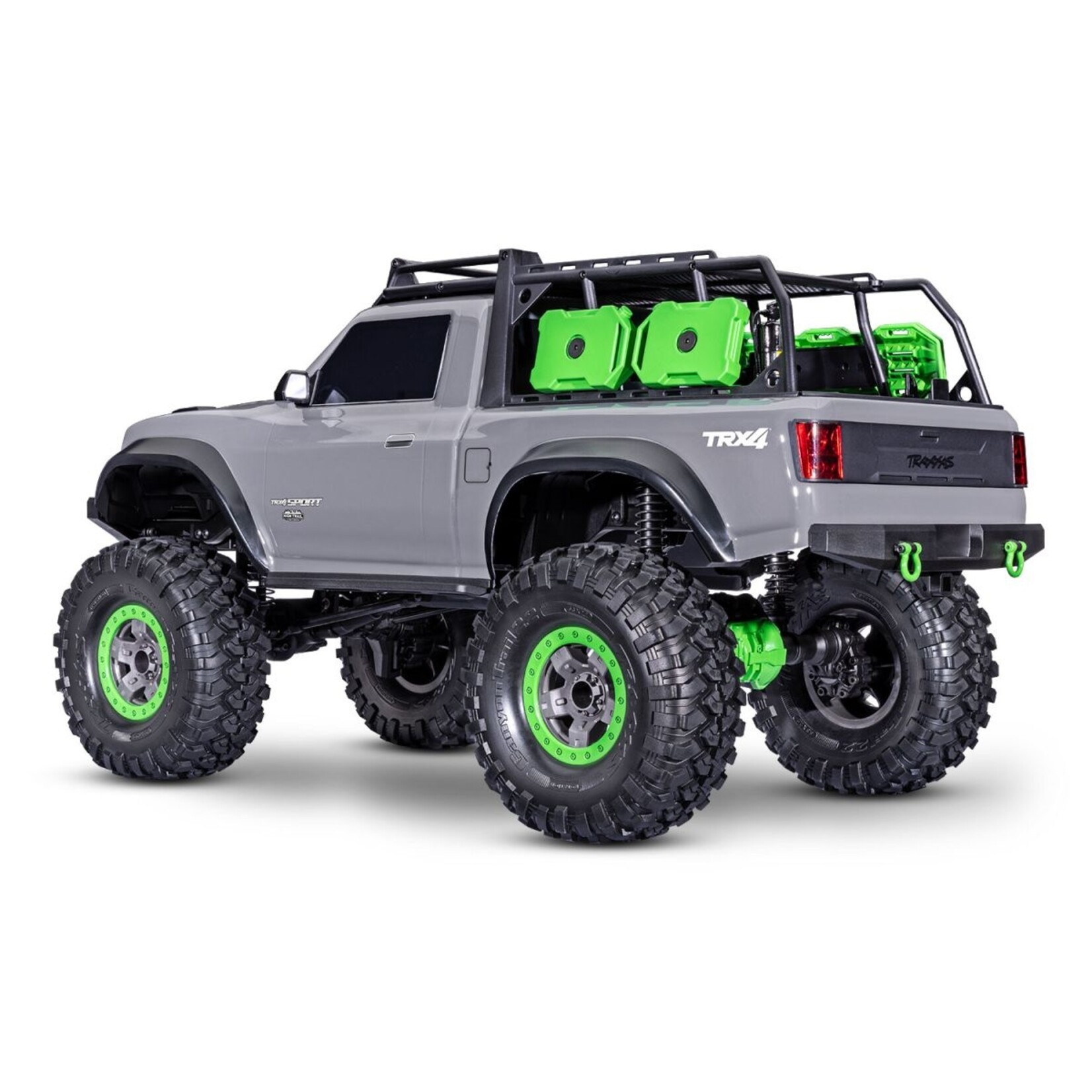

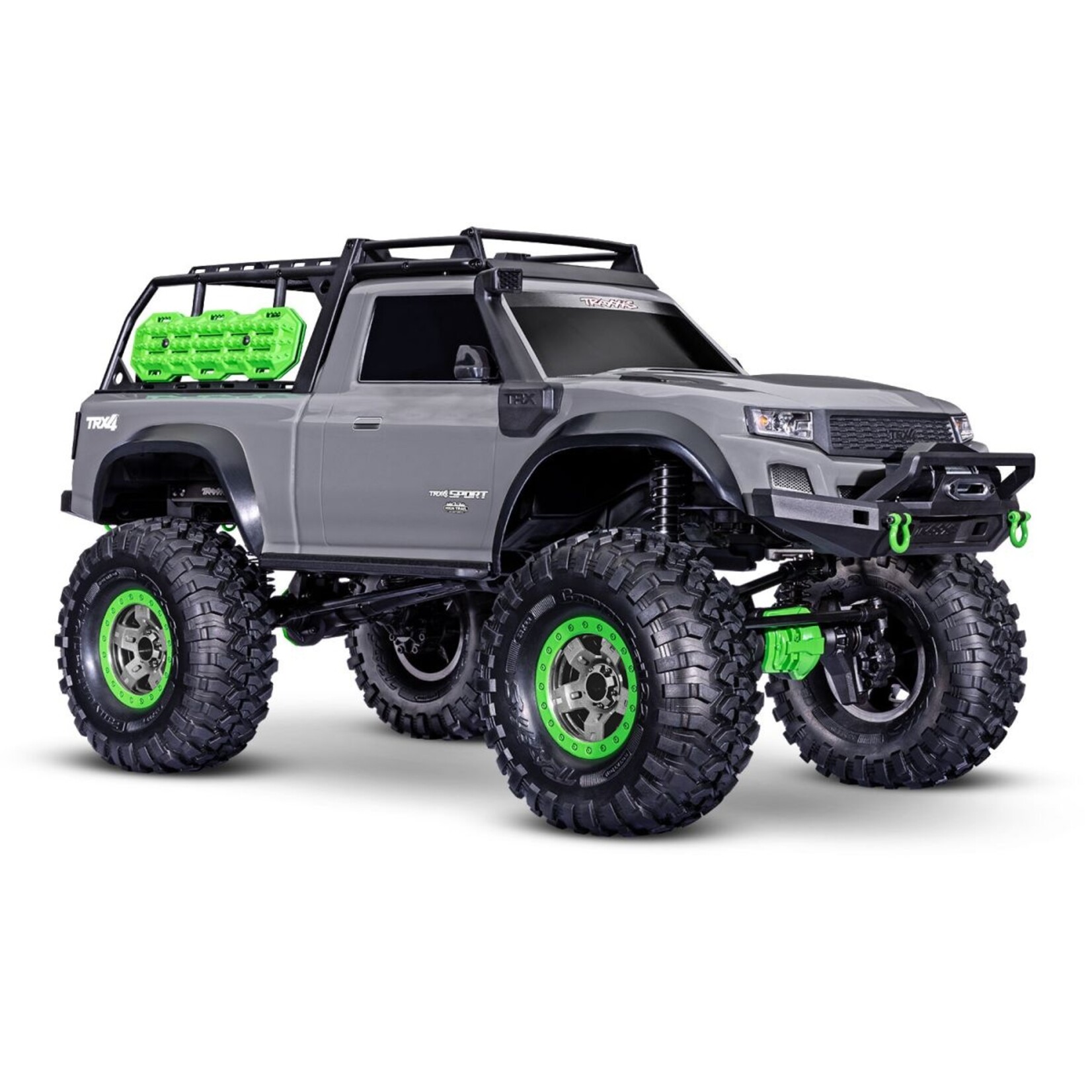

Traxxas 820444GRAY - TRX-4 Sport, High Trail Edition - Gray
Even the toughest off-road challenges have met their match with TRX-4® Sport High Trail™ Edition. A factory-installed Long Arm Lift Kit amplifies TRX-4 Sport’s performance-focused all-terrain capability with even more ground clearance. High-angle bumpers and fully-locked axles provide nearly unstoppable climbing versatility with the show-stopping looks of the High Trail Edition’s rugged Expedition Rack and scale accessories.
Lifted Performance
The High Trail Edition TRX-4 Sport gets you up and over obstacles with a factory-installed Long Arm Lift Kit for over an inch more ground clearance than the standard TRX-4. Oversize Canyon Trail tires ride on 2.2″ black 5-spoke wheels to tame the most technical trails with extreme all-terrain traction.
Clipless Body Mounting
New to TRX-4 Sport, the High Trail Edition’s clipless body combines clean flowing lines with secure latching convenience. TRX-4 Sport’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.
Scale Accessories
TRX-4 High Trail Edition comes fully outfitted for adventure with a tough Expedition Rack and molded accessories. A replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and fuel canisters provide extreme scale detail with inner fenders for a realistic appearance.
Features:
- Tough, Lightweight Pickup Truck Body
- High-angle bumpers for increased clearance
- Molded grille and tailgate
- LED-ready headlights and tail lights
- Full Nylon composite wheel wells and floor pans
- Rugged Expedition Rack with detailed accessories
- Injection-molded snorkel and side mirrors
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
- Powerful Titan® 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Factory-Installed Long Arm Lift Kit
- Increases ground clearance over 1″
- Maintains precise steering geometry
- Accommodates oversize 2.2″ wheels and tires
- Full-length 1.5 mm steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
-Wire routing clips integrated into frame rails
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Locked front and rear axles
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steel servo horn
- Steering geometry corrected for bump steer
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
- Extended Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Extra-long aluminum bodies for greater articulation
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Oversize Wheels and Tires
- 2.2″ 5-spoke wheels with replica beadlock rings
- Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- TQ™ 2.4 GHz 2-Channel Transmitter
- Patented O-ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
Includes:
- TRX-4, Ready-To-Drive® model
- XL-5 HV waterproof electronic speed control
- Titan® 21T reverse rotation motor
- TQ™ 2.4GHz radio system
- High quality maintenance tools
Needed To Complete:
- TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
- Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).
- Four AA alkaline batteries for the transmitter.
Specs:
| Length: |
22 inches (564mm) |
| Front Track: |
10.6 inches (270mm) |
| Rear Track: |
10.6 inches (270mm) |
| Center Ground Clearance: |
4 inches (99mm) |
| Weight (w/o battery): |
7.04lbs (3.20kg) |
| Height (overall): |
10.8 inches (275mm) |
| Wheelbase: |
12.3 inches (312mm) |
| Approach Angle: |
62.8° |
| Departure Angle: |
54.7° |
| Breakover Angle: |
79.3° |
| Front Shock Length: |
4.33 inches (110mm) |
| Rear Shock Length: |
4.33 inches (110mm) |
| Front Wheels: |
2.2 x 1.34 inches (56 x 34mm) |
| Rear Wheels: |
2.2 x 1.34 inches (56 x 34mm) |
| Front Tires: |
5.3 x 2.14 inches (135 x 54mm) |
| Rear Tires: |
5.3 x 2.14 inches (135 x 54mm) |
| Hex Size: |
12mm |
| Speed Control: |
XL-5 HV |
| Motor (electric): |
21T Reverse Rotation |
| Transmission: |
Single Speed |
| Gear Pitch: |
32P |
| Differential Type: |
Spool (no differential) |
| Chassis Structure / Material: |
Steel Ladder Frame with Nylon Composite Crossmembers |
| Brake Type: |
Electronic “Hill Hold” |
| Drive System: |
Shaft Driven 4WD |
| Steering: |
Chassis Mounted Servo |
| Servo: |
2075X Metal Gear |
| Transmitter: |
TQ™ 2.4 GHz 4-Channel Transmitter |
| Receiver: |
6533 |
| Skill Level: |
1 |
| Battery Tray: |
158.75 L x 47 W x 23/26mm H |
