Even the toughest off-road challenges have met their match with TRX-4^® Sport High Trail™ Edition. A factory-installed Long Arm Lift Kit amplifies TRX-4 Sport’s performance-focused all-terrain capability with even more ground clearance. High-angle bumpers and fully-locked axles provide nearly unstoppable climbing versatility with the show-stopping looks of the High Trail Edition’s rugged Expedition Rack and scale accessories.

Lifted Performance

The High Trail Edition TRX-4 Sport gets you up and over obstacles with a factory-installed Long Arm Lift Kit for over an inch more ground clearance than the standard TRX-4. Oversize Canyon Trail tires ride on 2.2″ black 5-spoke wheels to tame the most technical trails with extreme all-terrain traction.

Clipless Body Mounting

New to TRX-4 Sport, the High Trail Edition’s clipless body combines clean flowing lines with secure latching convenience. TRX-4 Sport’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.

Scale Accessories

TRX-4 High Trail Edition comes fully outfitted for adventure with a tough Expedition Rack and molded accessories. A replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and fuel canisters provide extreme scale detail with inner fenders for a realistic appearance.

Name: TRX-4 Sport High Trail Edition
Type: Trail / Crawler
Skill Level: 1
Chassis: Steel ladder frame
Scale: 1/10
Weight: 7.04 lb (3.20 kg)
Length: 22 inches (564 mm)
Width: 10.63 inches (270 mm)
Front Track: 10.63 inches (270 mm)
Rear Track: 10.63 inches (270 mm)
Height: 10.8 inches (275 mm)
Wheelbase: 12.28 inches (312 mm)
Center Ground Clearance: 4 inches (99 mm)
Driveline: Shaft-driven 4WD
Transmission: Single speed
Differential Type: Spool (no differential)
Gear Pitch: 32 pitch
Steering Servo: 2075X metal gear, digital high-torque waterproof
Radio System: TQ™ 2.4 GHz 2-channel transmitter
Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm

MOTOR SPECS

Name: Titan® 550 21T reverse rotation
Motor Type: High-torque brushed motor
Weight: 390 g (13.76 oz)
Length: 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length
Diameter: 1.532″ (39 mm diameter)
Shaft Size: 3 mm
Connector Type: Bullet

ESC SPECS

Name: XL-5™ HV
ESC Type: Brushed
Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
Weight: 2.6 ounces (74 g)
Motor Connectors: Bullet
Battery Connectors: Traxxas High-Current Connector
Power Wire: 14 gauge

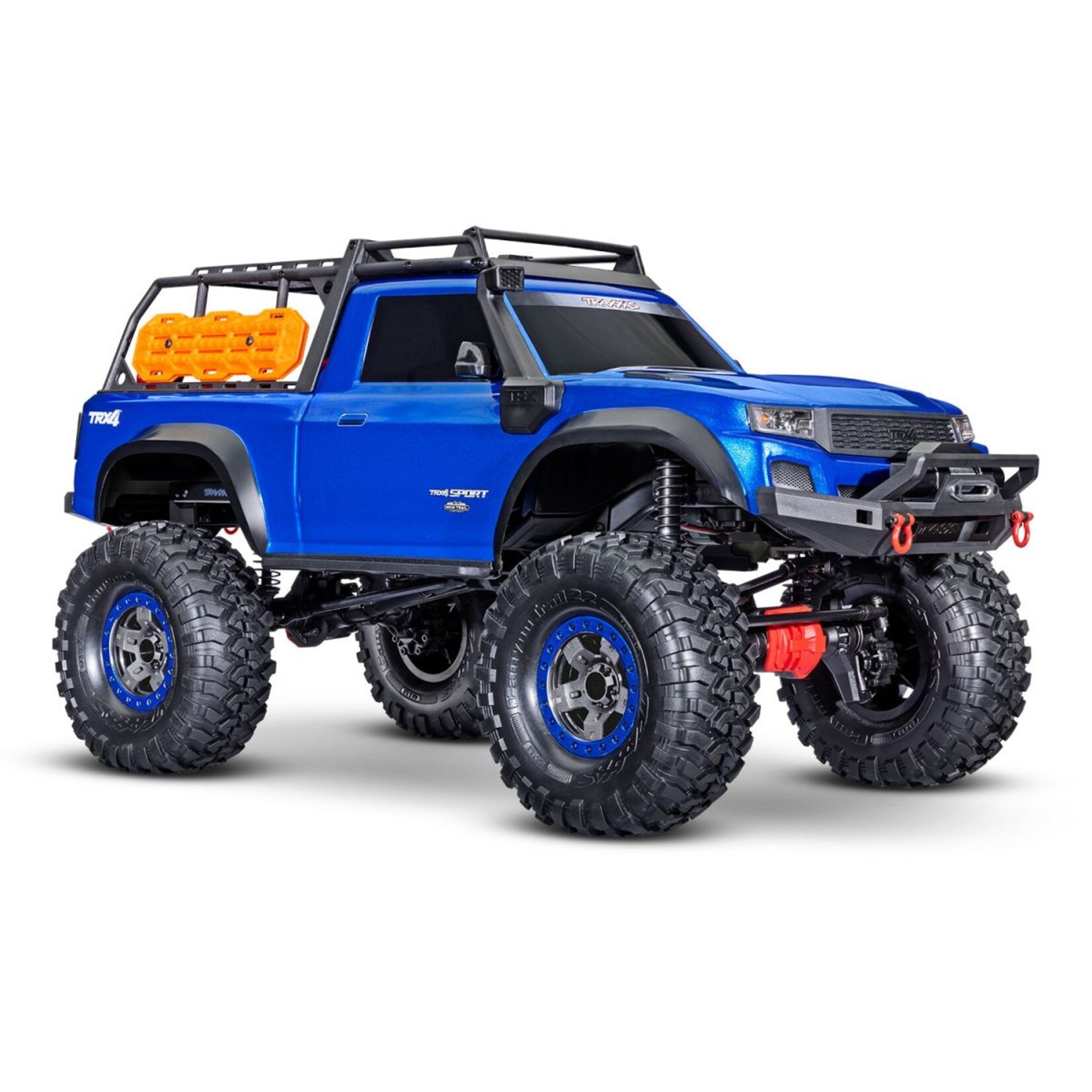

MODEL 82044-4: TRX-4® Sport High Trail® Edition with Long Arm Lift Kit: 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Explore®, with TQ™ 2.4 GHz 2-channel radio system, XL-5™ HV speed control, and Titan® 550 motor.
