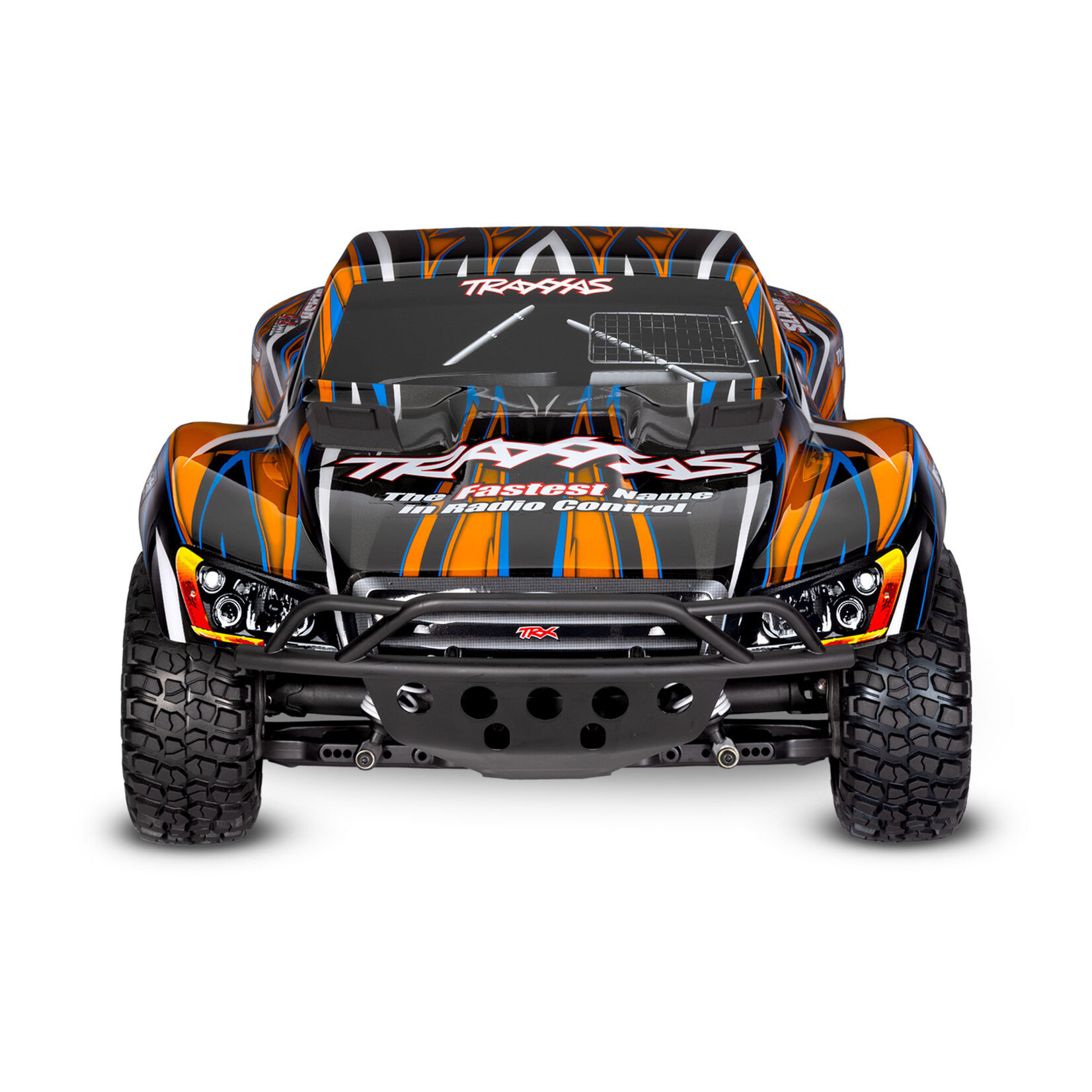

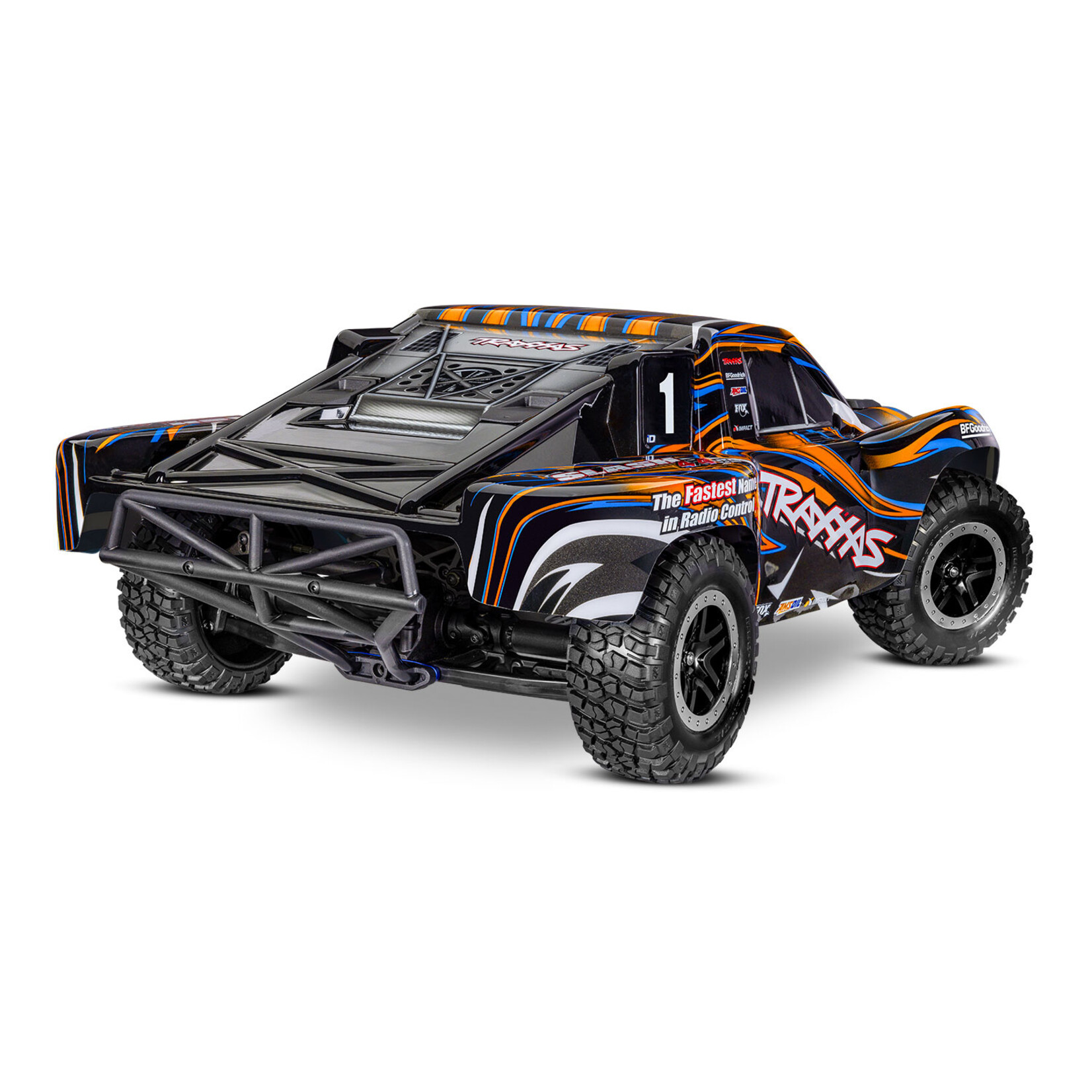

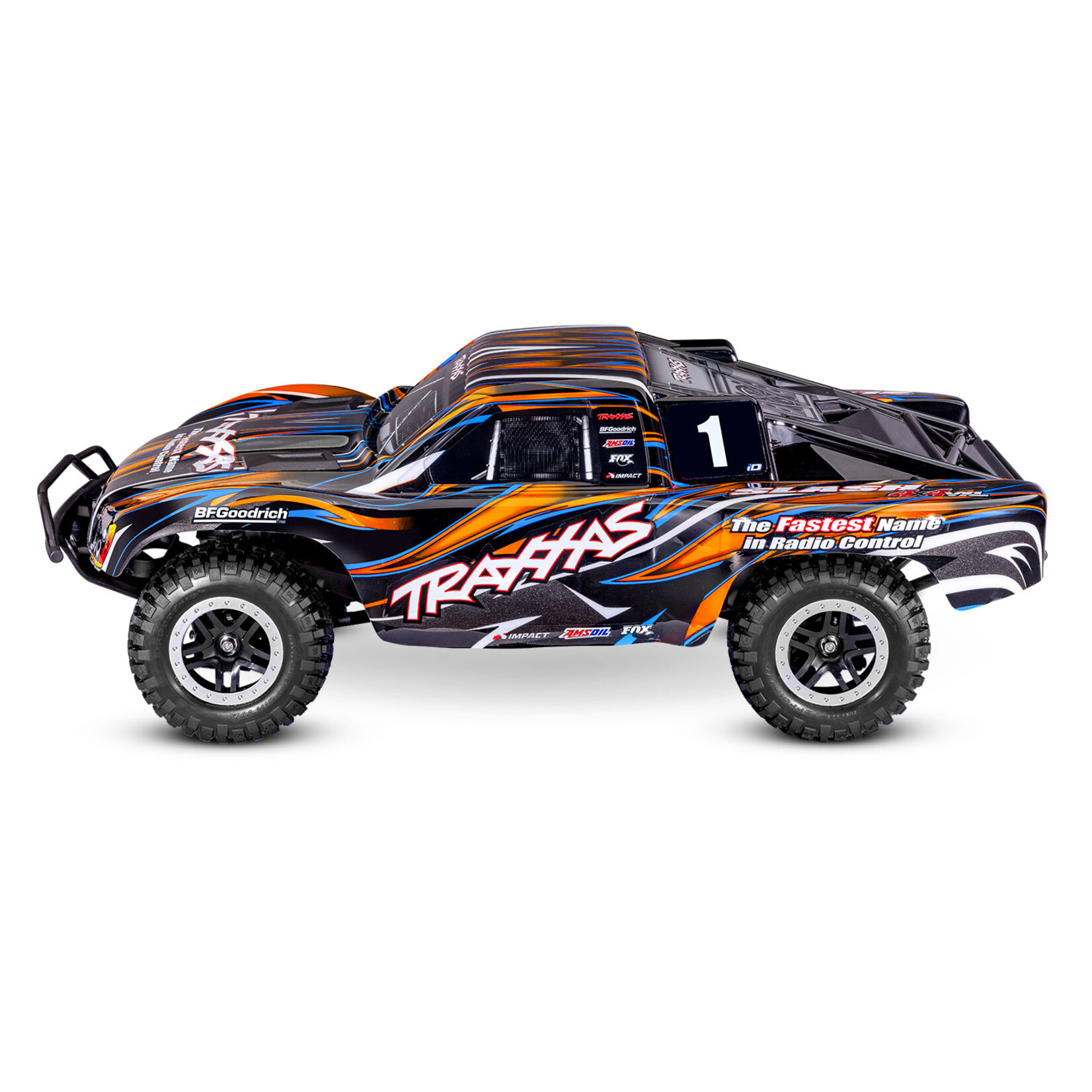

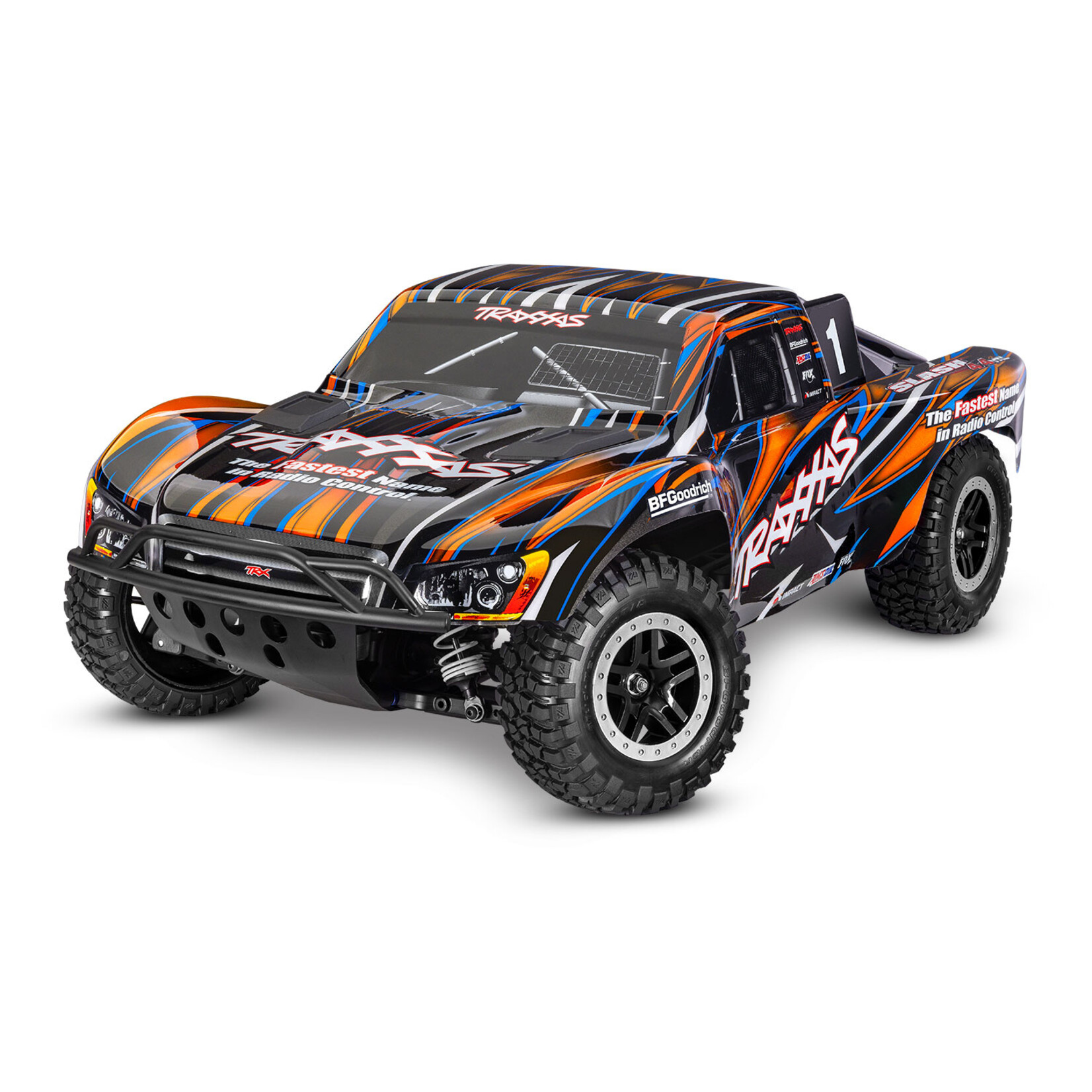

Traxxas 683864ORNG - Slash 4X4 VXL HD Short Course Truck - Orange

Traxxas 683864ORNG - Slash 4X4 VXL HD Short Course Truck - Orange

Traxxas Slash® set the standard for durability, performance, and fun by which all other short course trucks are measured. Now Slash 4X4 VXL includes a factory-installed Extreme Heavy Duty Upgrade Kit to take brutal punishment in stride. Innovations like TSM®, modular chassis design, and ultra-efficient shaft drive complement Slash’s track-tested precision. Slash 4X4’s extreme Velineon® brushless horsepower provides dirt-roosting torque and screaming 60+ mph speed with a TQi™ radio system to keep everything under precise control.

Extreme Heavy Duty Upgrade Kit

Slash's factory-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. Maxx-duty® driveshafts and HD suspension arms, along with upgraded shock towers and outer suspension components, make this is the strongest driveline ever offered in a Slash.

Track-Ready Performance

From races at the local track to backyard bash sessions, Slash 4X4 is Ready-To-Race® right out of the box. Slash’s track-bred chassis features an integrated transponder mount and extended battery tray for optimum weight positioning. Slash gives you the winning edge with a fully adjustable steel-link suspension and tunable oil-filled differentials to put the power down smoothly.

Clipless Body Mounting

Slash 4X4’s tough clipless body holds firm no matter how rough the action gets. Heavy-duty latches grip the body tightly, but release in just seconds to access the chassis. Slash’s hidden latching system replaces time-consuming and inconvenient body clips with large, reinforced panels to resist pull-through damage.

Features:

Clipless Short Course Body

- Tough front and rear tube-style bumpers

- Body reinforcements to prevent pull-through damage

- Holds tight for intense action

- Quick and easy removal

- Smooth appearance with no body posts or clips

Extreme Heavy Duty Upgrade Kit Installed

- Strengthened C-hubs, axle carriers, steering blocks, and shock towers

- Maxx-duty^® driveshafts

- Oversize diameter

- 6 mm axles

- Steel wheel hexes

TQi^™ 2.4 GHz High Output Transmitter

- TQi 2-channel transmitter

- All-day comfort with precise long-range control

- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

- Programmable multi-function knob

- Adjustable steering and throttle percentage (dual rates)

- Adjustable steering and throttle sensitivity (exponential)

- Adjustable steering and throttle end points

- 5-channel micro receiver (6533) with fail-safe security

- Patented waterproof receiver box with easy-access plug

Velineon^® VXL-3s^™ Waterproof Electronic Speed Control

- Three Programmable Drive Profiles

- Sport Mode - Forward / Brake / Reverse

- Race Mode - Forward / Brake

- Training Mode^™ - 50% Forward / Brake / 50% Reverse (patented)

- Heat sink accepts accessory cooling fan (3340)

- Traxxas EZ-Set^® one-button setup

- Built-in two-stage low-voltage detection for LiPo batteries

- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)

- LiPo battery packs: 2-3 cells (7.4-11.1 volts)

Velineon^® 3500 Kv Brushless Motor

- Ultra high-temperature sintered Neodymium magnets

- Optimized for power and efficiency in 1/10th scale vehicles

- Low-maintenance design

- Efficient, high-speed ball bearings

- Precision-balanced rotor

- 3500 Kv

- Efficient ball bearings

- Brilliant blue-anodized finish

Traxxas Stability Management^® (TSM)

- Improves straight line acceleration and braking on low-traction surfaces

- Maintains steering composure to allow throttle-on powerslides

- Never dulls throttle or slows the truck

- Adjusts from off to 100% assistance from the transmitter

Steering

- Chassis-mounted 2075 servo

- Dual bellcrank design with integrated servo saver

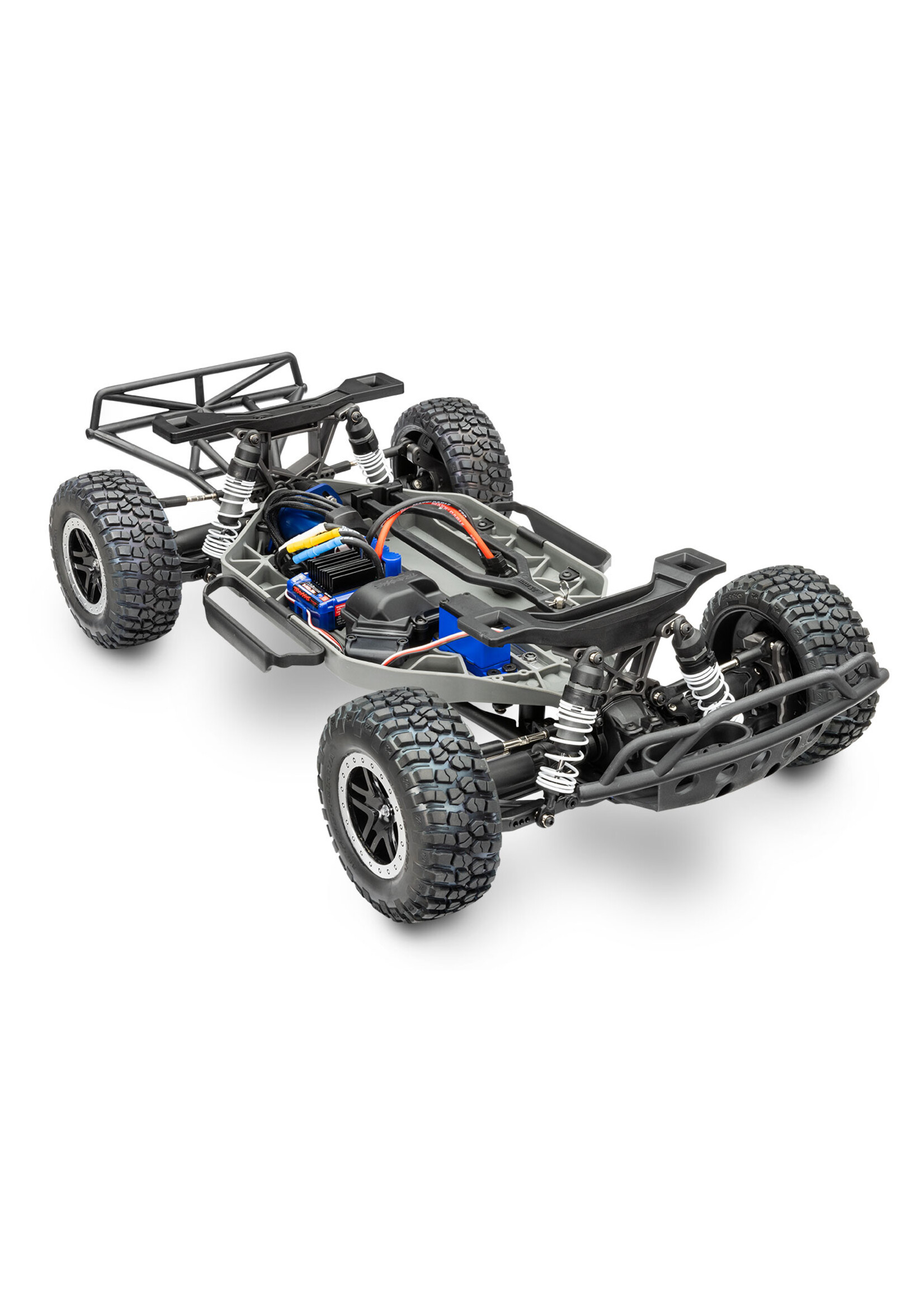

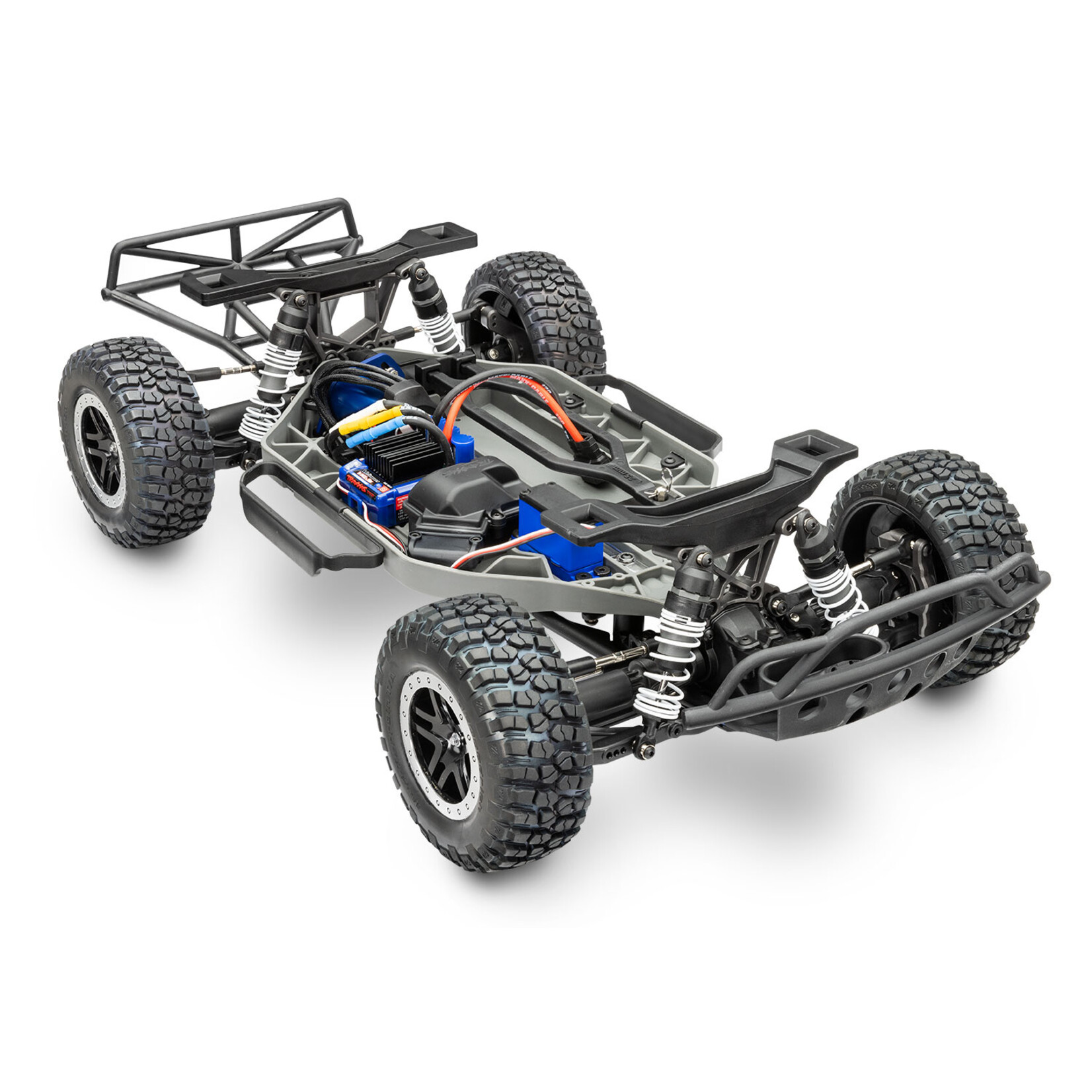

Chassis

- Extended modular composite tub design

- Secure battery hold-down latch

- Side nerf bars for impact resistance

Suspension

- Steel adjustable toe and camber links

- Heavy duty suspension arms

- Oil-filled Ultra Shocks

- White powder-coated progressive springs

Drivetrain

- Full-time shaft-driven 4-wheel drive

- Sealed steel gear front and rear differentials

- Large 32-pitch steel spur gear

Wheels and Tires

- Black Split-Spoke SCT wheels

- 2″ outer diameter, 3″ inner diameter

- Replica BFGoodrich^® Mud Terrain T/A^® Tires

Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating

Specs:

Length:	23.36 inches (568 mm)
Front Track:	11.65 inches (296 mm)
Rear Track:	11.65 inches (296 mm)
Center Ground Clearance:	2.83 inches (72 mm)
Weight (no battery):	5.82 pounds (2.41 kg)
Height (overall):	7.60 inches (193 mm)
Wheelbase:	12.75 inches (324 mm)
Shock Length (front):	3.45 inches (88 mm) - Long
Shock Length (rear):	3.98 inches (101 mm) - XX-long
Tires:	BFGoodrich^® Mud Terrain T/A^®
Tire Diameter:	4.3″ x 1.7″ (109 mm x 43 mm)
Wheels (front/rear):	Black Split-Spoke SCT wheels
Wheel Diameter:	2.2 inches (56 mm) (outer) 3.0 inches (76 mm) (inner)
Speed Control:	Velineon^® VXL-3s^™
Motor (electric):	Velineon^® 3500 Kv sensorless brushless
Overall Drive Ratio:	11.82:1
Differential Type:	Hardened steel bevel, sealed, limited slip
Gear Pitch:	32
Chassis Structure/Material:	Modular composite tub
Drive System:	Shaft-driven 4WD
Steering:	Dual bellcrank with integrated servo saver
Radio System:	TQi^™ 2.4 GHz (2-channel)
Servo:	Waterproof digital 2075 servo (125 oz-in torque)
Skill Level:	1
Battery Compartment (L/W/H):	165 mm x 50 mm x 23/26 mm
Required Batteries:	4 “AA” (transmitter), Vehicle (see battery finder)

Orange / Ready to Run / RTR / Short Course Truck / VXL
