Traxxas 363344 - 1/10 R5 Bigfoot BL-2S

Traxxas 363344 - 1/10 R5 Bigfoot BL-2S

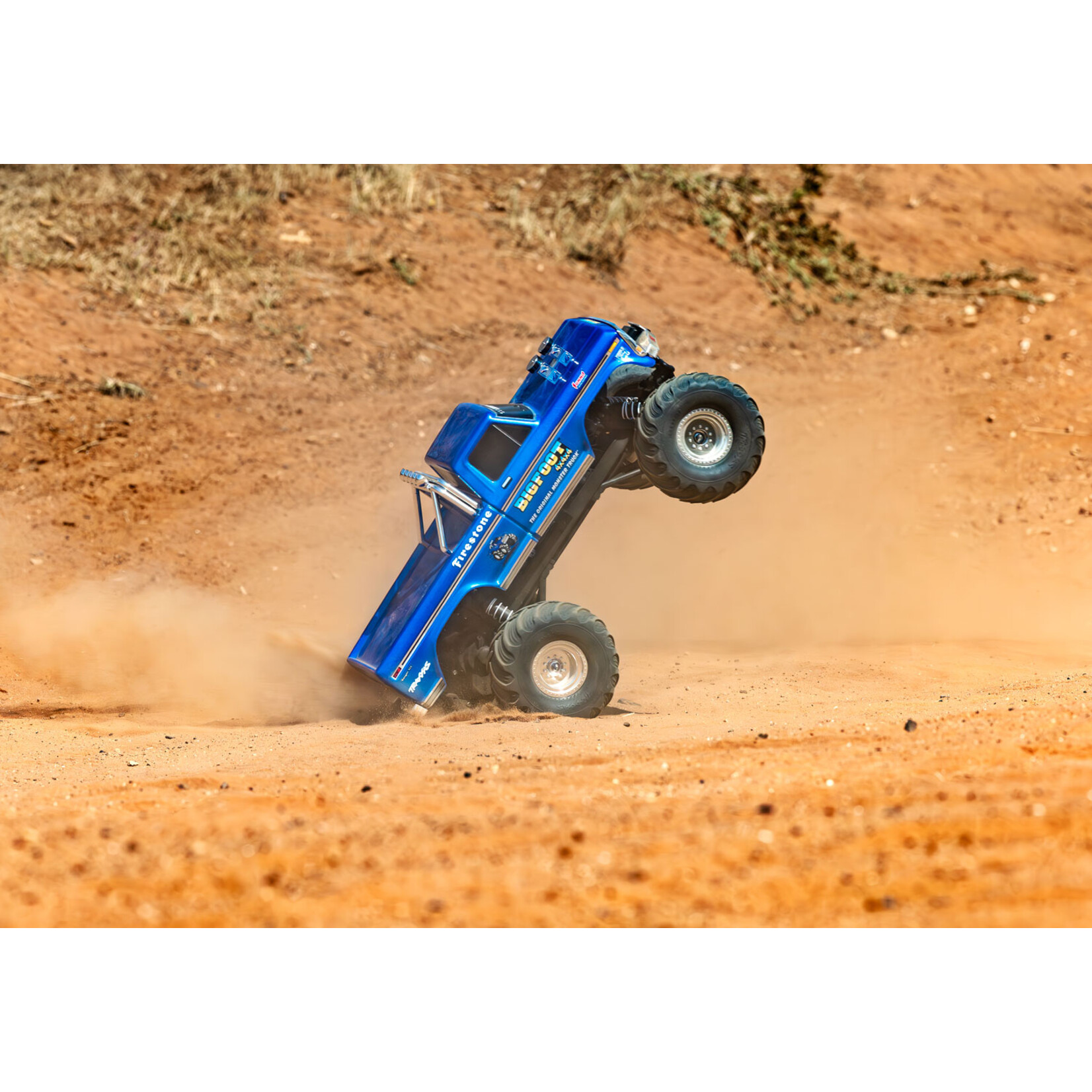

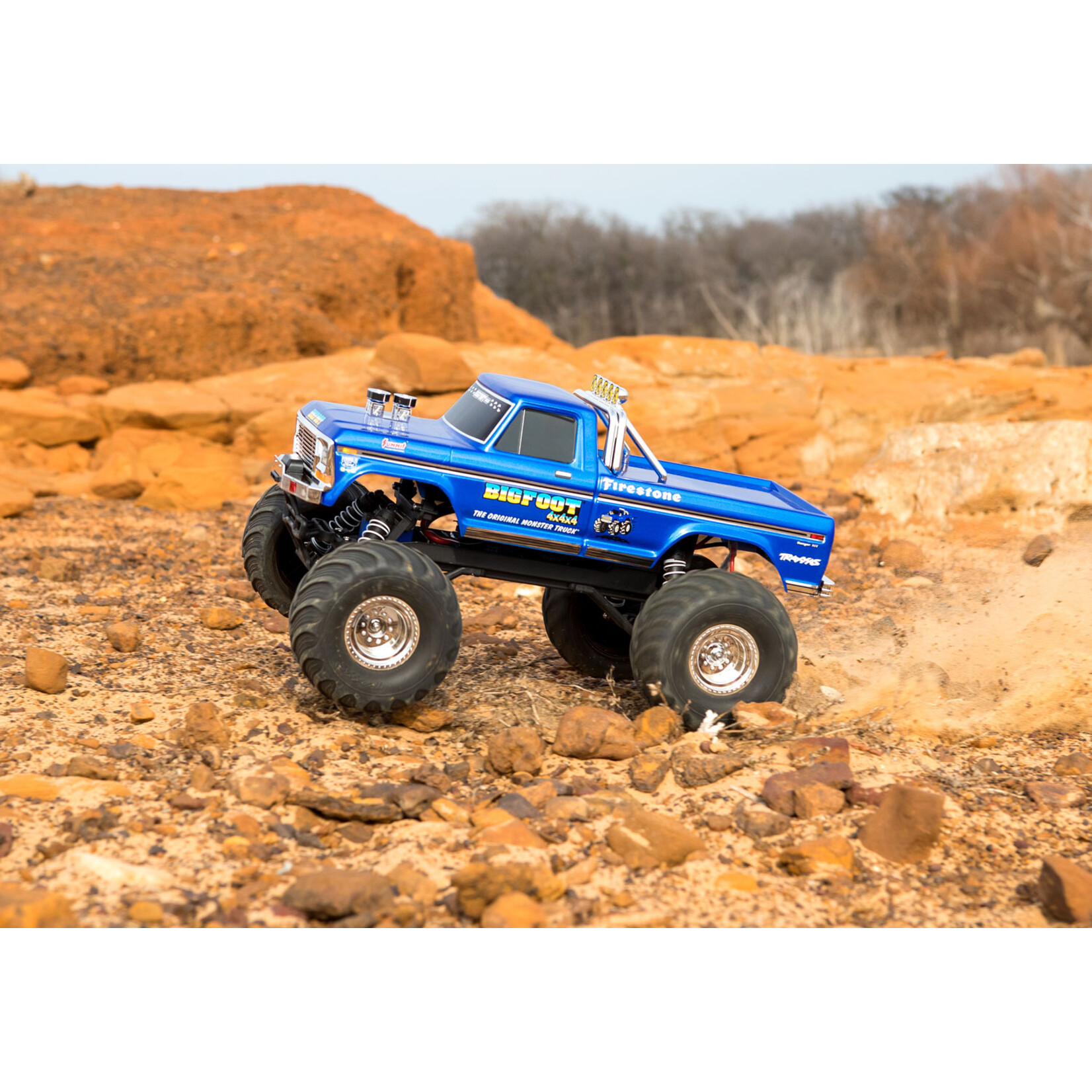

Traxxas faithfully captures the spirit and classic look of BIGFOOT® No. 1 “The Original Monster Truck” in amazing detail with this fully licensed replica. With its new BL-2s™ brushless power system, BIGFOOT rips non-stop wheelies all the way to its 40+ mph top speed and crushes the competition underneath its towering stance. BIGFOOT is built Traxxas Tough™ with factory-installed Extreme Heavy Duty components to take even the most brutal punishment in stride.

BL-2s Brushless Power System

BIGFOOT’s waterproof BL-2s brushless power system ramps up the fun with more torque, faster acceleration, and less maintenance than comparable brushed power systems. The BL-2s is a model of efficiency and refinement, offering more power than before with the safety and convenience that only Traxxas can deliver.

Extreme Heavy Duty Components

Extreme Heavy Duty components come factory-installed on BIGFOOT No. 1 for game-changing durability. Key drivetrain and suspension components are beefed-up with extra material for ultimate strength. From HD suspension arms to the upgraded axles, BIGFOOT sets a new standard for durability on your off-road adventures.

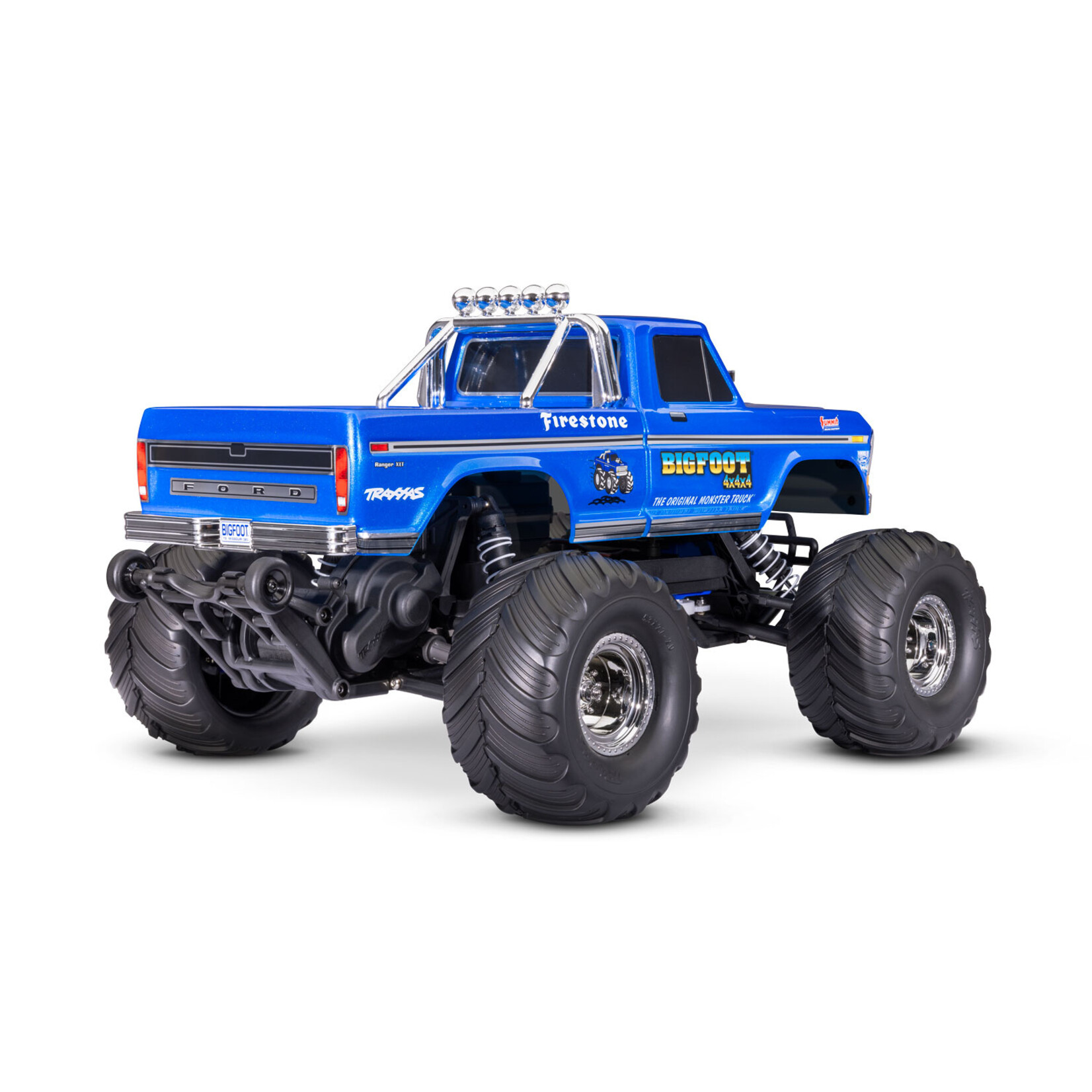

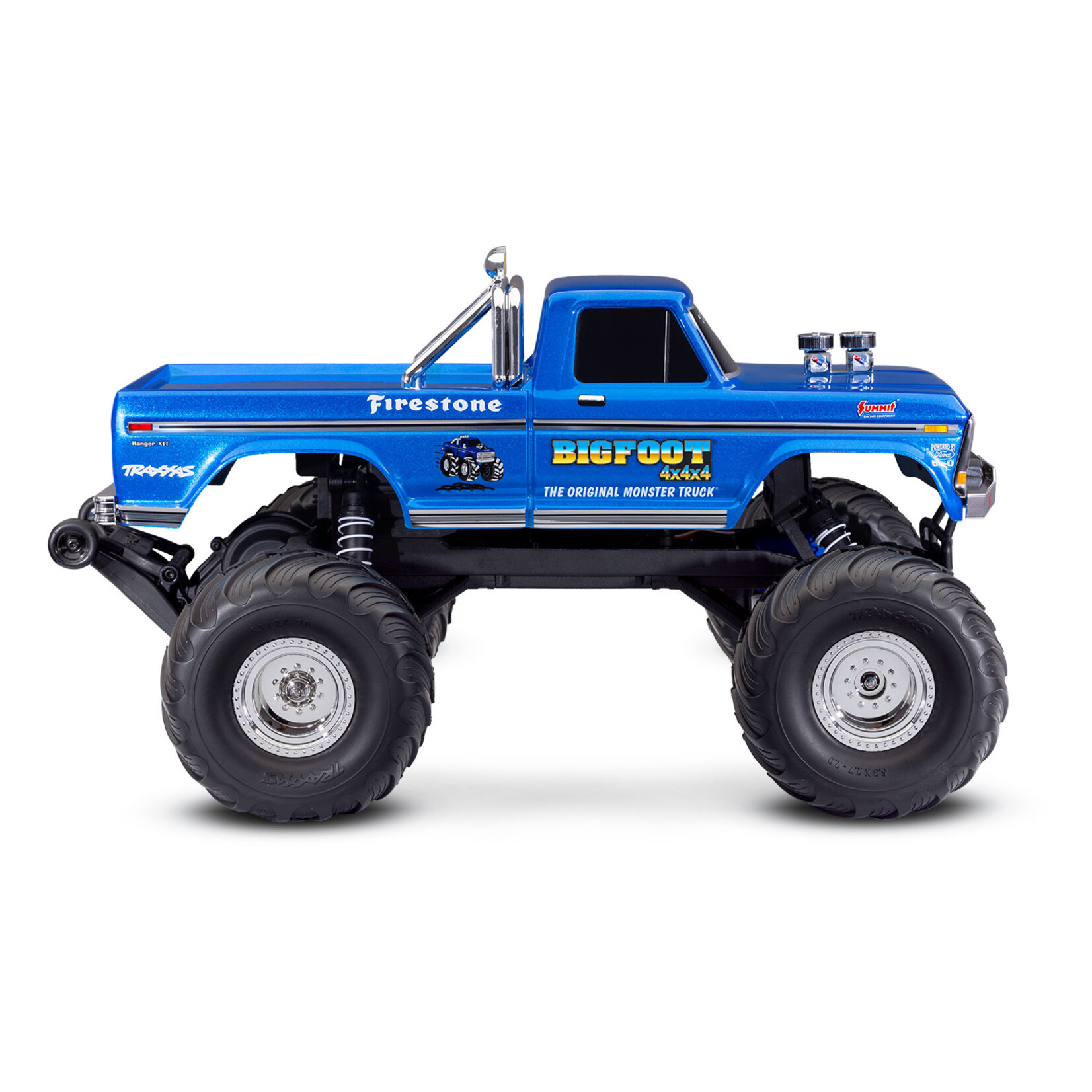

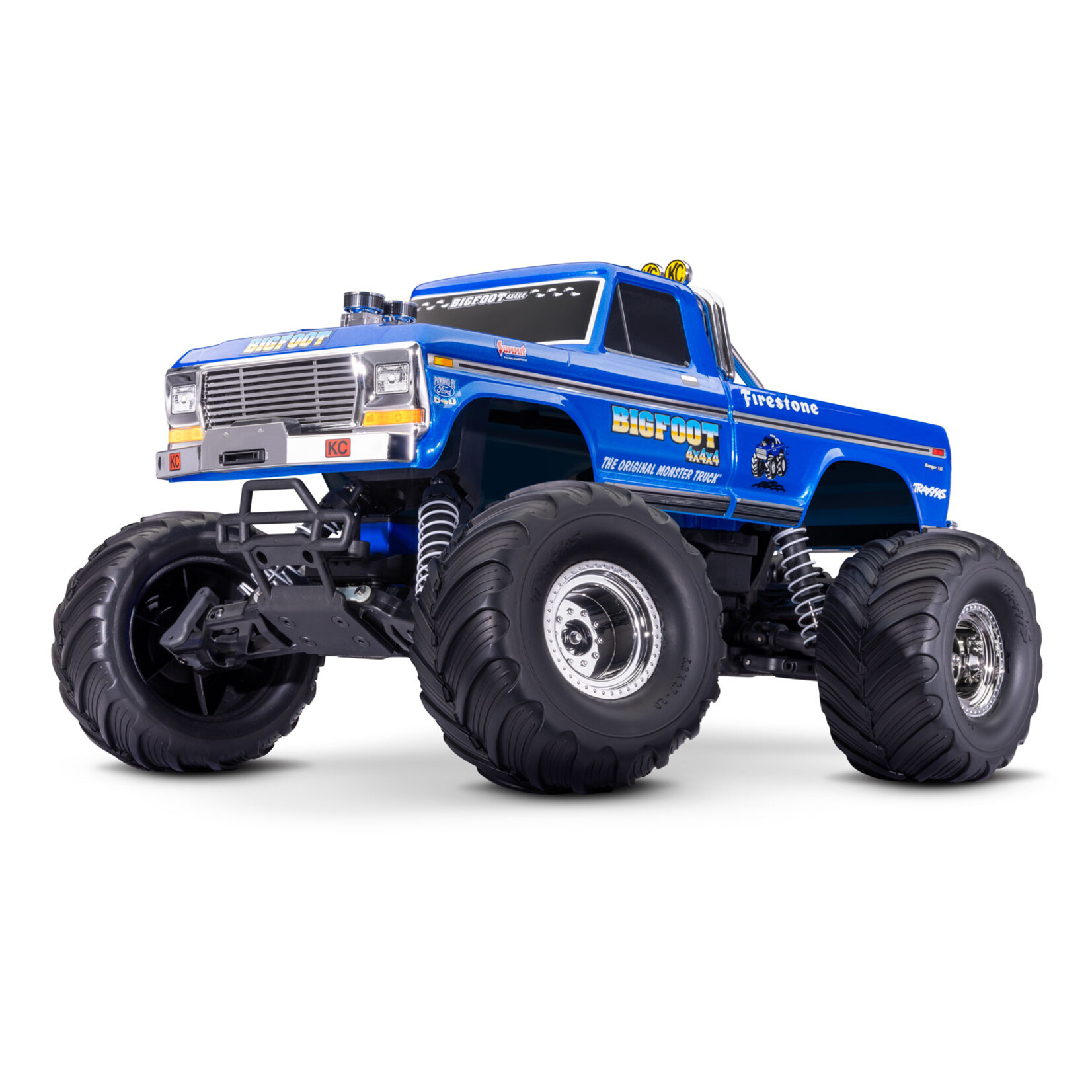

Clipless Replica Body

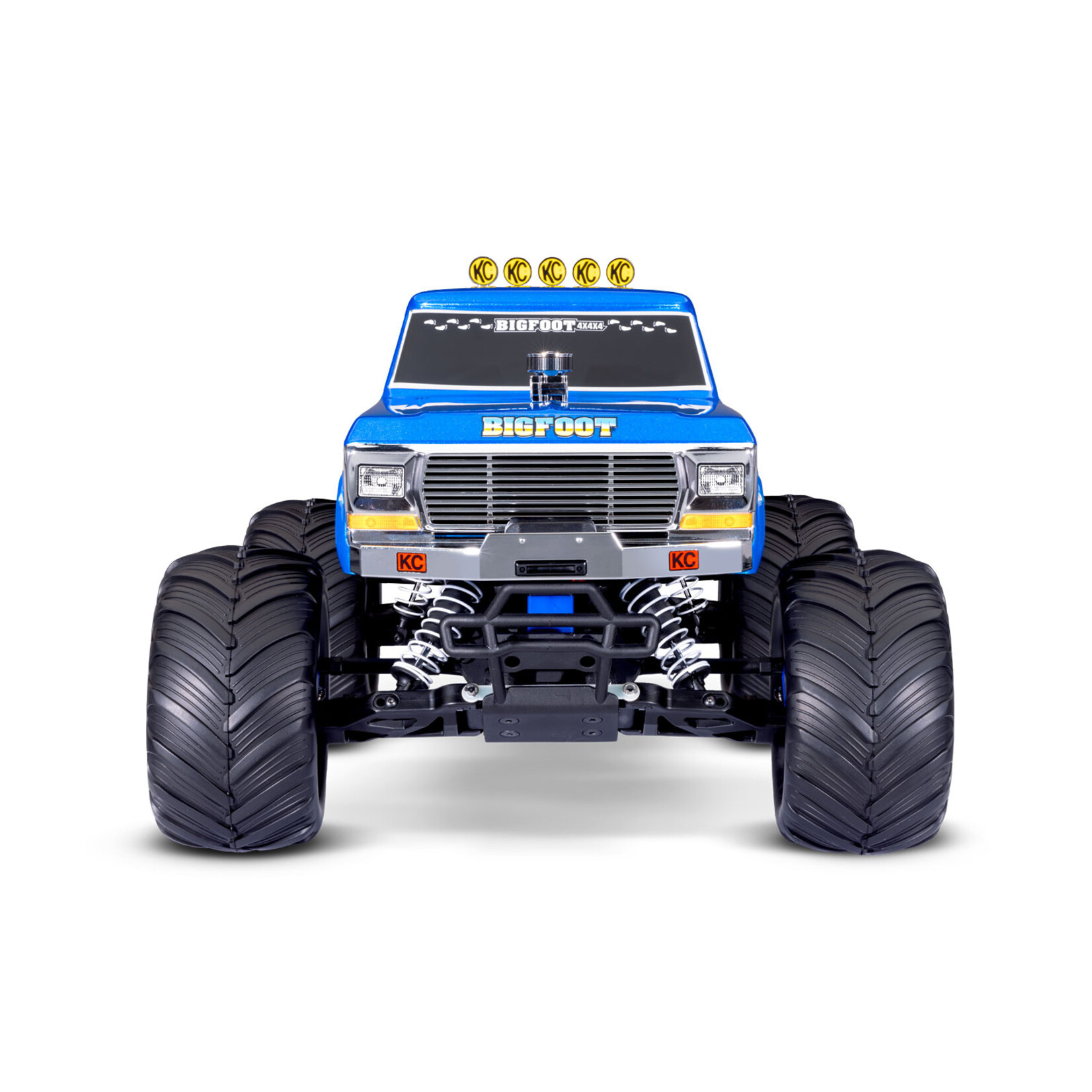

BIGFOOT No. 1 comes Ready-To-Race® with a beautifully detailed clipless replica body. Bright chrome bumpers, side trim, and roll bars stand out against the brilliant blue paint. A chrome front grille, replica KC lights, and dual-carb engine manifold complete the authentic look. Best of all, BIGFOOT’s convenient hidden latching system replaces traditional body clips with clean lines.

Features:

Licensed BIGFOOT^® No. 1 Clipless Body

- Brilliant blue metallic officially licensed Ford^® F-250^® Ranger XLT body

- Chrome front bumper with replica winch

- Chrome grille

- Replica high-rise dual-carb intake manifold

- Chrome roll bar with replica KC lights

- Holds tight for intense action

- Quick and easy removal

- 4-position adjustable wheelie bar

Extreme Heavy Duty Upgrade Components

- Strengthened C-hubs, axle carriers, and steering blocks

- Extreme heavy duty driveshafts

BL-2s^™ Waterproof Electronic Speed Control

- Heat sink accepts accessory cooling fan (3340)

- Three Programmable Drive Profiles

- Sport Mode - Forward / Brake / Reverse

- Race Mode - Forward / Brake

- Training Mode^™ - 50% Forward / Brake / 50% Reverse (patented)

- Traxxas EZ-Set^® one-button setup

- Built-in two-stage low-voltage detection for LiPo batteries

- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)

- LiPo battery packs: 2 cells (7.4 volts)

3300 kV Brushless Motor

- Integrated cooling fan

- Low-maintenance design

- Efficient ball bearings

- 3300 kV

TQ^™ 2.4 GHz Transmitter

- Full-size 2-channel transmitter

- All-day comfort with precise long-range control

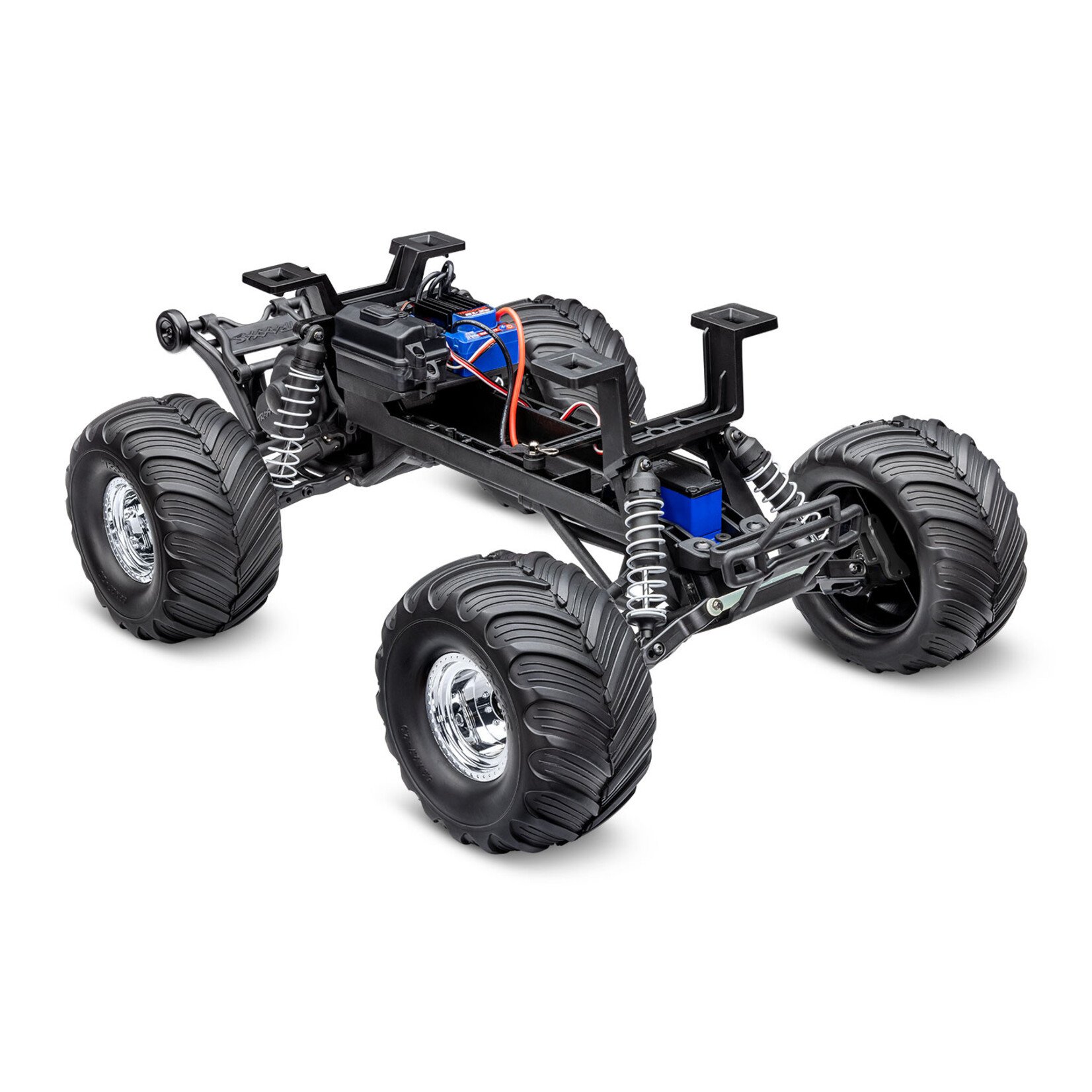

Tough Fiber-Composite Monocoque Chassis

- Tall 4″ center ground clearance to drive over obstacles

- Heavy duty servo saver

Easy Access Battery Compartment

- Accepts 6- and 7-cell flat packs and 7-cell hump packs

- Accepts many 2s LiPo battery configurations

Suspension

- Heavy-duty suspension arms

- One-piece camber links

- Oil-filled Ultra Shocks^™

- White powder-coated springs

Steering

- Chassis-mounted 2056 servo

- Heavy duty servo saver

Transmission

- Velineon-ready Magnum 272^™ metal-gear transmission

- Planetary gear differential with steel ring gear

- Sealed gearbox protects the transmission

- External gear cover with easy clutch access

Drivetrain

- Extreme heavy-duty driveshafts

- Torque Control^™ slipper clutch

Wheels and Tires

- Pre-glued high profile Terra Groove shaved monster truck tires

- 2.2″ chrome deep dish beadlock-style wheels

Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating

Specs:

Length:	18.1 inches (459 mm)
Front Track:	12.75 inches (324 mm)
Rear Track:	12.75 inches (324 mm)
Weight (no battery):	4.08 pounds (1.85 kg)
Height (overall):	9.5 inches (241 mm)
Wheelbase:	10.6 inches (270 mm)
Shock Length (front):	3.45 inches (88 mm) - Long
Shock Length (rear):	3.98 inches (101 mm) - XX-Long
Tires:	Terra Groove 2.2″ all terrain
Wheels (front/rear):	2.2″ chrome deep dish
Wheel Diameter:	2.2 inches (71 mm)
Overall Drive Ratio:	12.34:1
Speed Control:	BL-2s^™ electronic speed control
Motor (electric):	BL-2s^™ 3300 kV sensorless brushless
Differential Type:	Planetary
Gear Pitch:	48
Chassis Structure/Material:	Composite modified tub
Drive System:	2WD
Steering:	Bellcrank
Radio System:	TQ^™ 2.4 GHz (2-channel)
Servo:	Waterproof 2056 servo (80 oz-in torque)
Skill Level:	1
Battery Compartment (L/W/H):	165 mm (6.49″) x 48 mm (1.89″) x 28 mm (1.10″)
Required Batteries:	4 “AA” (transmitter), Vehicle (see battery finder)

1/10 / Bigfoot / BL-2s / Monster Truck
