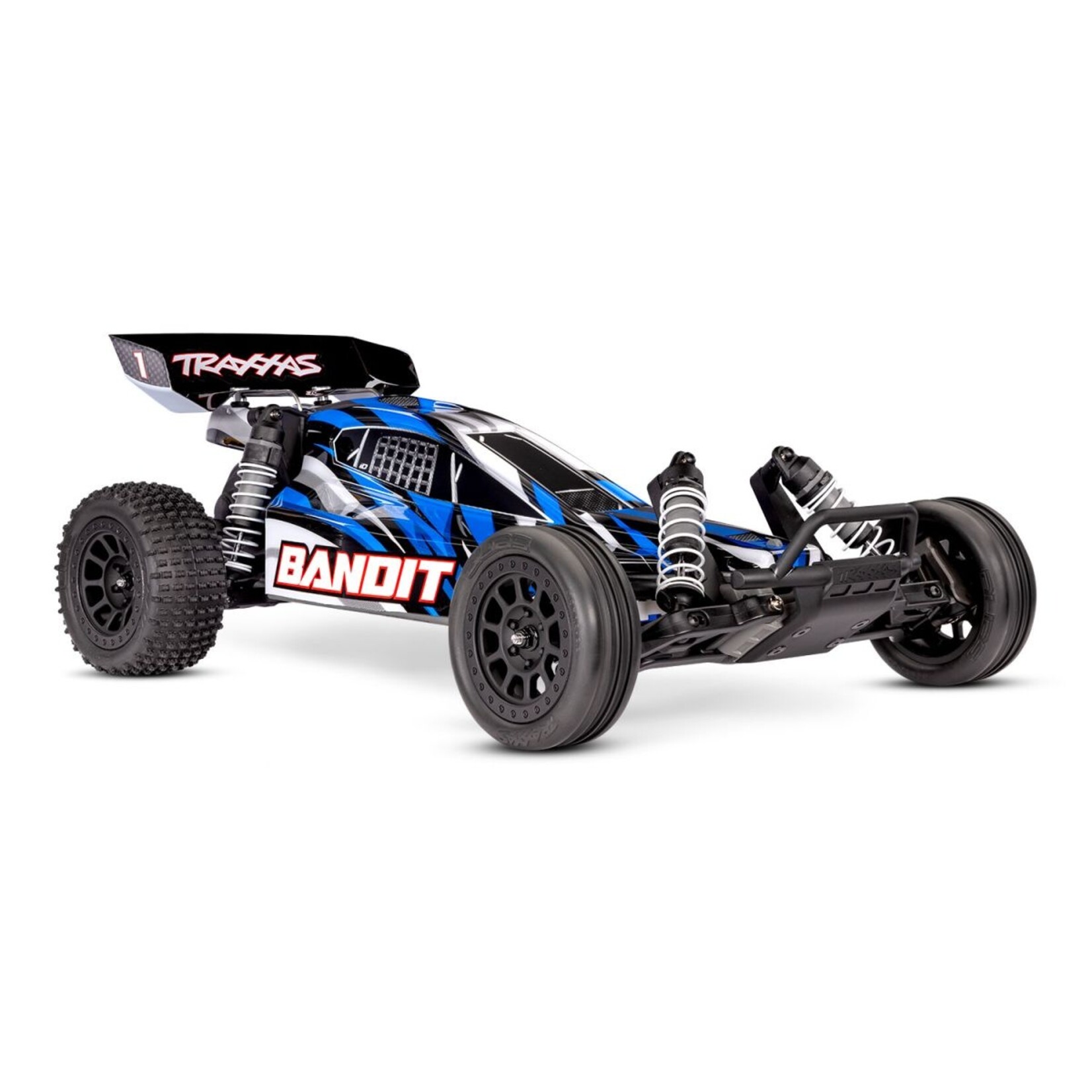

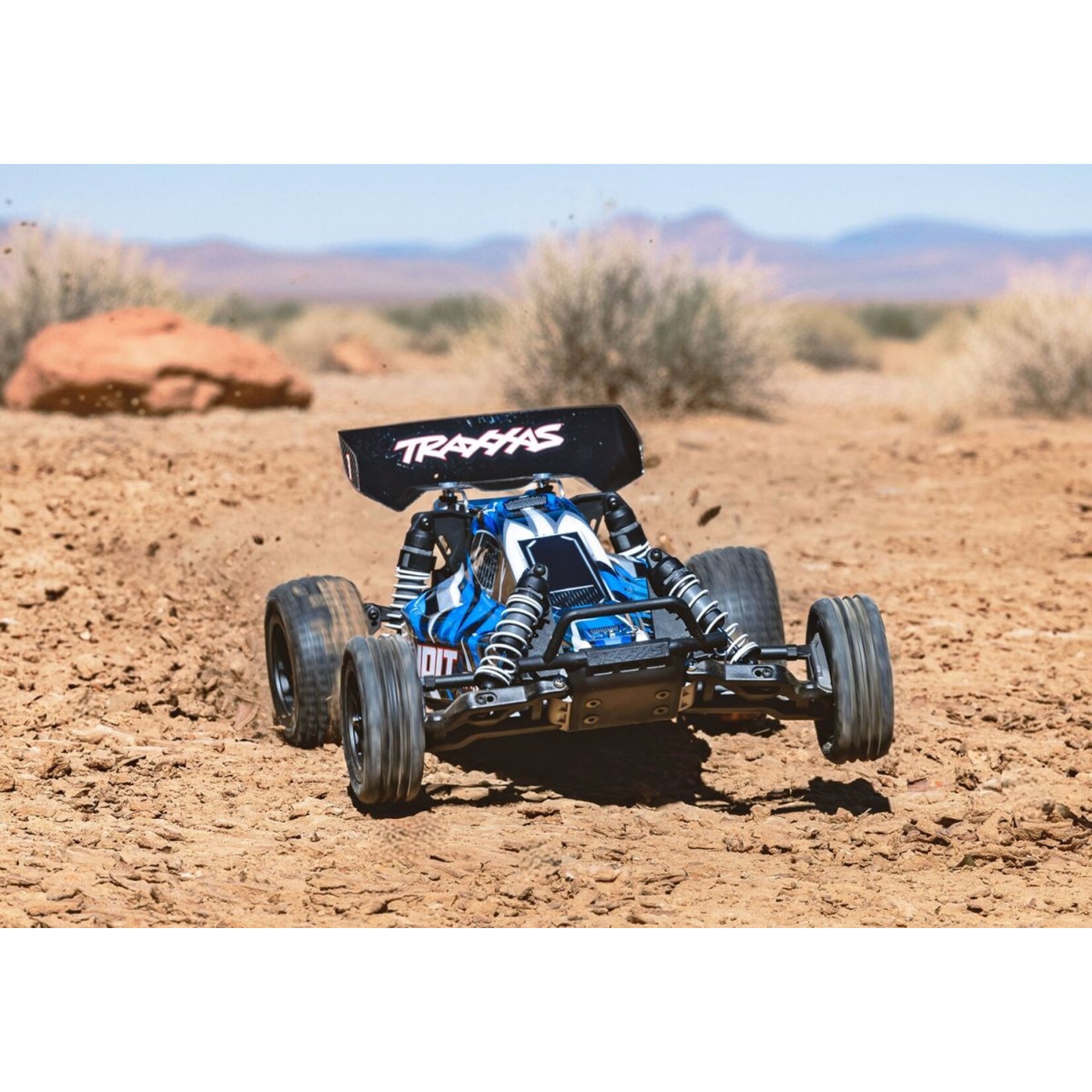

Bandit^® elevates the RC buggy experience with its factory-installed Extreme Heavy-Duty suspension components for next-level durability. Bandit’s sleek, lightweight chassis delivers razor-sharp handling and blazing 35+ mph speed. Pull the trigger and Bandit rips massive rooster tails, soars over jumps, and lays down the power for excitement at every turn. Equally at home off-road or on pavement, Bandit’s fully waterproof electronics make even the wildest all-weather adventures possible.

Extreme HD Suspension Components

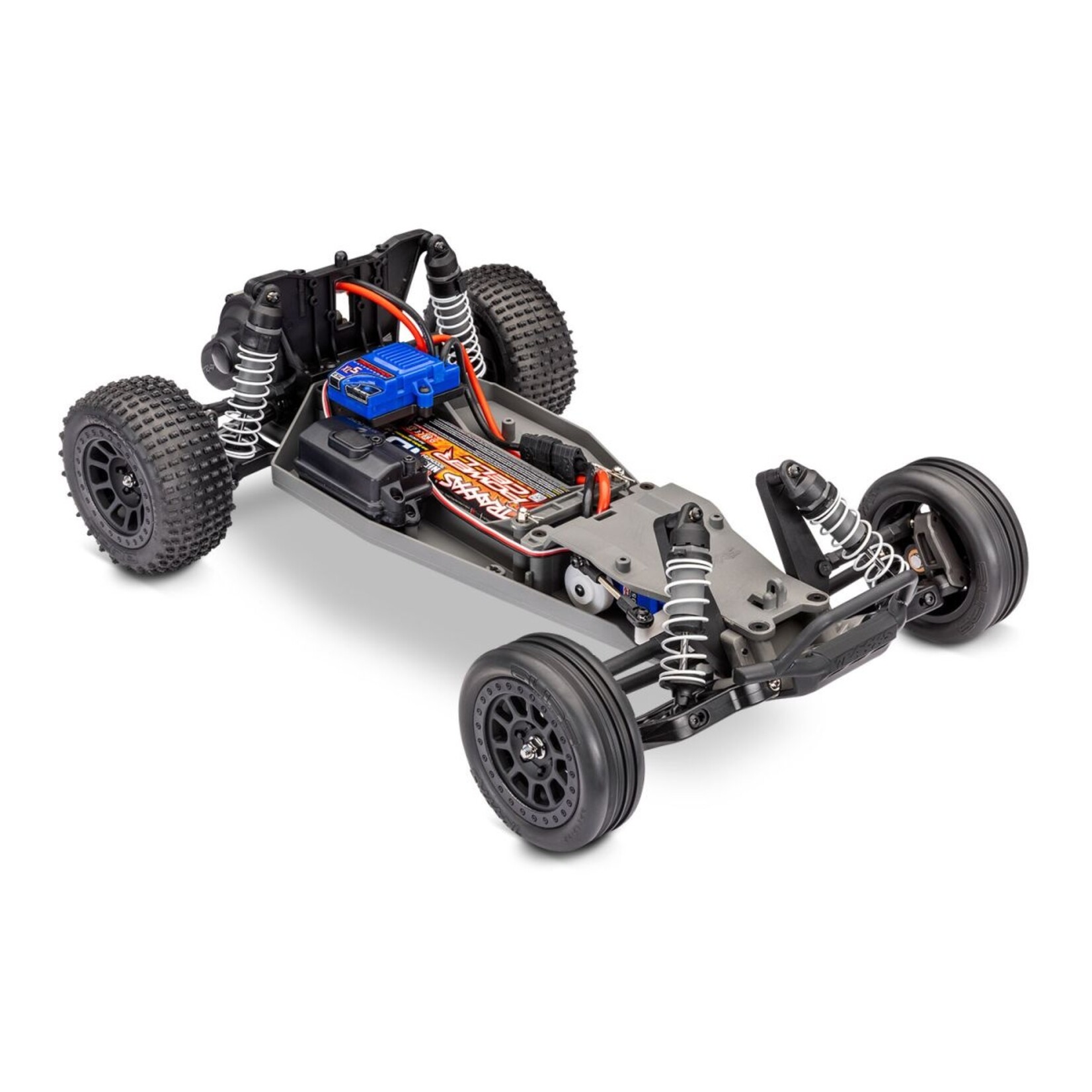

Bandit comes outfitted with factory-installed Extreme Heavy-Duty suspension components and arms for ultimate strength and durability. The rear axle carriers, C-hubs, and steering blocks are beefed up with more material and stronger construction.

Includes Battery and Charger

Bandit includes a powerful 8.4-volt 3000 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach top speed. Fast 4-amp charging is available virtually anywhere thanks to the included 45+ watt USB-C battery charger with iD® technology.

Powerful Titan Motor

Bandit reaches its blistering 35+ mph top speed thanks to a powerful Titan® motor and XL-5™ speed control. An integrated cooling fan draws air into the motor to keep temperatures down. The XL-5 ESC provides smooth, reliable power with EZ-Set® one-button setup and three drive profiles.

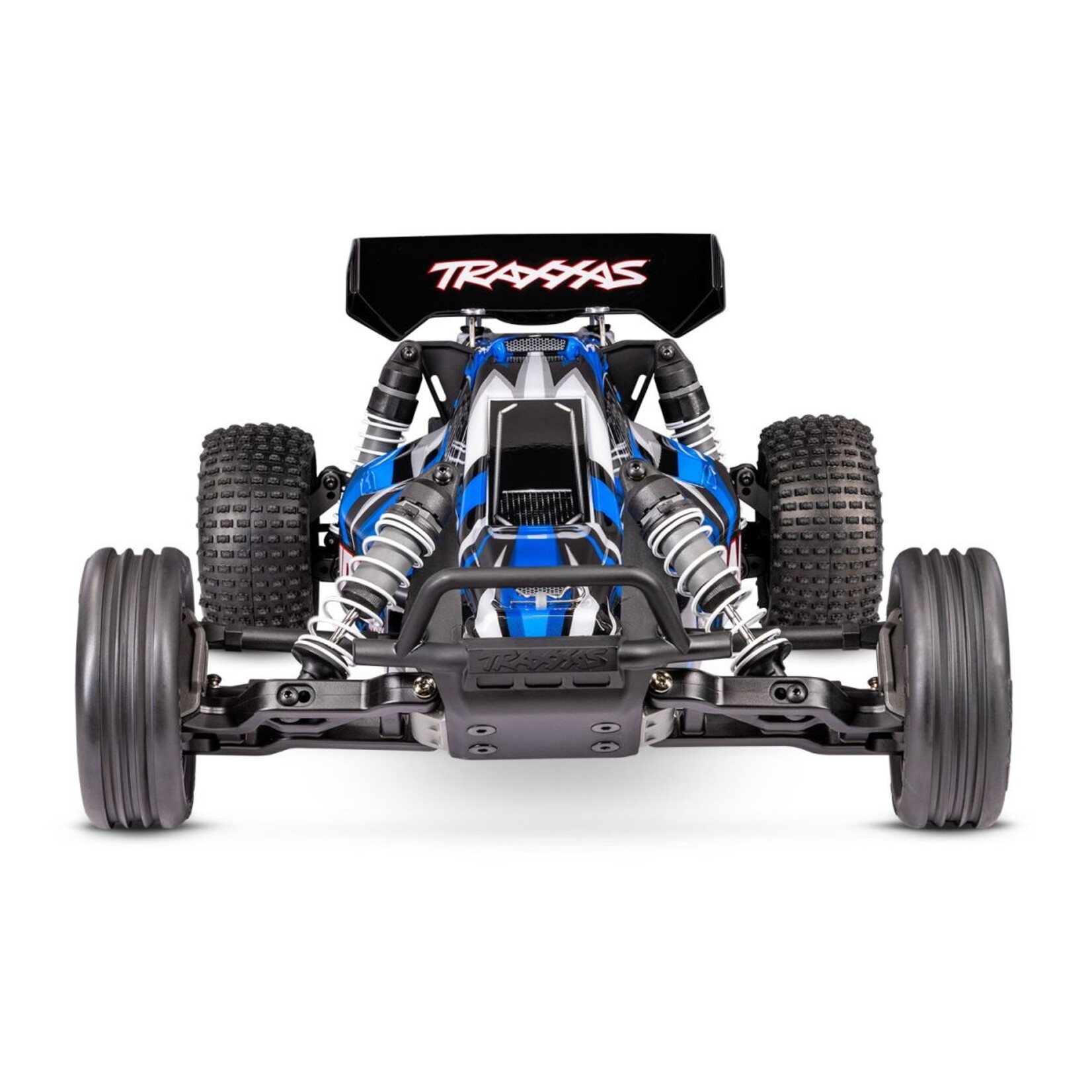

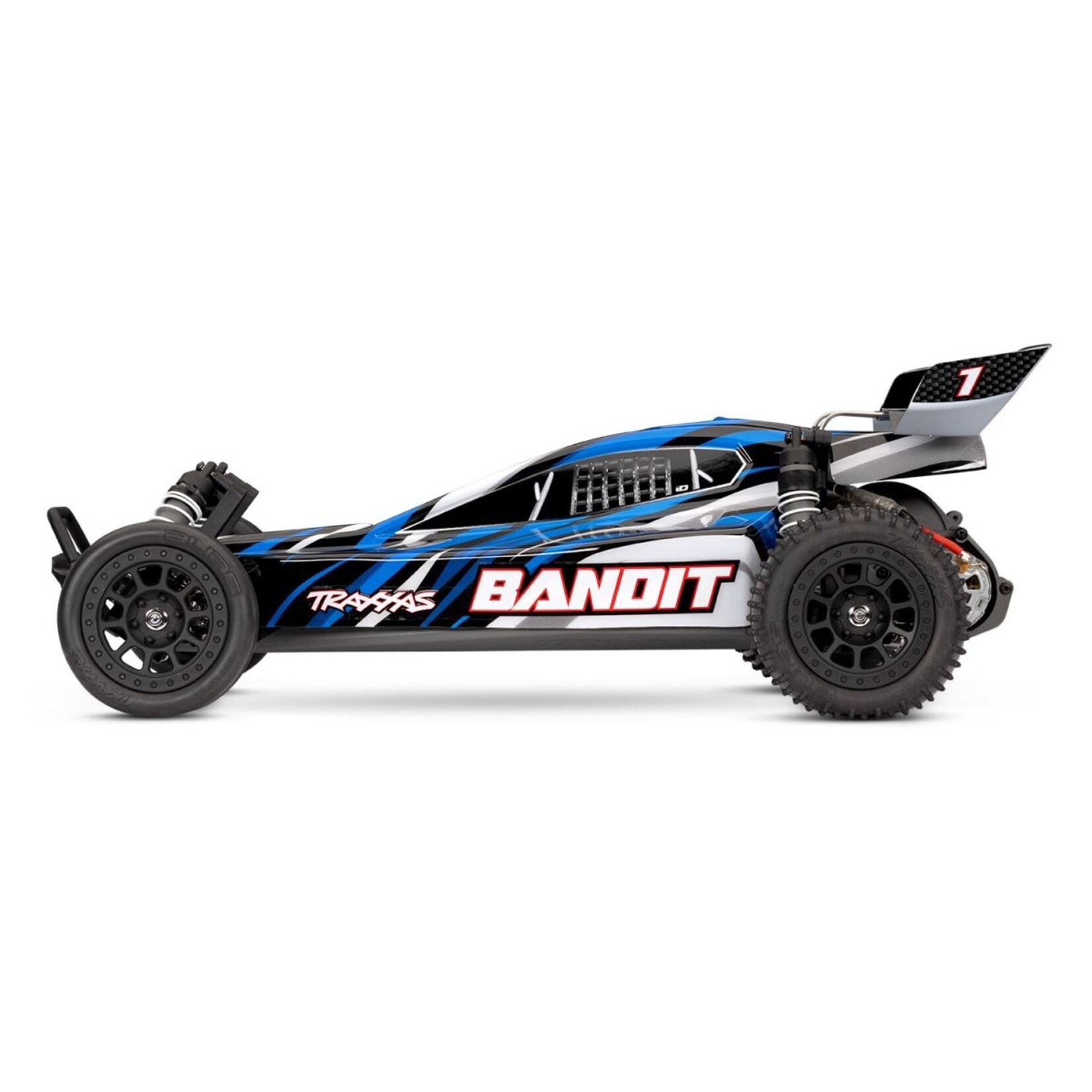

Aggressive Body & Wing

Bandit comes loaded for fun with a sleek offroad buggy body designed for high-speed passes. The body comes fully trimmed and painted with bold graphics with a high-downforce wing to help Bandit maintain stability at high speeds.

Name: Bandit HD w/USB-C
Type: Buggy
Speed: 35+ mph with 7-cell battery
Skill Level: 1
Scale: 1/10
Weight: 3 pounds (1.36 kg)
Length: 16.25 inches (413 mm)
Width: 9.84 inches (250 mm)
Track: 9.84 inches (250 mm)
Height: 7 inches (178 mm)
Wheelbase: 11.25 inches (286 mm)
Driveline: 2WD
Transmission: Magnum 272™
Differential Type: Planetary steel gear
Gear Ratio (Internal): 2.72 (final drive: 12.34)
Gear Pitch: 48 pitch
Steering Servo: 2056 high-torque waterproof
Radio System: TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs: 164 mm X 46 mm X 26 mm

MOTOR SPECS

Motor Name: Titan® 12T 550
Motor Type: High-speed brushed motor
Motor Weight: 8.47 ounces (240 g)
Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter: 1.41 inches (36 mm)
Motor Shaft Size: 3 mm
Motor Connector Type: Bullet

MOTOR SPECS

Name: Titan® 12T 550
Type: High-speed brushed motor
Weight: 8.47 ounces (240 g)
Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter: 1.41 inches (36 mm)
Shaft Size: 3 mm
Connector Type: Bullet

ESC SPECS

ESC Name: Waterproof XL-5 ESC with low-voltage detection
ESC Type: Brushed
ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
ESC Weight: 2.44 ounces (69 g)
Motor Connectors: Bullet
Battery Connectors: Traxxas High-Current Connector
ESC Power Wire: 14 gauge

MODEL 24254-8: Bandit® XL-5: 2WD race buggy, fully assembled, waterproof, Ready-To-Race®, with TQ™ 2.4 GHz radio system, XL-5™ Electronic Speed Control, 8.4 V NiMH 3000 mAh Power Cell™ battery, 4-amp USB-C fast charger, and painted body.
