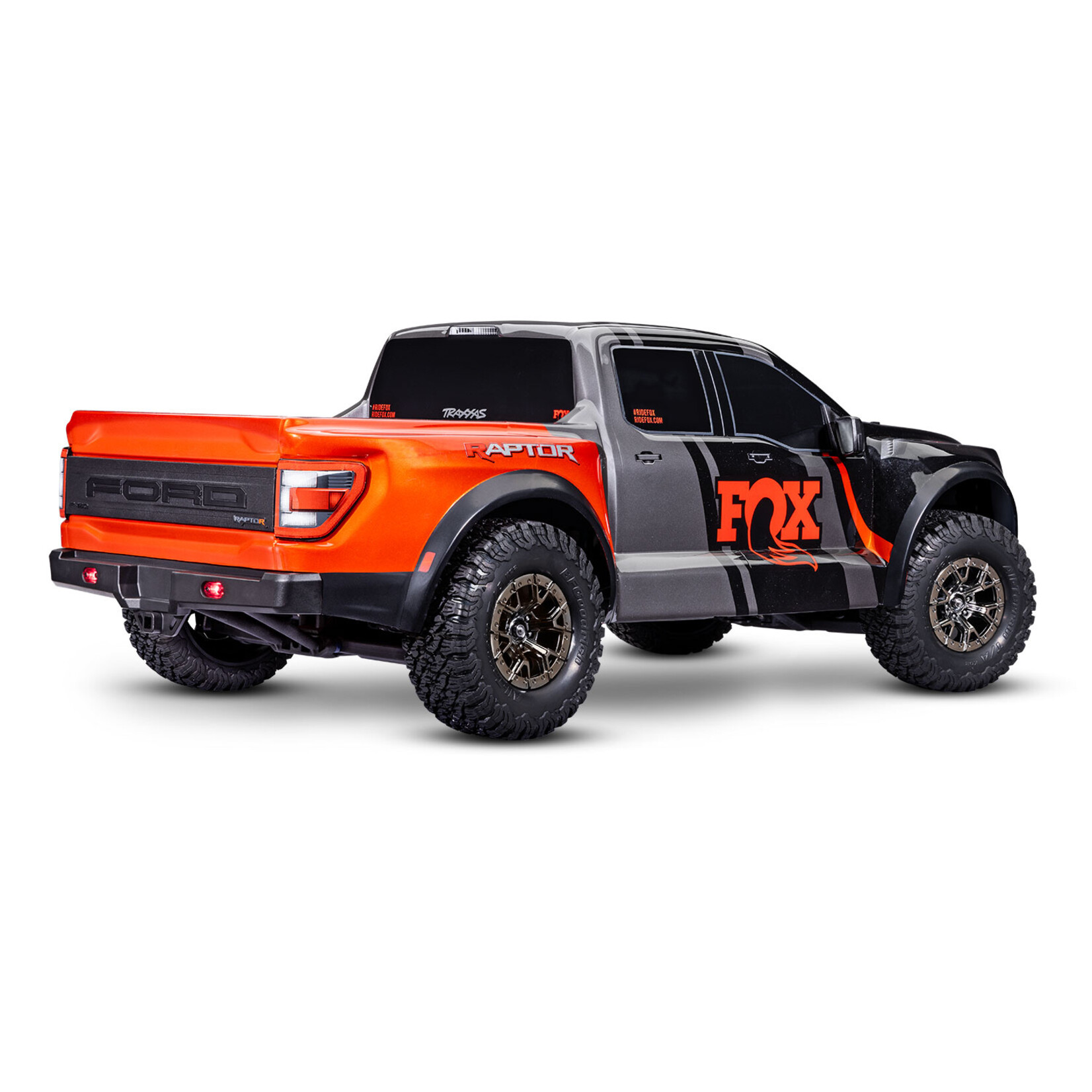

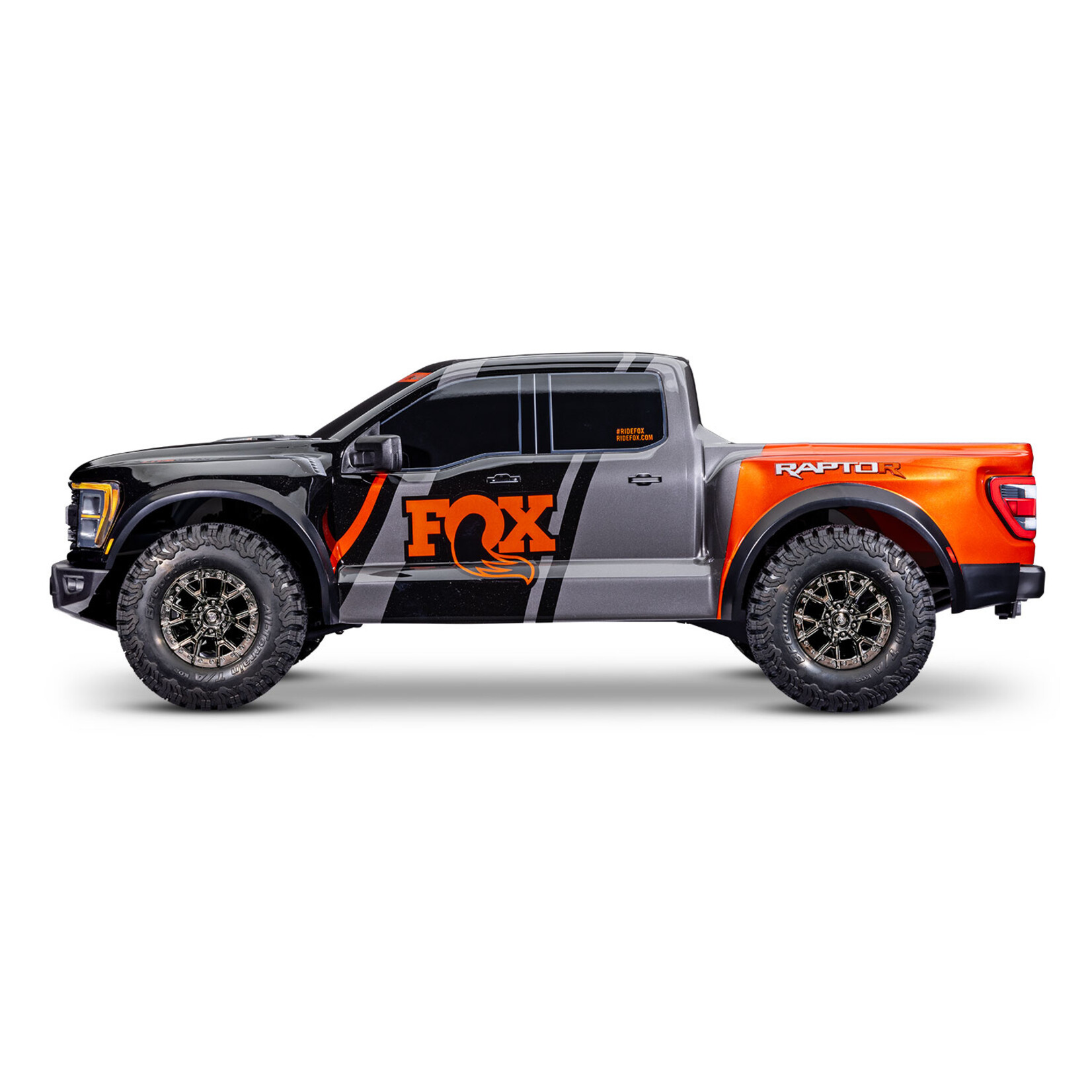

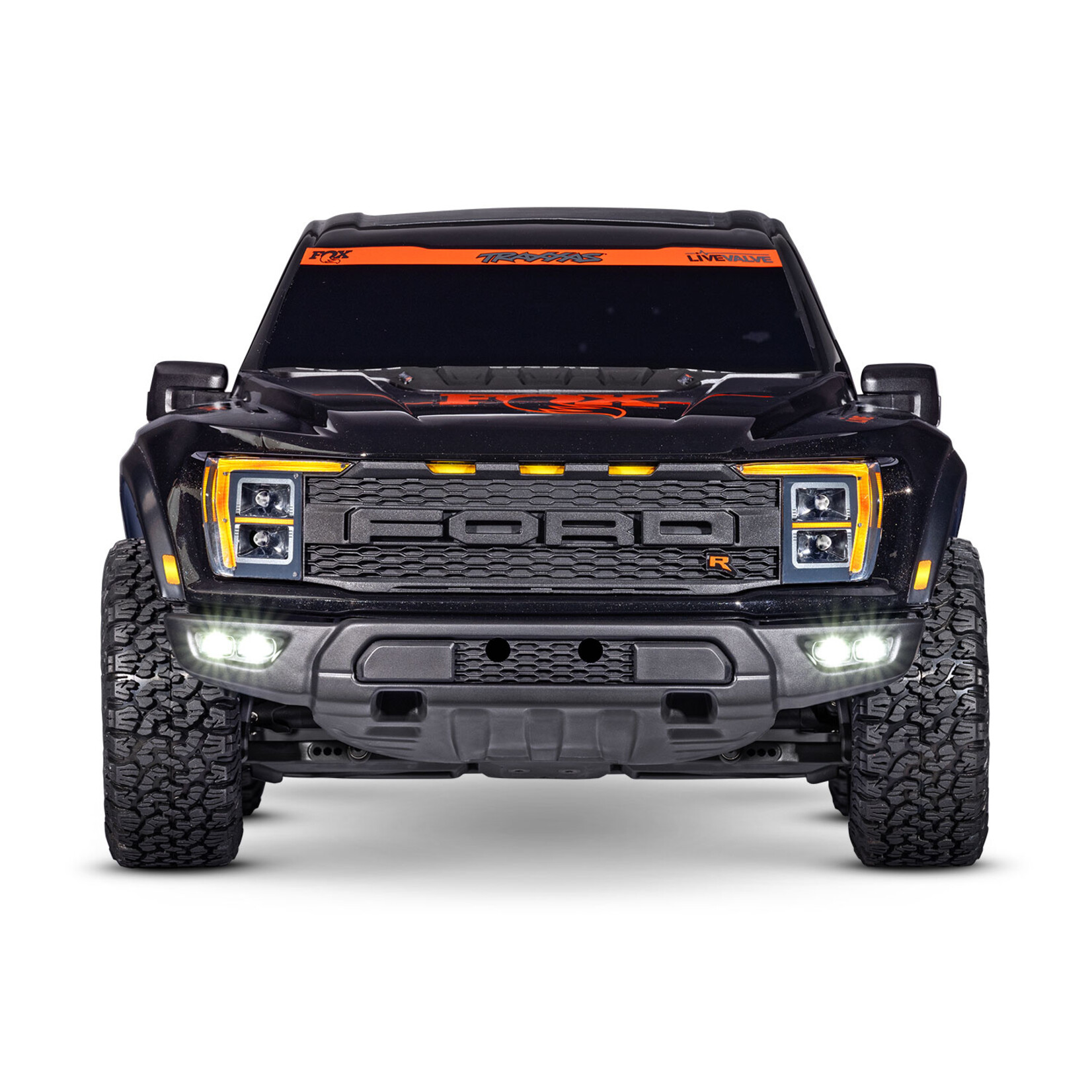

Traxxas 101177-4 - Raptor R Ultimate 4X4 - FOX 1

NOTE: This item is available for IN STORE PURCHASE/CURBSIDE PICKUP ONLY

Traxxas 101177-4 - Raptor R Ultimate 4X4 - FOX 1

Raptor R™ 4X4 Ultimate takes Traxxas Pro Scale® to the next level with Velineon® VXL-4s™ power and the massive 540XL brushless motor. Outfitted with an extreme HD driveline and color-matched aluminum upgrades, Raptor R Ultimate delivers both the exacting realism and unbeatable speed and durability that performance drivers demand.

Pro Scale Design

Only Traxxas Pro Scale combines pro-level performance with the look and feel of a real Ford Raptor R. The Traxxas Raptor R 4X4 Ultimate stops the show with a Ford-licensed body and molded replica parts for maximum scale authenticity. 4s Velineon brushless horsepower and an extreme heavy-duty 4WD driveline give Raptor R performance credentials to match its stunning looks.

Ultimate Upgrades

Raptor R Ultimate comes fully loaded with aluminum caster and steering blocks, axle carriers, and GTR shocks to give Raptor R Ultimate the brute strength required for extreme driving. Extreme HD driveshafts are beefed up with extra material and overbuilt construction to form a nearly indestructible driveline.

Clipless Body Mounting

High-flying stunts and 60+ mph desert speed runs won’t upset Raptor R’s tough clipless body. Locking tabs hold the body tightly, but release in just seconds to access the chassis. Raptor R’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.

Extreme 4s Power

Raptor R 4X4 Ultimate uses the extreme Velineon 540XL brushless motor found in the Maxx® monster truck, backed by the VXL-4s™ speed control with built-in telemetry and selectable 6.0 or 7.4-volt BEC. With 4s LiPo power on tap, Raptor R Ultimate defies the laws of physics as it rockets its way to 60 mph and beyond with unrelenting acceleration.

Included Wireless Module

A Traxxas Link™ Wireless Module comes standard on Raptor R 4X4 Ultimate along with factory-installed telemetry sensors to unlock the full potential of the TQi™ transmitter. Adjust the transmitter’s settings on the fly and record real-time telemetry data like speed, RPM, and battery voltage on your mobile device using the free Traxxas Link app.

Monster Servo

Raptor R Ultimate comes equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. The fully waterproof design features full ball-bearing support for smooth power delivery in any environment. With up to 486 oz-in of torque at 7.4 volts, there’s nothing this servo can’t handle.

Features:

Officially Licensed Ford^® F-150^® Raptor R™ Clipless Pro Scale^® Body

- Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent

- LED lighting in front and rear bumpers

- Body reinforcements to prevent pull-through damage

Clipless Body Mounting

- Holds tight for intense action

- Quick and easy removal

- Smooth appearance with no body posts or clips

Color-Matched Aluminum Suspension Parts

- 6061-T6 aluminum C-hubs

- 6061-T6 aluminum steering blocks

- 6061-T6 aluminum rear hub carriers

VXL-4s™ Waterproof Electronic Speed Control

- 2s–4s LiPo compatible

- Real-time telemetry via Traxxas Link™

- Selectable 7.4-volt high-voltage BEC

- Large Heat sink accepts accessory cooling fan (3340)

- Three Programmable Drive Profiles

- Sport Mode - Forward / Brake / Reverse

- Race Mode - Forward / Brake

- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)

- Traxxas EZ-Set^® one-button setup

- Integrated protection circuits

- LED status lights

Velineon^® 540XL Brushless Motor

- Long format brushless motor

- 4-pole 2400 Kv

- 5 mm output shaft

- Low-maintenance design

TQi™ 2.4 GHz Radio System with Wireless Module

- Factory-installed telemetry sensors

- TQi 2-channel high-power transmitter

- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

- Programmable multi-function knob

- 5-channel micro receiver (6533) with fail-safe security

- Patented waterproof receiver box with easy-access plug

Traxxas Stability Management (TSM)^®

- Improves straight line acceleration and braking on low-traction surfaces

- Maintains steering composure to allow throttle-on powerslides

- Never dulls throttle or slows the truck

- Adjusts from off to 100% assistance from the transmitter

Suspension

- Heavy-duty suspension arms

- Adjustable 4 mm steel toe and camber links

- Aluminum oil-filled GTR shocks

- 70% more oil capacity than standard Ultra Shocks™

- Threaded bodies with adjustable spring collars

- TiN-coated shock shafts to reduce friction

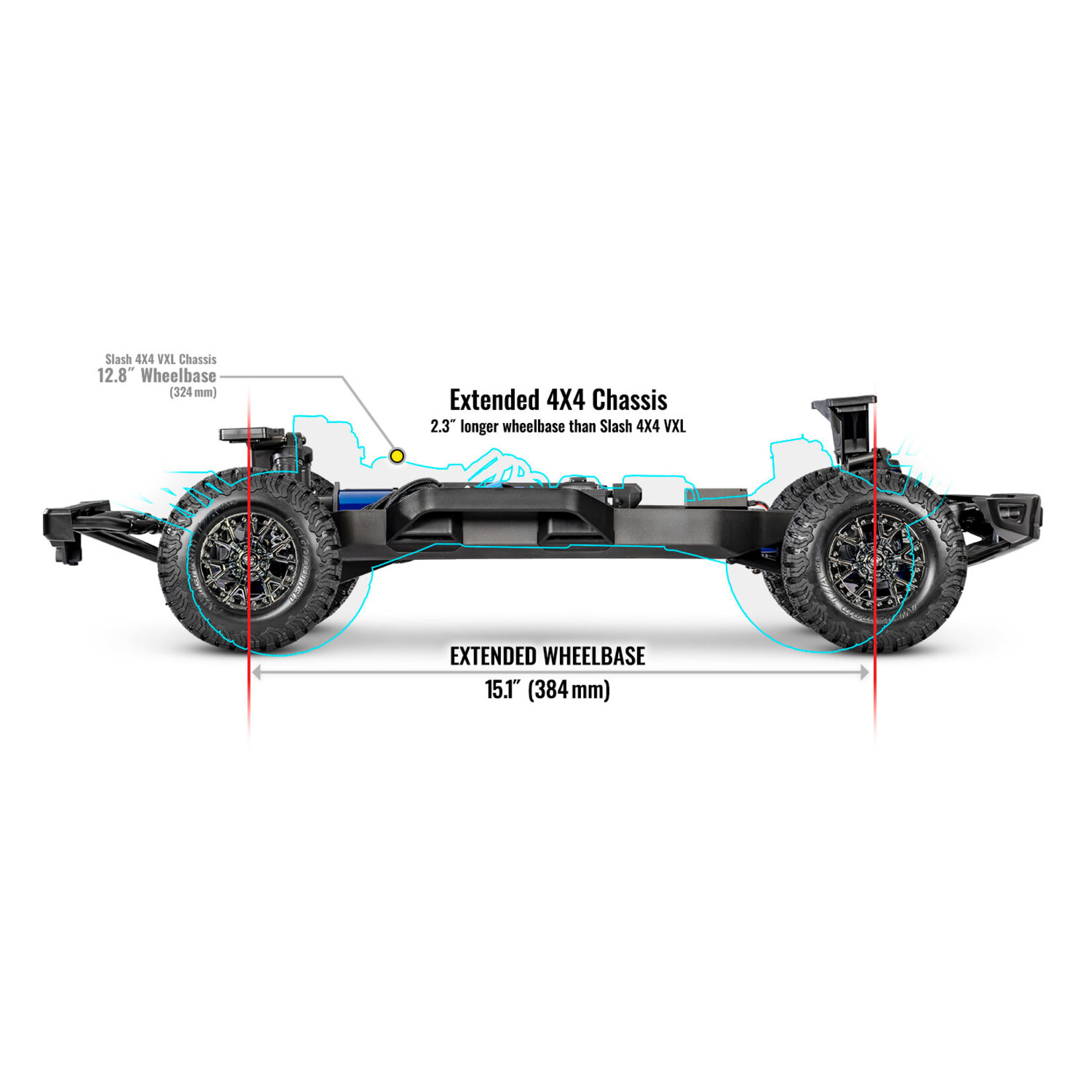

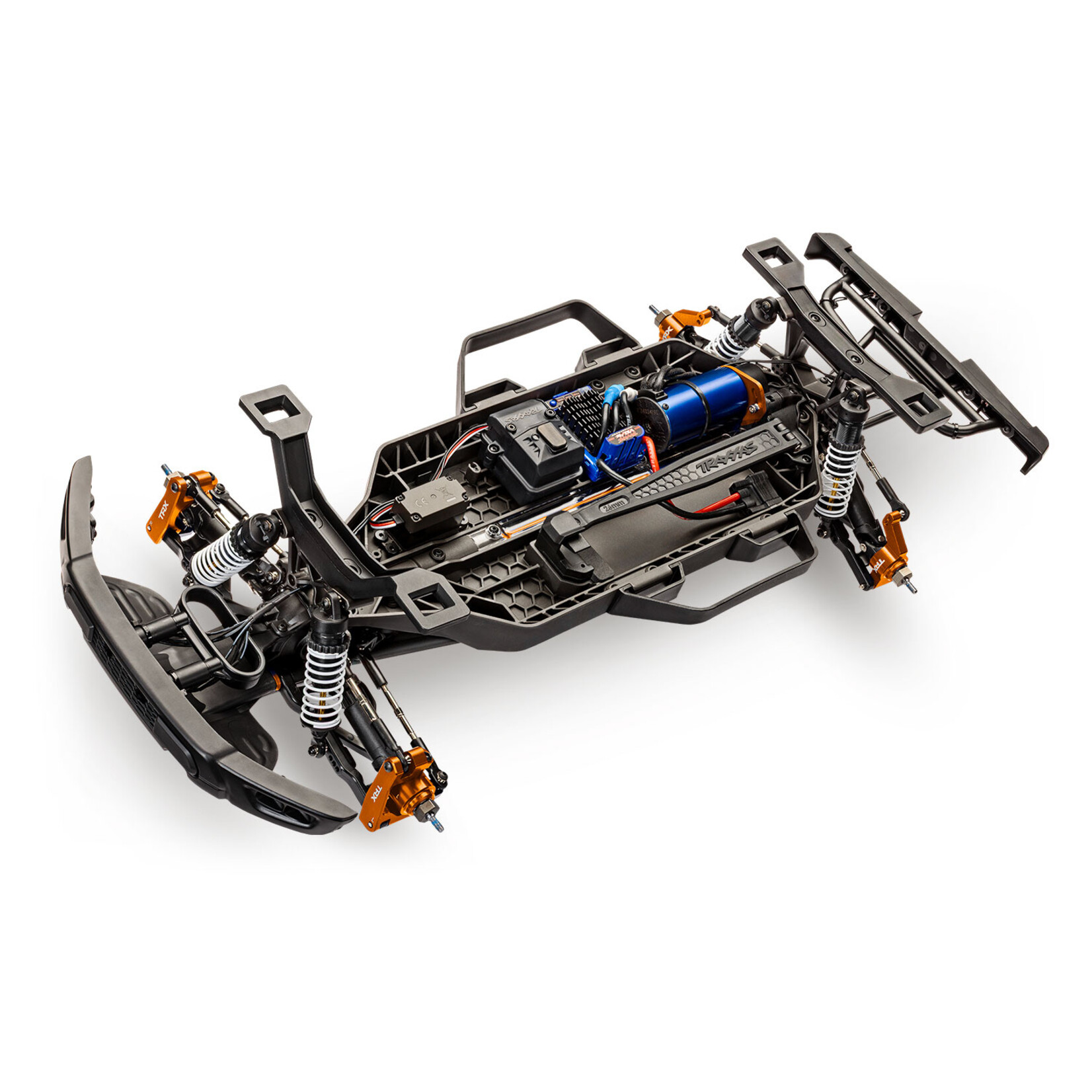

Chassis

- Extended modular composite tub design

- Heavy-duty front & rear shock towers

- Secure battery hold-down latch

- Side nerf bars for impact resistance

Steering

- 2275 waterproof metal-gear servo

- 347 oz-in torque @ 6.0 volts

- Aluminum center case w/ full bearings

- Dual bellcrank design with integrated servo saver

Drivetrain

- Full-time shaft-driven 4-wheel drive

- Center differential with 20-million weight oil

- Oil-filled, steel gear front and rear differentials

- Steel 32-pitch spur gear

- Anodized-aluminum center driveshaft

- Maxx-duty driveshafts

- Oversize diameter

- 6 mm axles

Wheels and Tires

- Licensed Ford^® replica option wheels

- 2″ outer diameter, 3″ inner diameter

- Licensed BFGoodrich^® All-Terrain T/A^® KO2 tires

- Large 114 mm diameter

- Sealed Ball Bearings

- Hex hardware with Rust-Resistant Black Oxide Coating

Includes:

Raptor R with Velineon VXL-4s ESC and 2400 Kv motor
Quick Start Guide
TQi 2.4 GHz radio system w/ wireless module
High quality maintenance tools

What You'll Need:

Batteries

Raptor R requires a single 2s, 3s, or 4s LiPo battery with iD^®.
Charger

Traxxas EZ-Peak^® Live charger (2971) is recommended for easy and fast charging performance.
AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.

4X4 / Clipless / Ready to Run / RTR
