NOTE: This item is available for IN STORE PURCHASE/CURBSIDE PICKUP ONLY

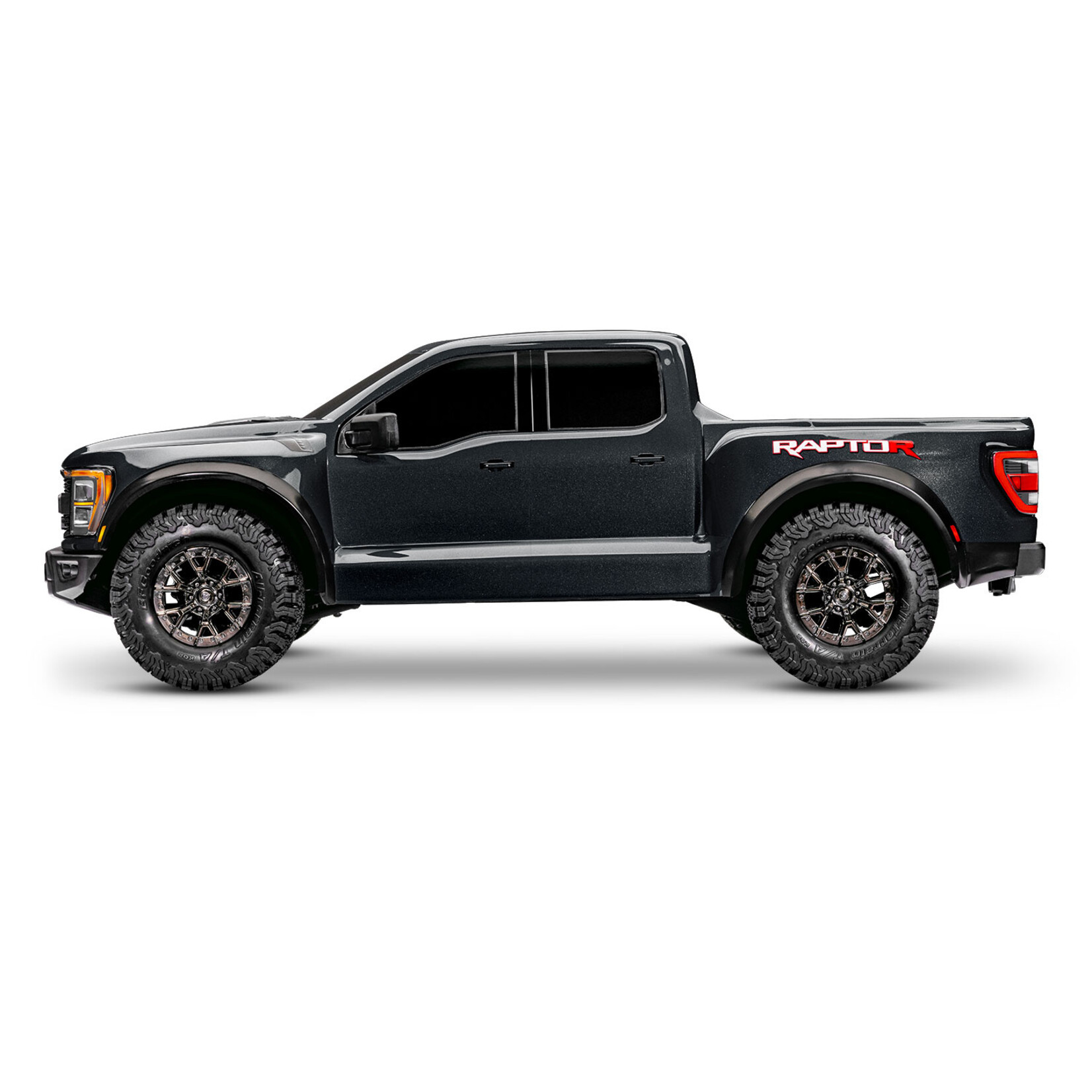

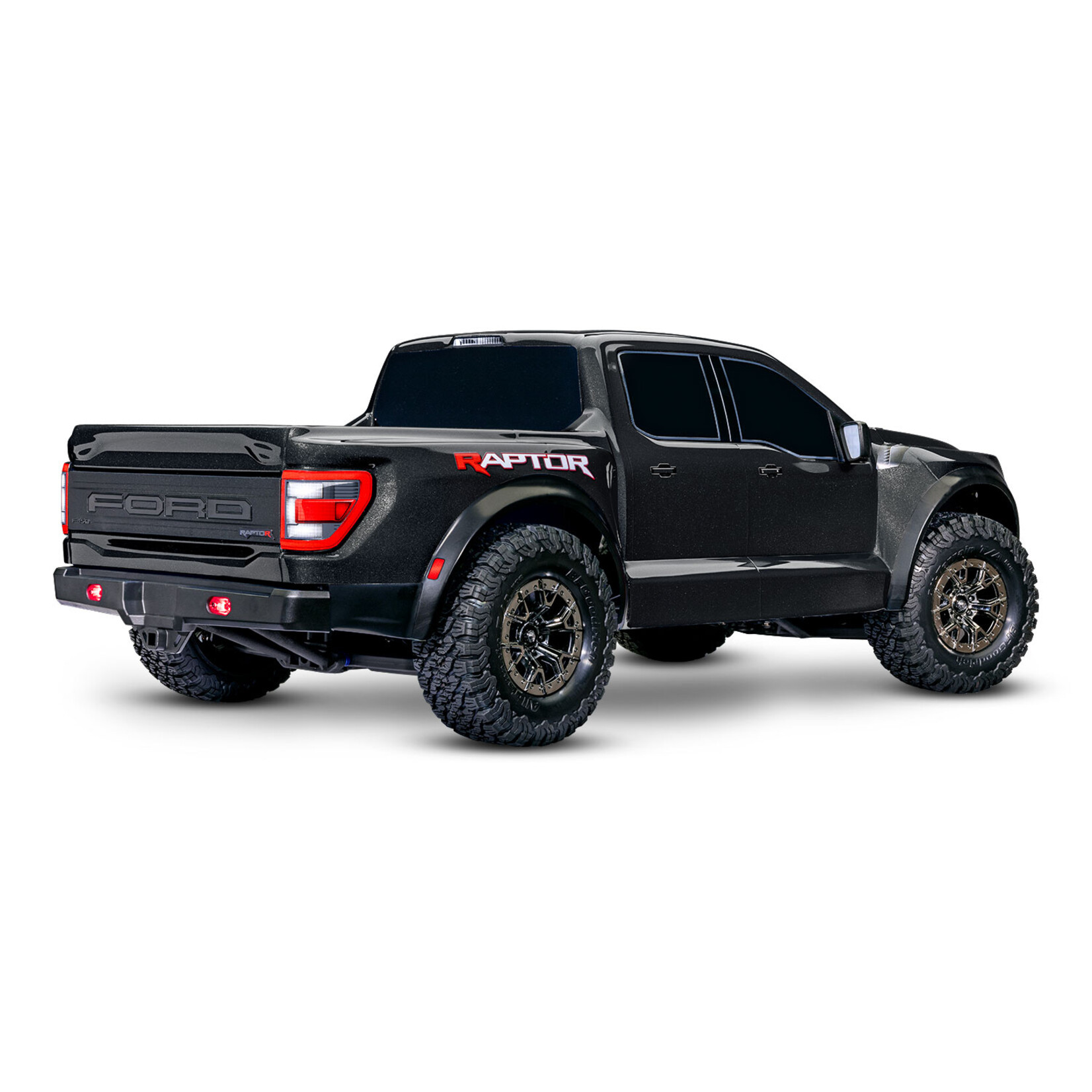

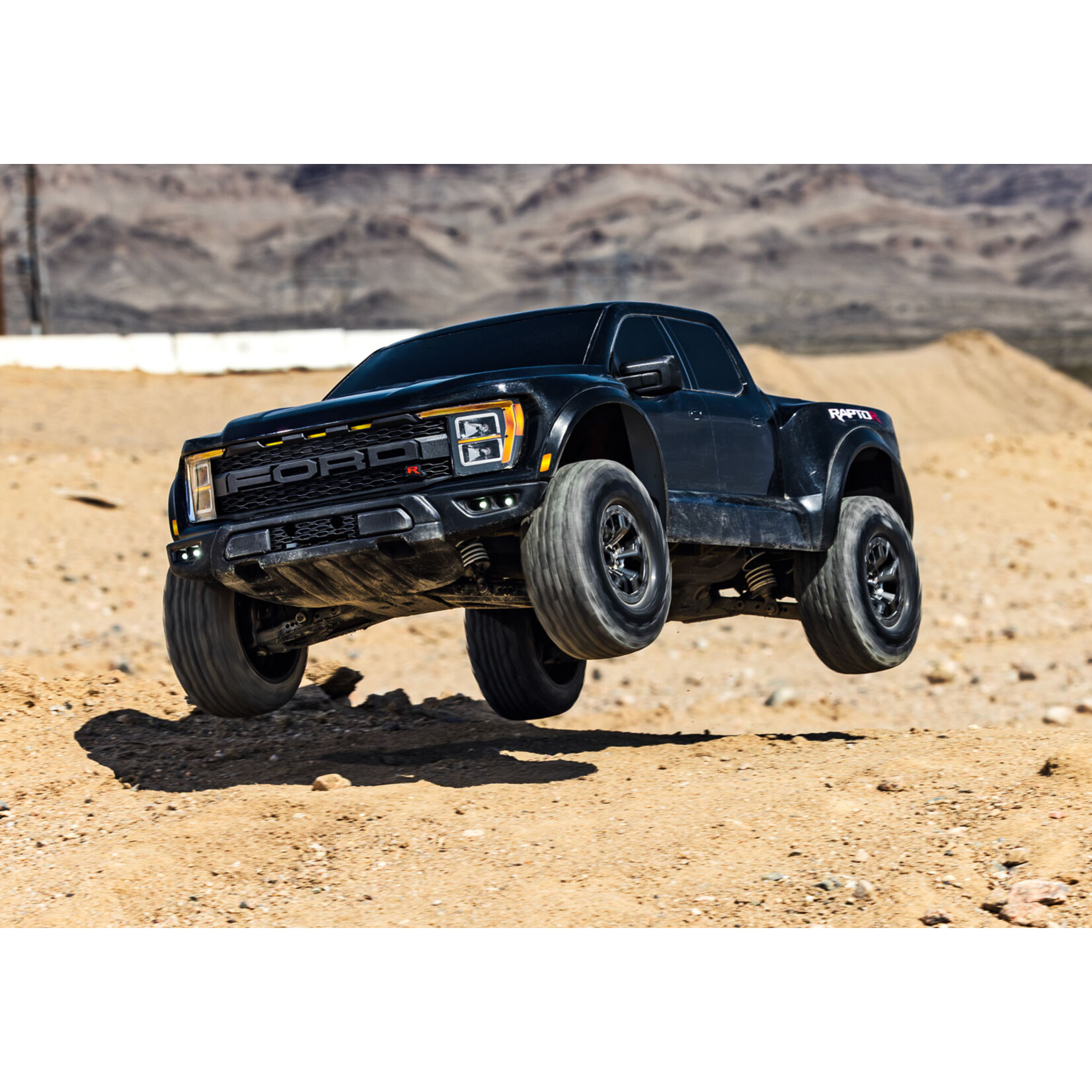

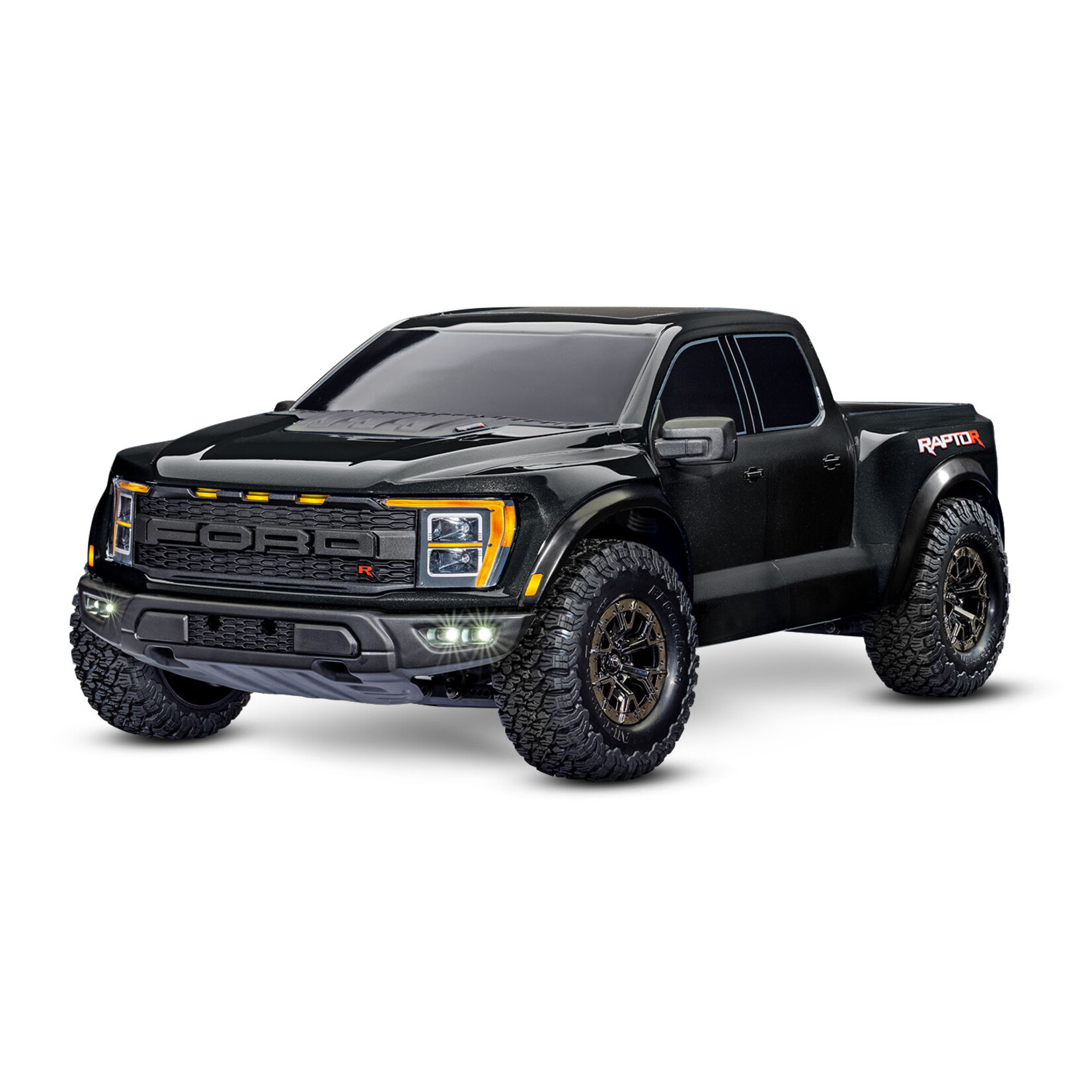

The Traxxas Raptor R™ is the newest member of the innovative Traxxas Pro Scale® lineup. Superb scale detail and proportion combine with 4X4 traction and extreme Velineon® brushless horsepower to faithfully capture the Raptor R™ driving experience. Only Traxxas Pro Scale® delivers both the exacting realism and unbeatable speed and durability performance drivers demand.
Features:
- Officially Licensed Ford® F-150® Raptor R™ Clipless Pro Scale® Body
- Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
- LED lighting in front and rear bumpers
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- 5mm output shaft
- Quick and easy removal
- Smooth appearance with no body posts or clips
- Extreme Heavy Duty Upgrade Kit Installed
- Made from our toughest cold-weather resistant composite
- Strengthened C-hubs, axle carriers, steering blocks, and shock towers
- Extreme heavy duty driveshafts
- Oversize diameter
- 6mm axles
- Steel wheel hexes
- VXL-3s™ Waterproof Electronic Speed Control
- Cooling fan with large heat sink
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Up to 60+ mph with 3s LiPo battery
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4GHz High Output Radio System
- TQi™ 2-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13ms frame rate and near-zero latency for responsive control
- 5-channel micro receiver (#6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
- Heavy duty suspension arms
- Adjustable 4 mm steel toe and camber links
- Oil-filled Ultra Shocks
- White powder-coated progressive springs
- Velineon® 3500 kV Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Brilliant blue-anodized finish

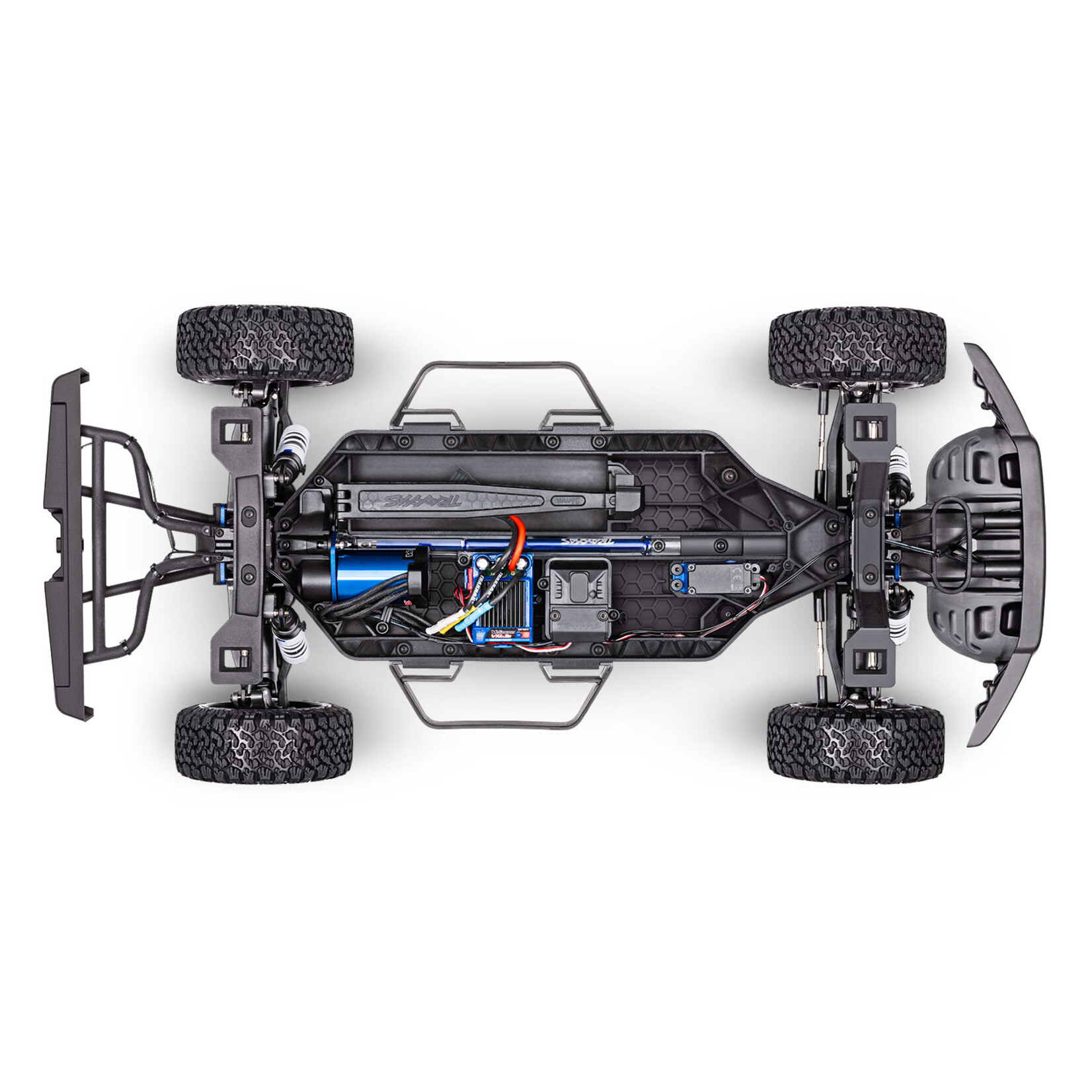

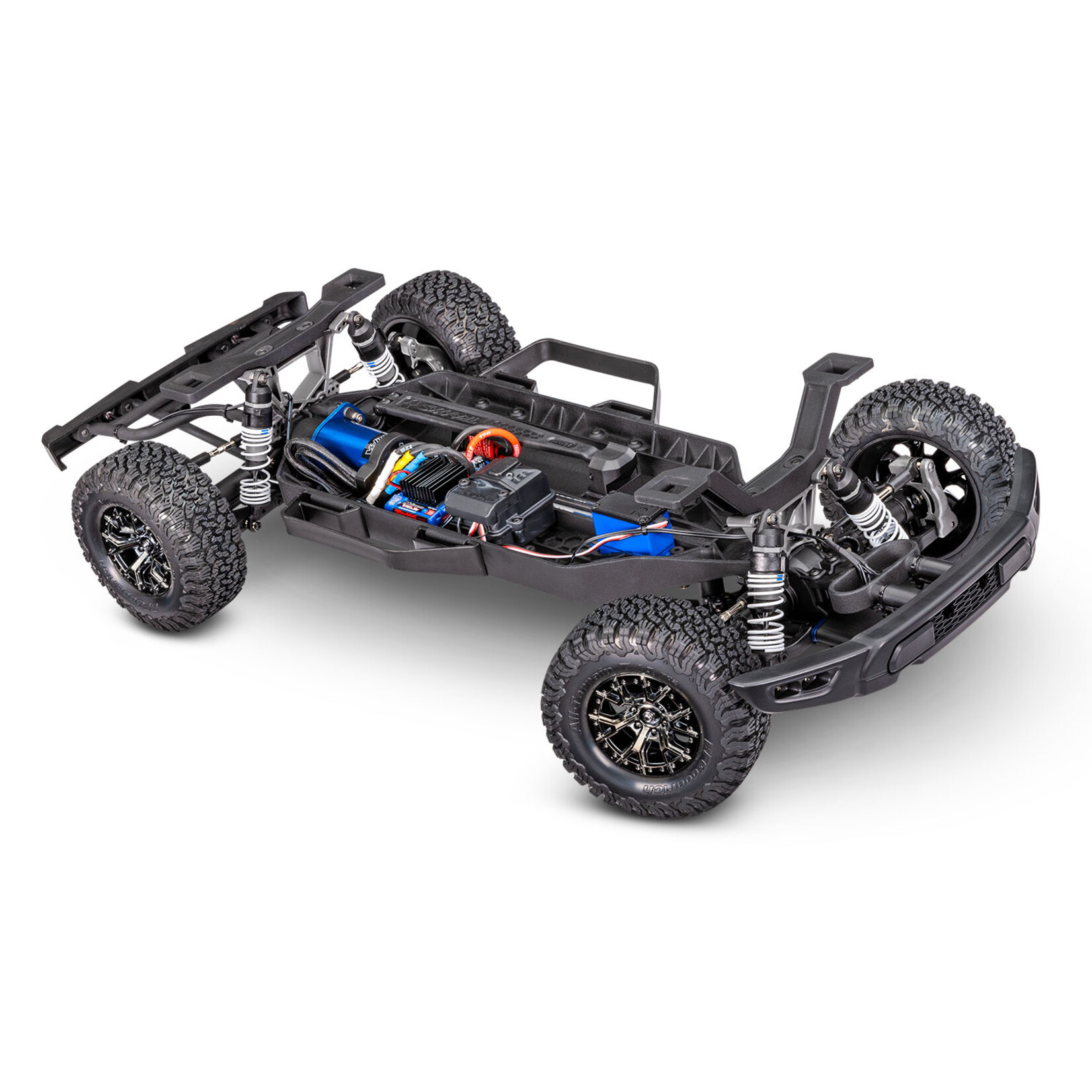

- Extended modular composite tub design
- Secure battery hold-down latch
- Side nerf bars for impact resistance
- Chassis-mounted #2075 servo
- Dual bellcrank design with integrated servo saver
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch steel spur gear
- Anodized-aluminum center driveshaft
- Licensed Ford® replica option wheels
- 2″ outer diameter, 3″ inner diameter
- Licensed BFGoodrich® All-Terrain T/A® KO2 tires
- Larger 114 mm diameter
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
Includes:
- Raptor R with Velineon® VXL-3s ESC and 3500 kV motor
- Quick Start Guide
- TQi™ 2.4 GHz radio system
- High quality maintenance tools
Needed To Complete:
- Raptor R requires a single NiMH or LiPo battery. See full list of batteries.
- Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.
- Four AA alkaline batteries for the transmitter.
Specs:
| Length: |
24.98 inches (637mm) |
| Front Track: |
11.63 inches (289mm) |
| Rear Track: |
11.63 inches (289mm) |
| Ground Clearance: |
1.38 inches (35mm)
2.05 inches (52mm) (center) |
| Weight (no battery): |
6.05 pounds (2.74kgs) |
| Height (overall): |
8.91 inches (226mm) |
| Wheelbase: |
15.11 inches (384mm) |
| Shock Length (front): |
3.45in (88mm) - Long |
| Shock Length (rear): |
3.98in (101mm) - XX-Long |
| Tire Diameter: |
4.5 x 1.9 inches (114mm x 48mm) |
| Wheel Diameter: |
2.2 inches (56mm) (inner)
3.0 inches (76mm) (outer) |
| Speed Control: |
Velineon® VXL-3s (#3355R) |
| Motor (electric): |
3500KV Velineon® Brushless |
| Overall Drive Ratio: |
37/13 ring/pinion gear ratio |
| Differential Type: |
Hardened steel bevel, sealed, limited slip |
| Gear Pitch: |
32 |
| Chassis Structure/Material: |
Composite tub |
| Drive System: |
Shaft-driven 4WD |
| Steering: |
Dual-bellcrank with integrated servo saver |
| Tires: |
Licensed BFGoodrich® All-Terrain T/A® KO2 2.2″ pre-glued with foam inserts |
| Tire Diameter: |
4.31 inches (114 mm) (front and rear) |
| Wheels (front/rear): |
Licensed 2.2″ Ford® Factory option wheel |
| Wheel Diameter: |
2.2 inches (56 mm) outer
3.0 inches (76 mm) inner |
| Radio System: |
2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver |
| Servo: |
2075 Waterproof Digital Servo (125oz-in torque) |
| Top Speed: |
60+ MPH with optional included gearing and 3s LiPo |
| Skill Level: |
1 |
| Battery Compartment (L/W/H): |
165mm (6.49″) x 50mm (1.95″) x 23/26mm (1.02″/0.90″) |
| Required Batteries: |
4 “AA” (transmitter), Vehicle (see battery finder) |
