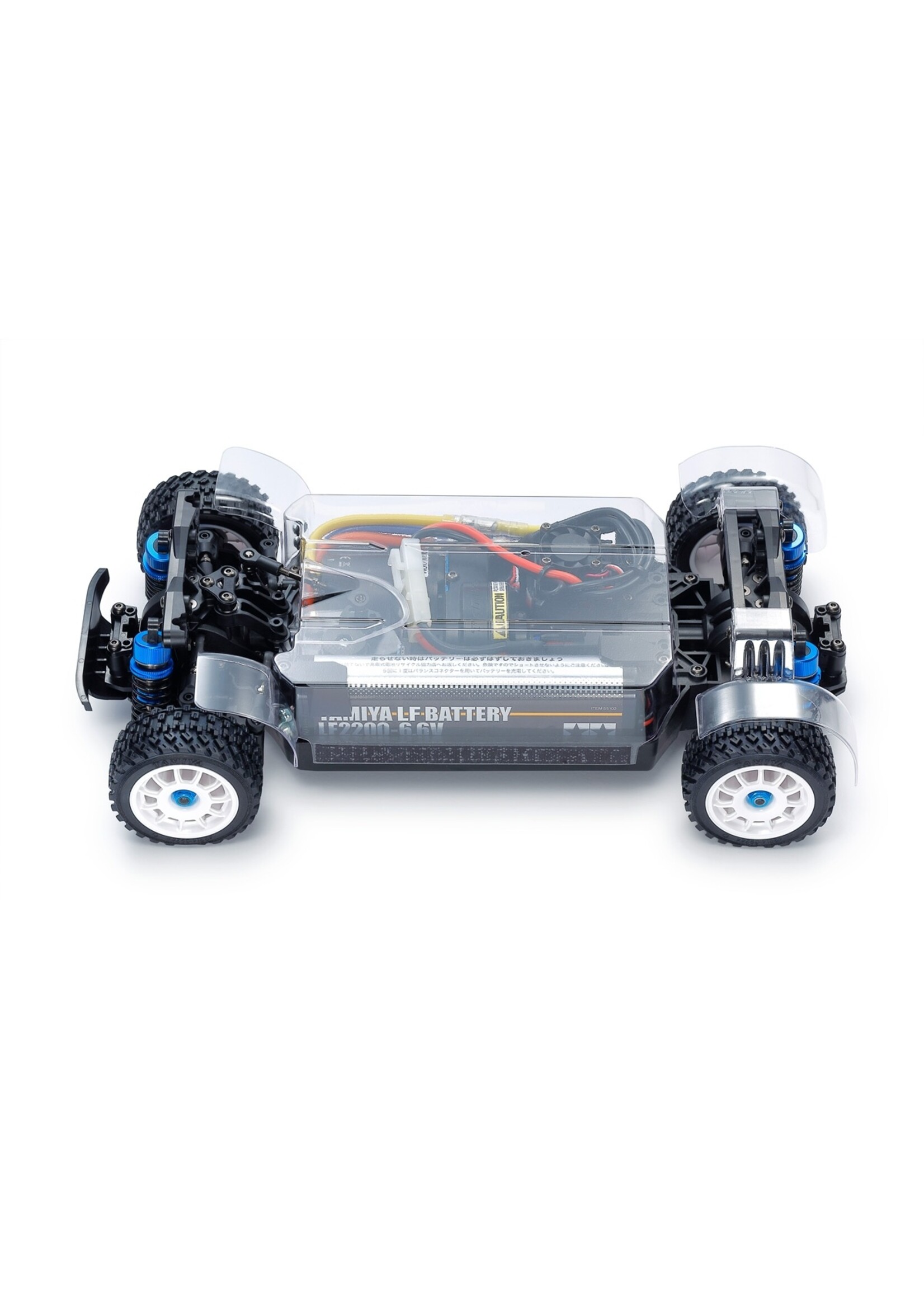

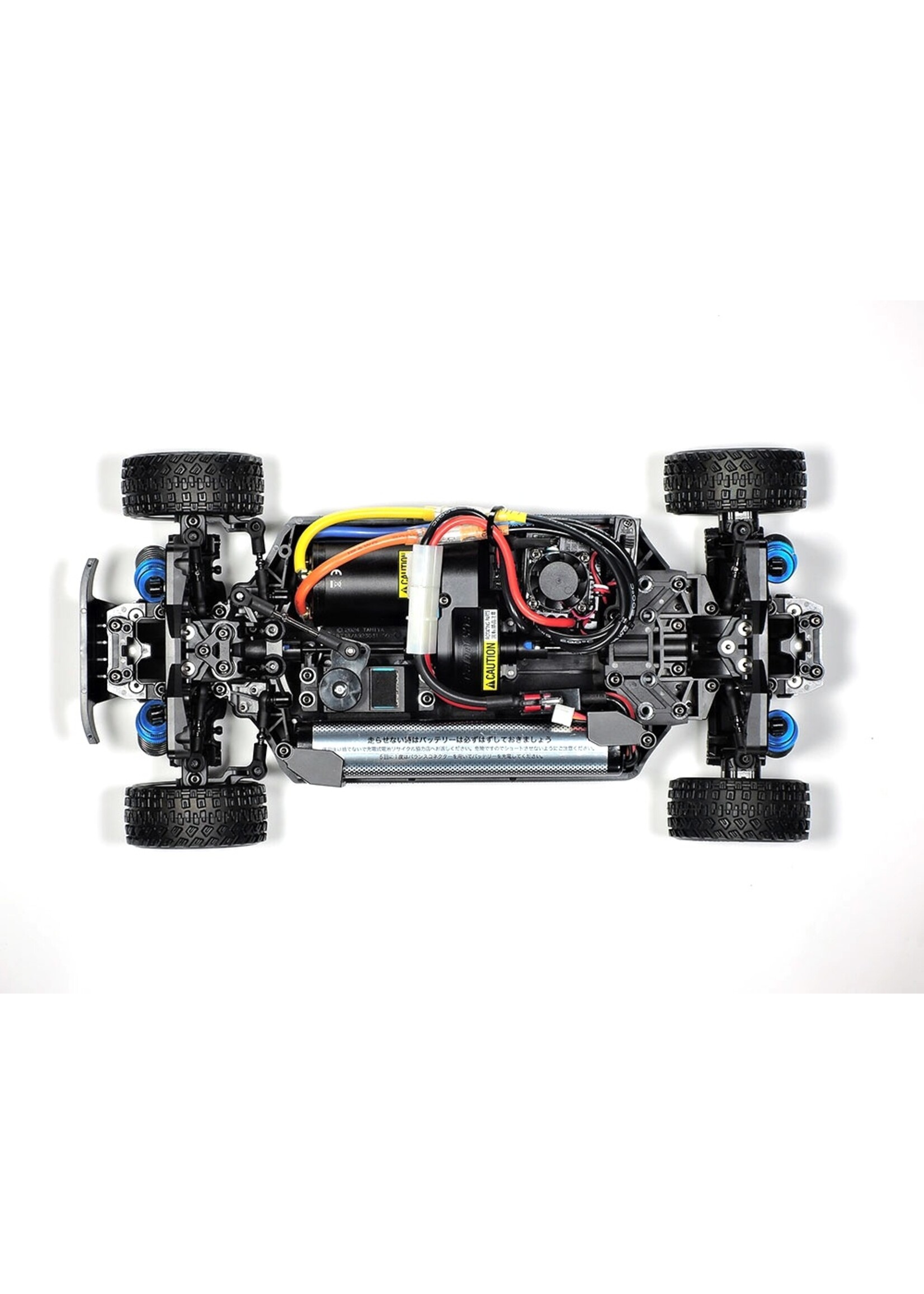

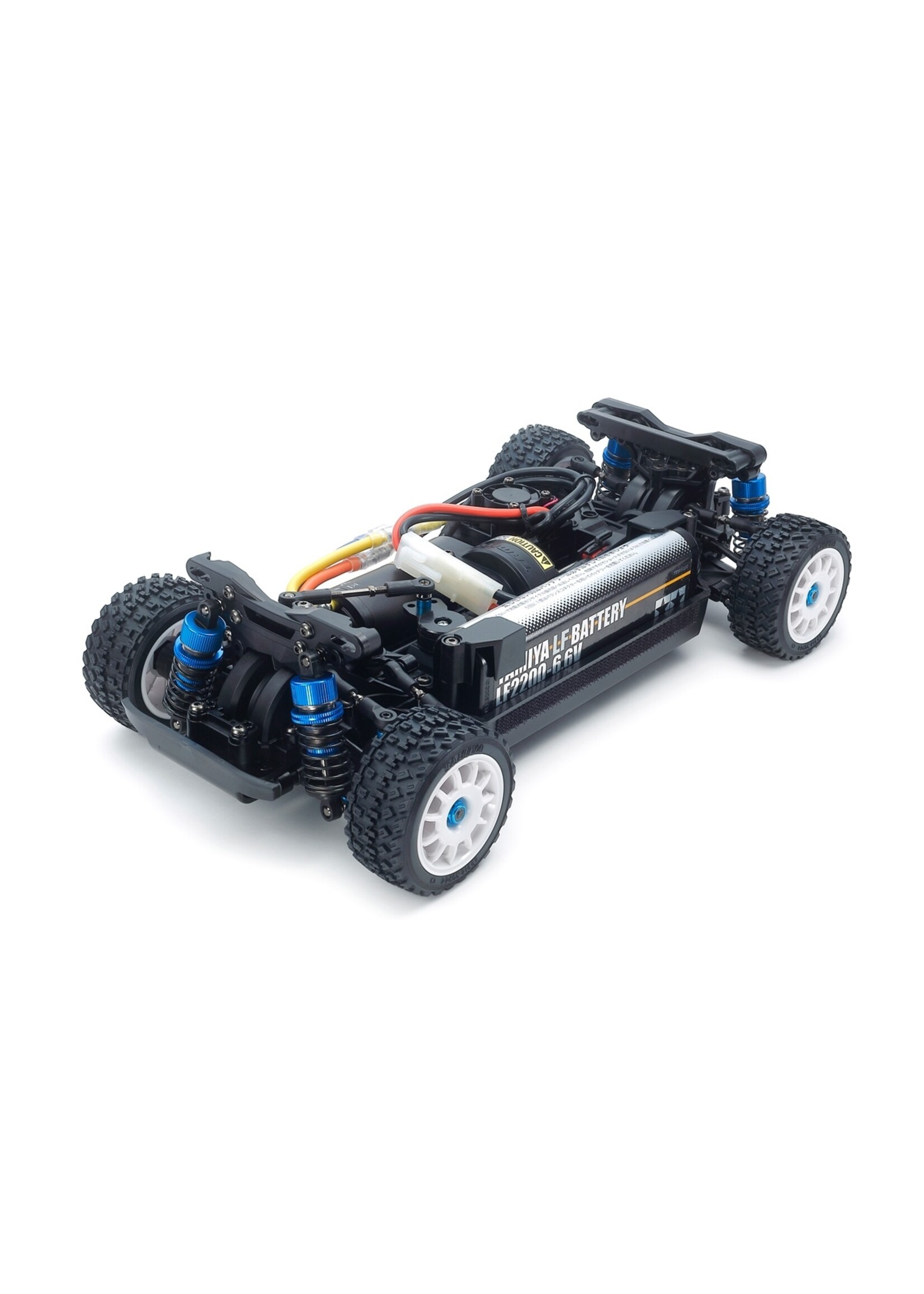

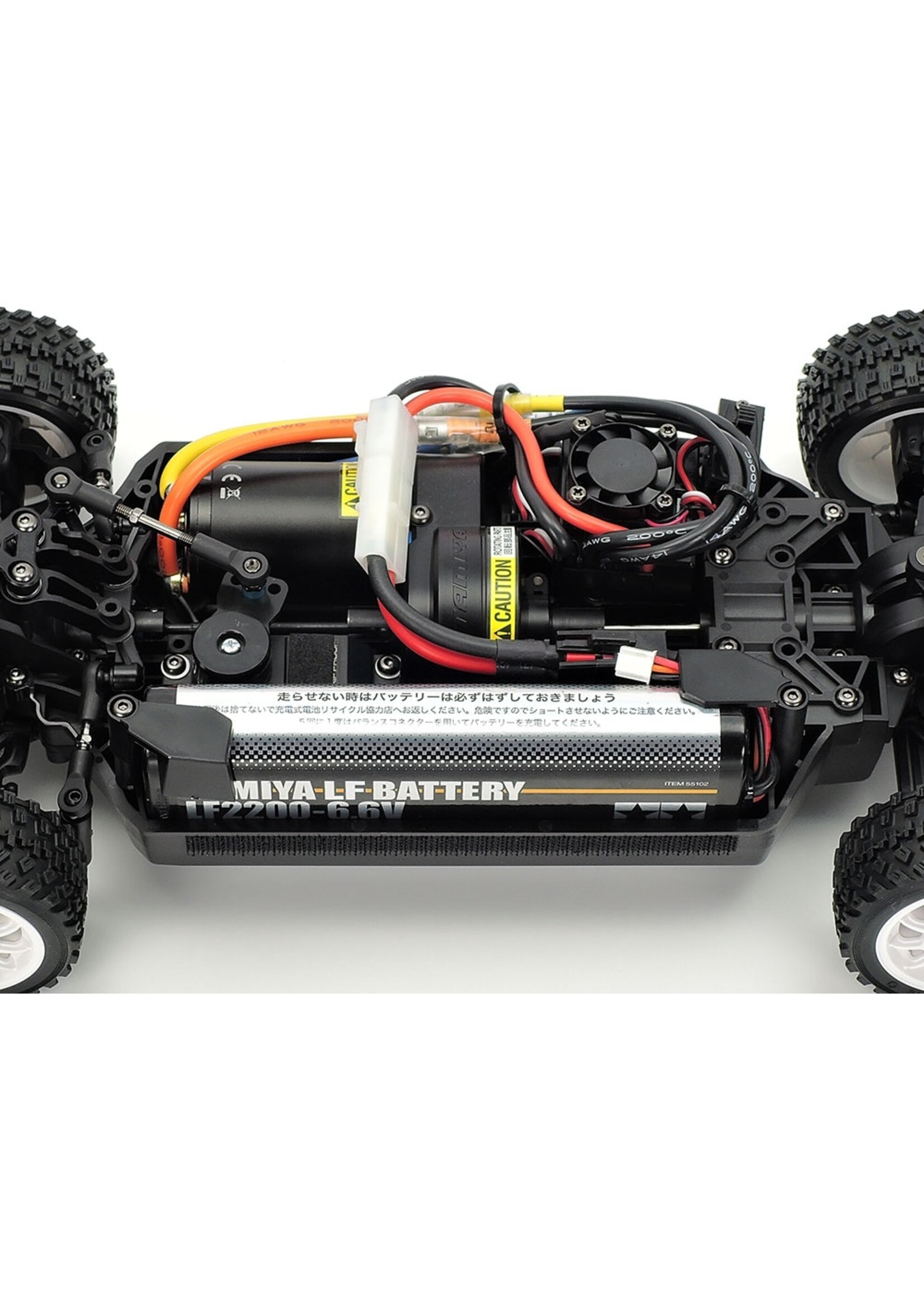

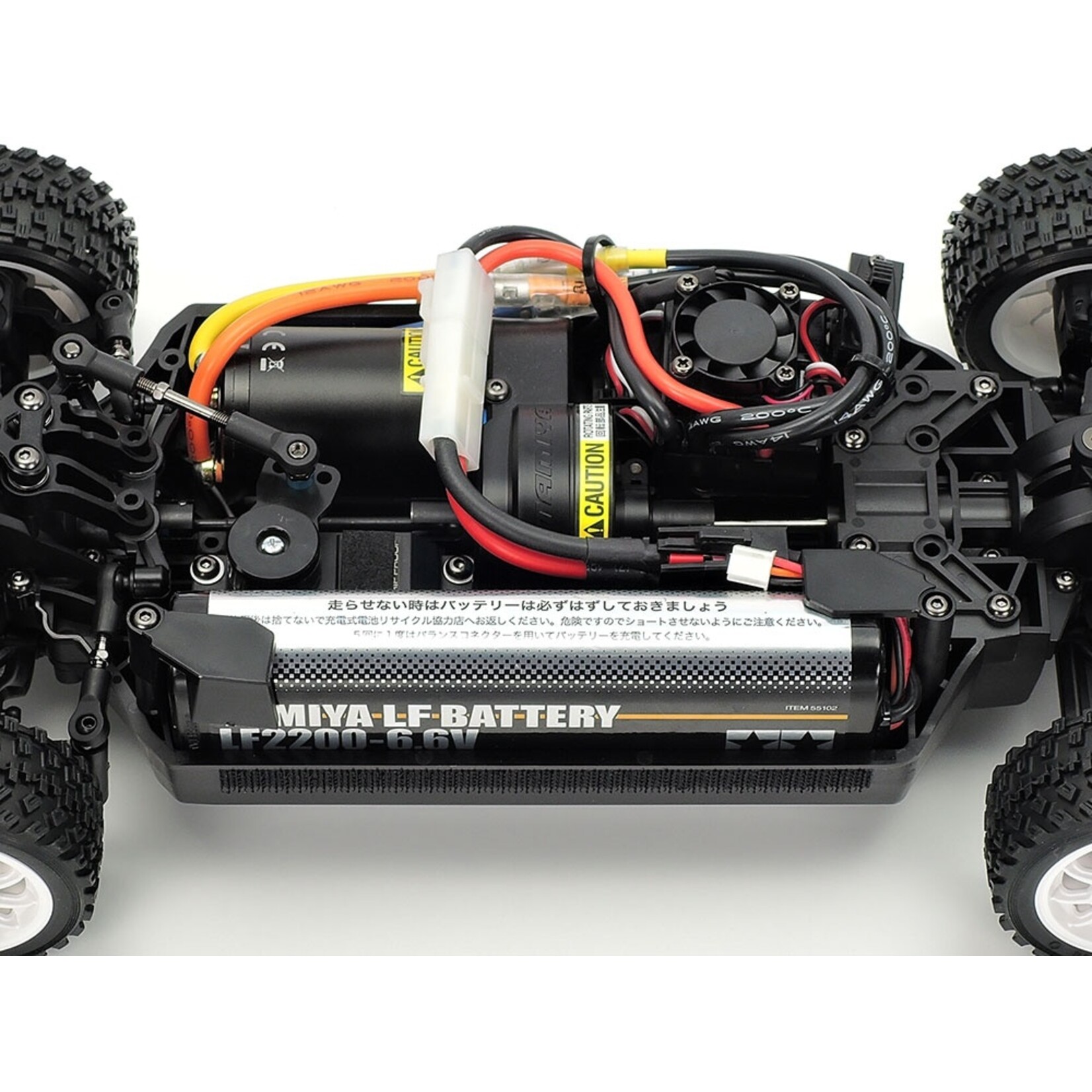

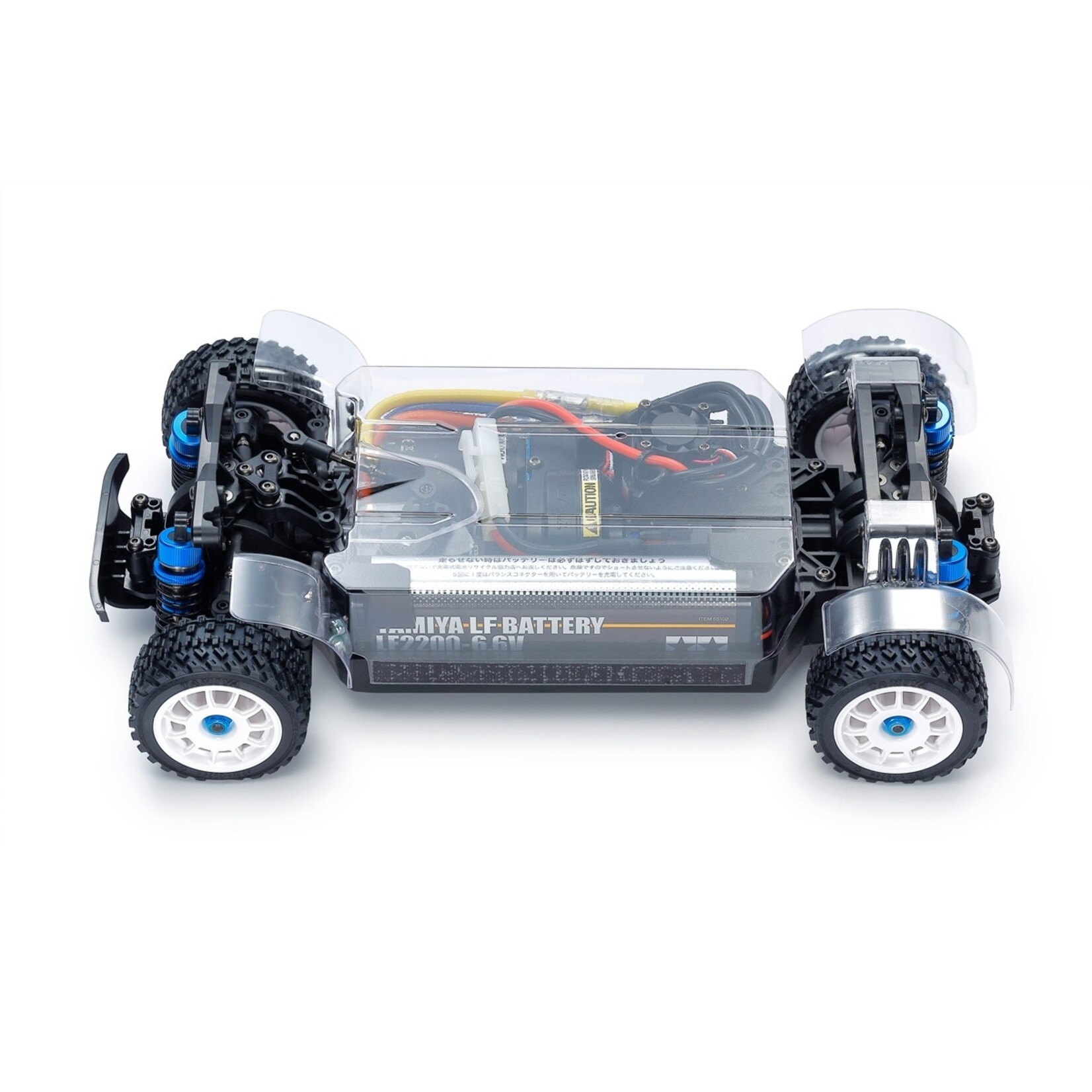

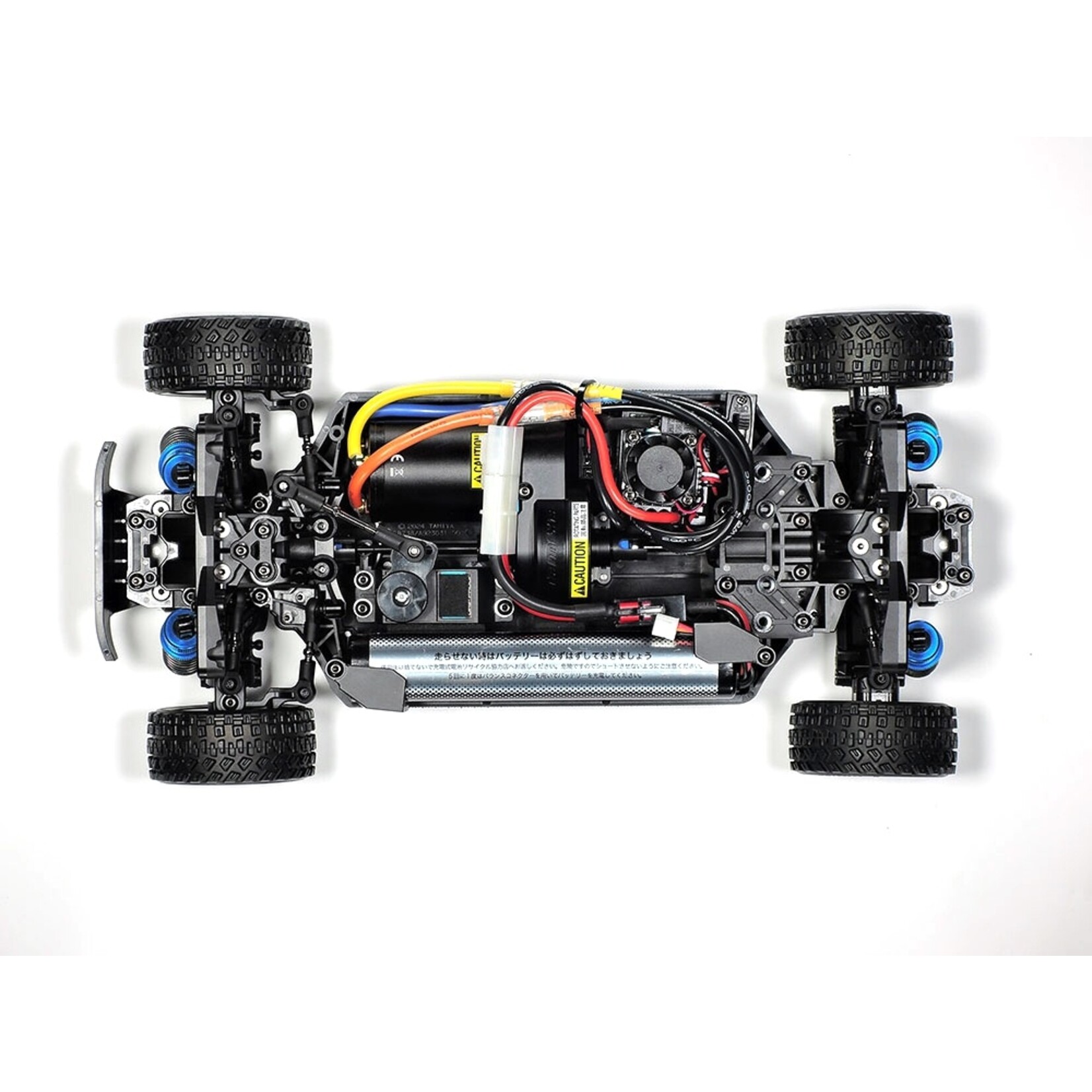

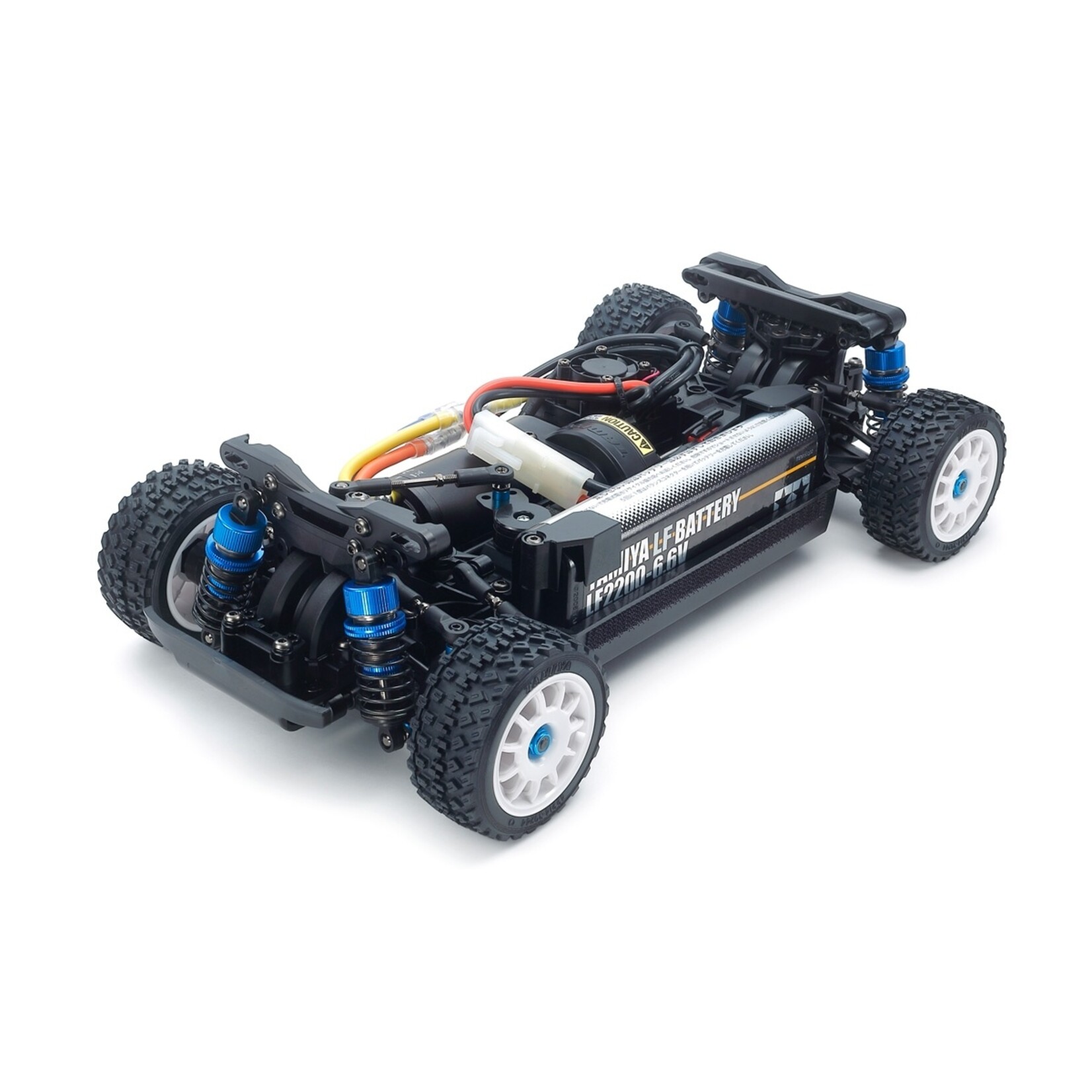

Tamiya TAM 58738 - XM-01 Pro Chassis Kit

Pro specification level R/C rally driving now comes to our M-Chassis size vehicle offerings! This shaft-driven 4WD chassis assembly kit (M-chassis size) features three types of wheelbases, new suspension components and a polycarbonate chassis cover. Just pick your favorite Tamiya M-chassis size rally body and you’re ready to take on dirt!

Features:

• Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
• Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
• Features a longitudinal upright battery pack position in the center-left for optimum balance.
• Front bumper with skid angle contributes to reduced surface contact.
• Aluminum dampers included.
• M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).
• Front and rear universal drive shafts included for optimum drive efficiency.
• Compatible with center diff setup and separately sold slipper clutch.
• Select Hop-Up Option parts for the XV-02 PRO chassis kit can be used with the XM-01.
• Low-profile servo is recommended. (Standard size servo can be used, but it meets the front inside polycarbonate cover.)
• Required to complete: 2-channel radio, low-profile servo, ESC, 540 size motor, M-chassis size body, 7.2-7.4volt battery with compatible charger.

Specs:

Adjustable Gear Ratio: Yes
Bearings: Includes full ball bearings
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: XM-01
Construction Type: Assembly Kit
Differential Type: Gear Oil-Filled Type
Drive Type: 4WD
Electronic Speed Control (esc): Sold Separately
Motor: Sold Separately
Required To Complete: 2-channel radio, Low-Profile steering servo, ESC, 540-Size motor, 7.2-7.4volt battery & battery charger, and M-chassis spec body set
Scale: 1/10
Shock Damper: Oil-filled damper
Suspension: Fully Independent Double Wishbone
Terrain Use: Multi-Purpose
