Tamiya 58528 - 1/10 Subaru Impreza WRX STI - XV-01 Chassis Kit

This 1/10 scale R/C assembly kit reproduces the Subaru Impreza WRX STI Team Arai which took victory at Rd.5 Rally Hokkaido during the 2011 Asia-Pacific Rally Championship. The sporty form of the Impreza has been realistically reproduced by the polycarbonate body and the roof intake and square-shaped side mirrors are depicted with separate parts for a sharp finish. The distinctive markings of the race car can be easily depicted with the included stickers. In addition, rally block tires with inner sponges are matched with 16-spoke wheels to allow you to experience dynamic R/C rally driving.

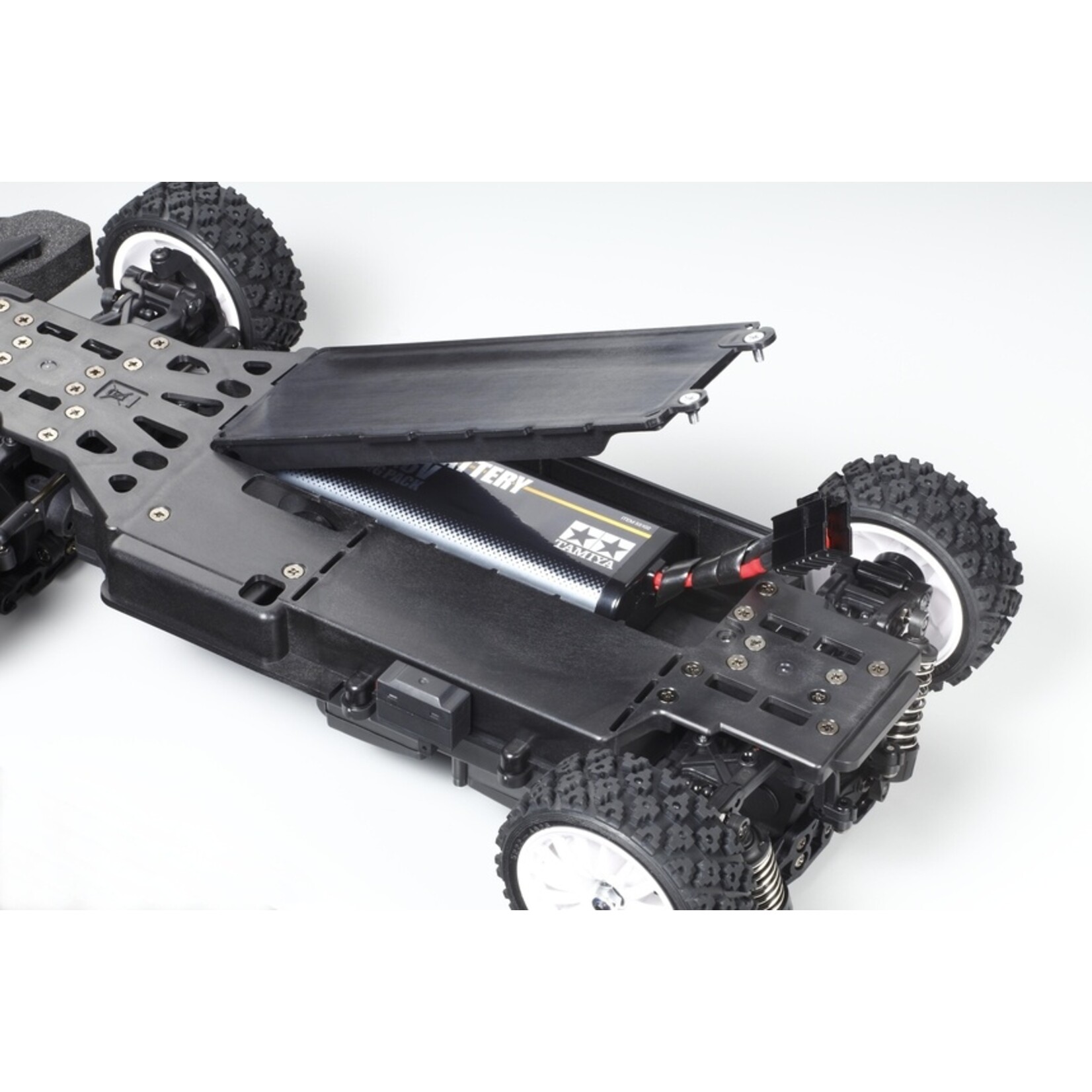

XV-01 Chassis

The XV-01 chassis offers exciting R/C driving action on both tarmac and gravel surfaces. It features a front-motor, belt-driven 4WD layout with the gearboxes, drive belt, battery, and R/C unit areas protected by covers against dirt and debris. Holes in the bottom of the chassis further help remove any debris which manages to get onboard to ensure unhindered off-road performance. In addition, detachable wheel well liners help prevent mud and gravel intrusion. Gear differential units enable customization with different viscosities of differential oils.

Features:

• Length: 434mm, Width: 188mm, Height: 150mm
• Wheelbase: 257mm
• Monocoque Chassis Frame
• Belt-Driven 4WD
• F/R Gear Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• CVA Shock Units
• Gear Ratio＝8.04:1 (When used with kit-standard 68T spur and 22T pinion gears)
• Full Ball Bearings
• Type 540 Motor
• Requires 2-channel radio, servo ,electronic speed controller, 7.2 volt battery & charger, Tamiya PS paint (sold separately)

Specs:

Adjustable Gear Ratio: Yes
Bearings: Shielded ball bearing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: XV-01
Construction Type: Assembly Kit
Differential Type Gear-Type: (Oil-Filled)
Drive Type: 4WD
Led Light Buckets: no
Led Lights: no
Motor: 540-brushed type
Requires: A 2-channel radio, steering servo, ESC, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: Oil-filled damper
Suspension: 4-wheel fully independent double wishbone
Terrain Use: Multi-Purpose

Browse Polycarbonate Paints offered by Tamiya

CHOKING HAZARD -- Small parts. Not for children under 3 yrs.
