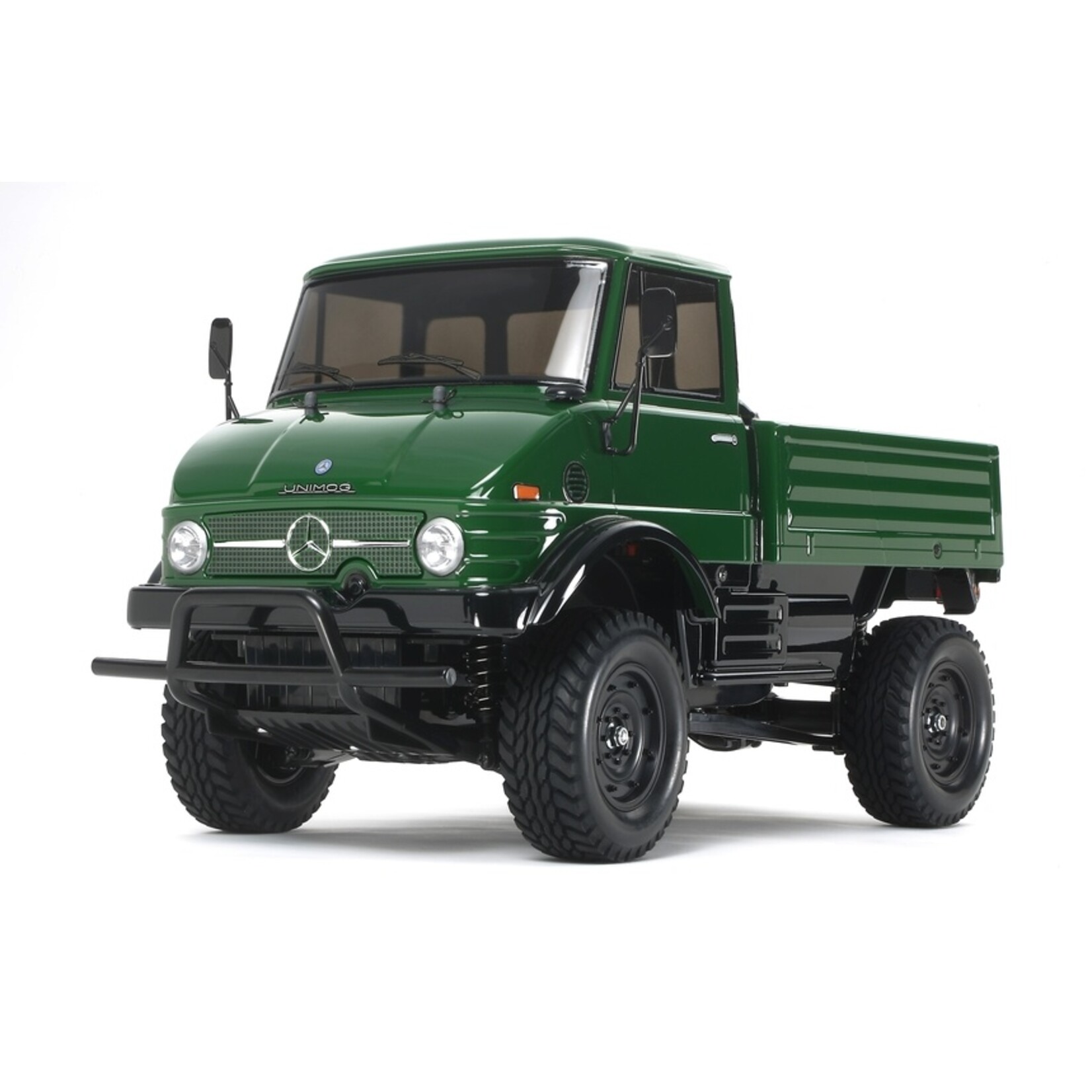

Tamiya 58457 - 1/10 Mercedes-Benz Unimog 406 - CC-01 Chassis Kit

In the 1960s, Mercedes-Benz built the Unimog 406 Series. These multi-purpose trucks were known for being 4WD and having exceptional off-road performance. The Unimog can be used in environments such as deserts, jungles and mountains. Unimog is an acronym for "UNIversal-Motor-Gerat" with Gerat translating to mean machine or device. The vehicles featured an inline 6-cylinder diesel engine, 8-speed transmission, and front/rear lockable differentials.

All Terrain Chassis

Excellent ground-hugging, long-stroke suspension system consists of front double wishbone and rear 4-link rigid setups and is equipped with 4 oil dampers. Highly reliable and efficient full-time 4WD system features a front-mounted motor, which transmits power to the front wheels via the gearbox and to the rear wheels via the propeller shaft with universal joints. Front and rear differentials enable smooth cornering. For even greater off-road performance on rough terrain, the rear differential may be locked during assembly.

Features:

• 1/10 R/C assembly kit of the Mercedes-Benz Unimog 406 Series U900
• Type 540 motor is included
• The polycarbonate shell accurately captures the unique form of the Unimog
• Front & rear light cases and side mirrors are precisely reproduced in durable ABS resin
• Front bumper and large block tires with realistic tread pattern
• Fully-enclosed front and rear gearboxes are equipped with differential gears
• 4-wheel double wishbone suspension features oil dampers
• 2 white and 2 red 5mm LED lights (Total 4) are included
• Comes with LED Light Unit TLU-01 (Item 53909)
• TEU-104BK ESC included
• Length: 407mm
• Width: 220mm
• Height: 229mm
• Weight: 1460g
• Wheelbase: 242mm
• Tread (Front & Rear): 163mm
• Tire Width/Diameter (Front & Rear): 33/90mm Ladder Frame Bathtub Type Chassis
• Longitudinally Placed Motor Shaft-Driven Full-Time 4WD
• Front and Rear 3-Bevel Differential Gears
• Front Suspension: Double Wishbone, Rear Suspension: 4-Link Rigid
• Front and Rear CVA Oil Dampers
• Gear Ratio＝1：14.67
• Electronic Speed Controller included
• RS540 Type Motor Included

Specs:

Adjustable Gear Ratio: yes
Bearings: metal and plastic bushings
Body Material: Clear Polycarbonate
Chassis Material: plastic
Construction Type: assembly kit
Differential Type: gear
Drive Type: gearbox
Led Light Buckets: yes
Led Lights: yes
Motor: 540-brushed type
Requires: A 7.2 battery & charger
Scale: 1/10
Shock Damper: oil-filled damper
Suspension: independent front/solid axle rear
Terrain Use: multi-purpose
