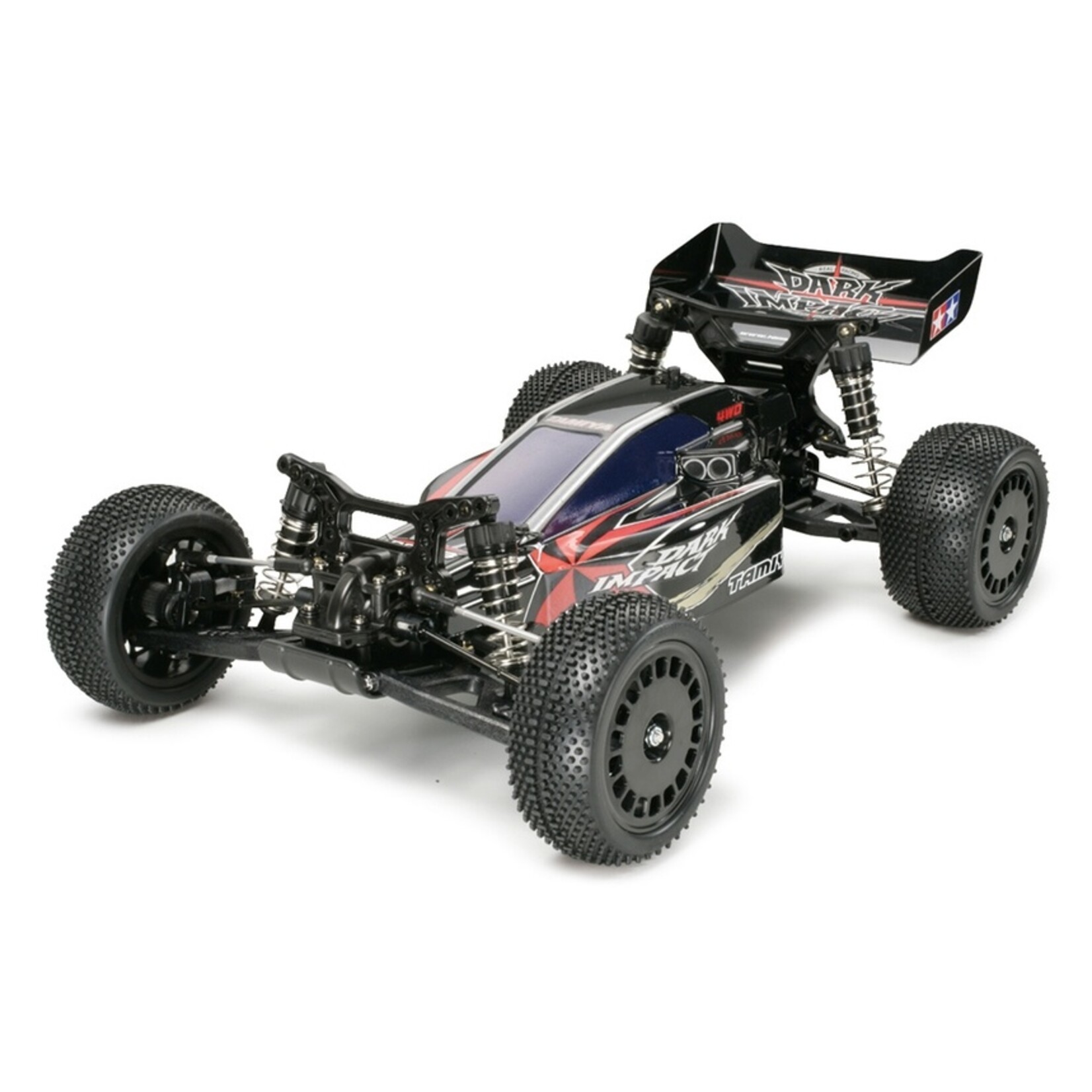

Tamiya 1/10 Dark Impact 4WD - DF-03 Chassis Kit

Barcode number: 4950344583706
$209.30
Excl. tax

This 1/10 scale 4WD buggy is specially designed to excel in off-road buggy performance driving.

Out of stock

Available in store

Close
Add to wish list Add to wish list

Tamiya 58370 - 1/10 Dark Impact 4WD - DF-03 Chassis Kit

This 1/10 scale 4WD buggy is specially designed to excel in off-road buggy performance driving. It features a mid-rear mounted motor and longitudinally mounted battery for optimum balance for jumping. Battery is inserted through the bottom of the chassis, eliminating need to remove body, which makes routine maintenance easy and quick. High performance shaft drive 4WD combines with suspension system featuring extra-long suspension arms for improved stability and off-road handling.

DF-03: Refined Shaft-Drive 4WD Chassis

Durable monocoque bathtub frame sees the heavy battery and R/C mechanism components mounted low and central for the best vehicle balance. Even the oil dampers are located within the wheelbase for greater stability and cornering performance. Compact gearboxes are equipped with ball differentials, and the propeller shaft directly links to the front bevel gear to decrease power loss during transmission. 4-wheel double wishbone suspension with long suspension arms provides excellent shock absorption, and a variety of attachment positions gives the driver many options when tuning.

Features:

  • High performance 1/10 4WD buggy chassis designed for off-road running.
  • 4-wheel independent double wishbone suspension features CVA oil dampers and extra-long suspension arms for improved stability and handling
  • Includes sealed diff gearbox indispensable for off-road running
  • Features full ball bearings
  • Electronic Speed Controller (Not Included)
  • Includes 540 type motor
  • Newly designed off-road tires and wheels featured larger diameter and width, and new tread pattern designed for excellent running and control on hard dirt tracks
  • Tires: High Density Spike Tires K (4WD/Front, 62/25), High Density Spike Tires K (Rear, 62/35)
  • Wheels: Large Dish Wheels (4WD/Front, 62/25), Large Dish Wheels (Rear 62/35)
  • 2.94 internal gear ratio.
  • Requires: 2-channel radio, steering servo, ESC, 7.2volt battery & compatible charger, and Tamiya PS paint.

Specs:

Adjustable Gear Ratio: Yes
Bearings: Shielded ball bearing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: DF-03
Construction Type: Assembly Kit
Differential Type: Ball Pressure Plate
Drive Type: 4WD
Electronic Speed Control (esc): Not Included
Motor Brushed: 540 Type
Requires: A 2-channel radio, steering servo, ESC, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: Fully Independent Double Wishbone
Terrain Use: Off-Road

1/10 / 4WD / Buggy Kit / Car Kit / Dark Impact / DF-03 Chassis / Kit
