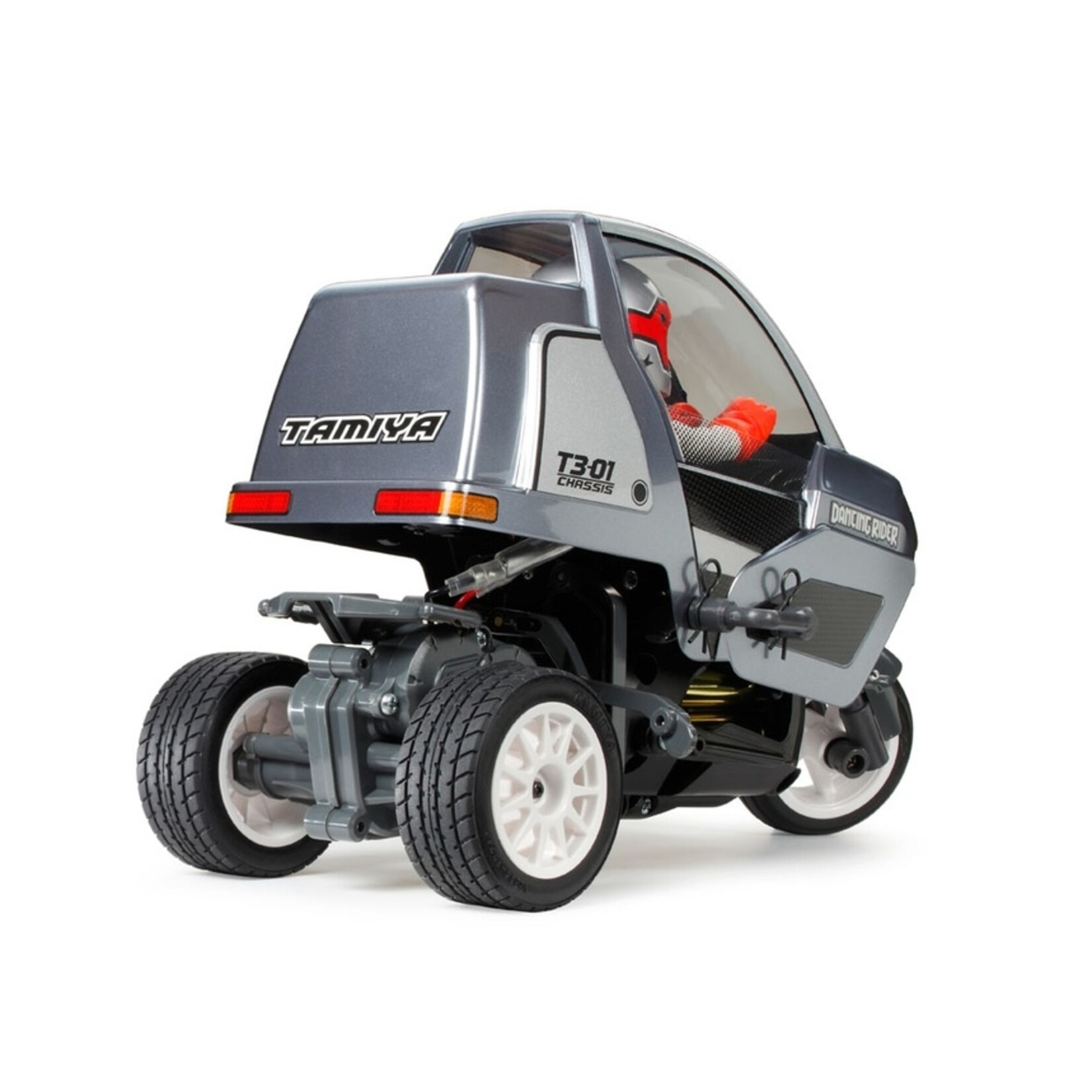

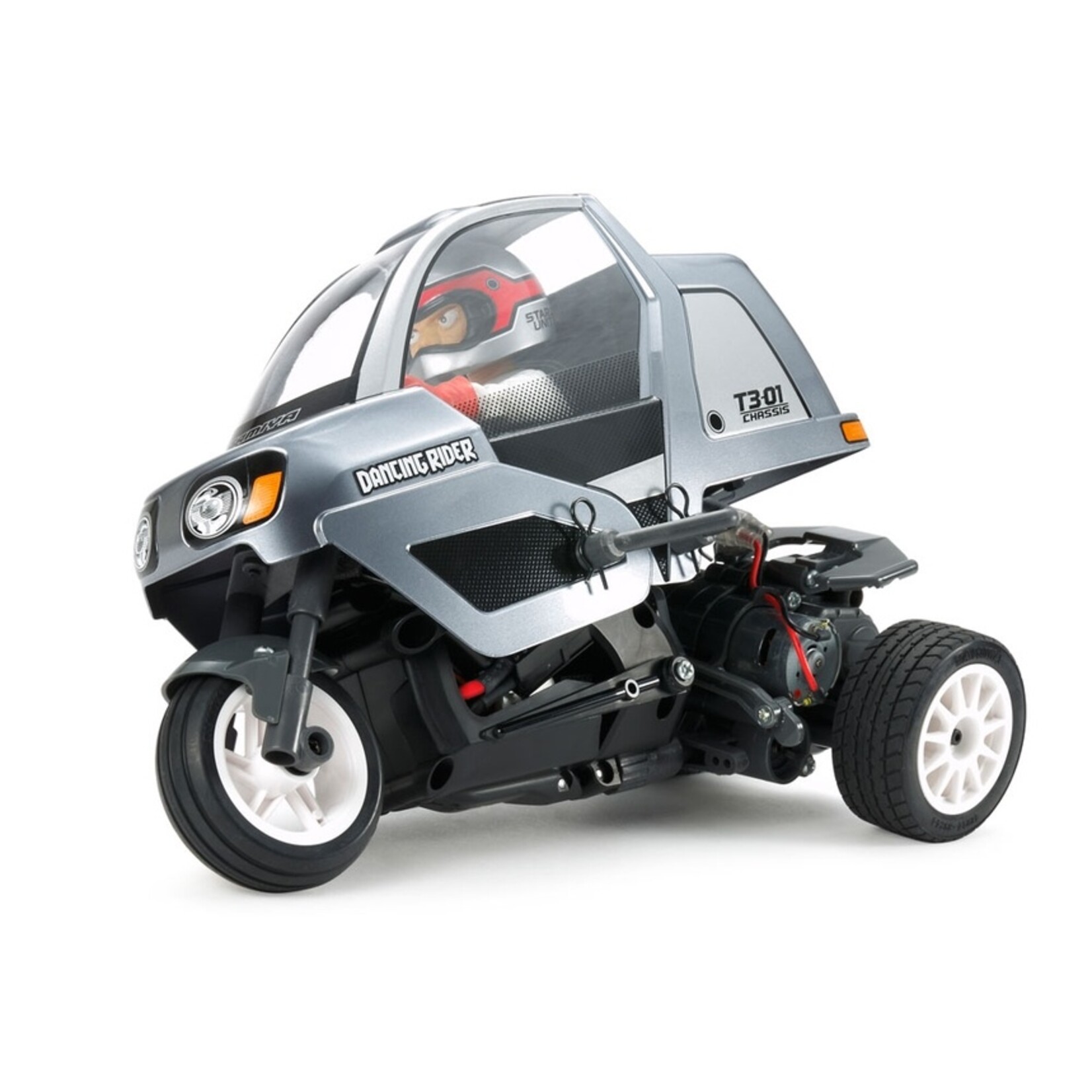

Tamiya 57405 - 1/8 Dancing Rider Trike - T3-01 Chassis Kit

This radio control model replicates delivery trikes widely seen making deliveries in Japan. When the model turns, the 3-wheel chassis "leans" into the corner much like their full-size counterparts. The 3-wheel chassis features the motor in the rear section, with the battery in the front. The two sections are linked in the middle, and a steering servo leans the entire front section left and right to effect turns. Furthermore, support arms are linked to the steering servo, and help to right the model if it happens to tip over.

T3-01 Chassis: Designed for Fun

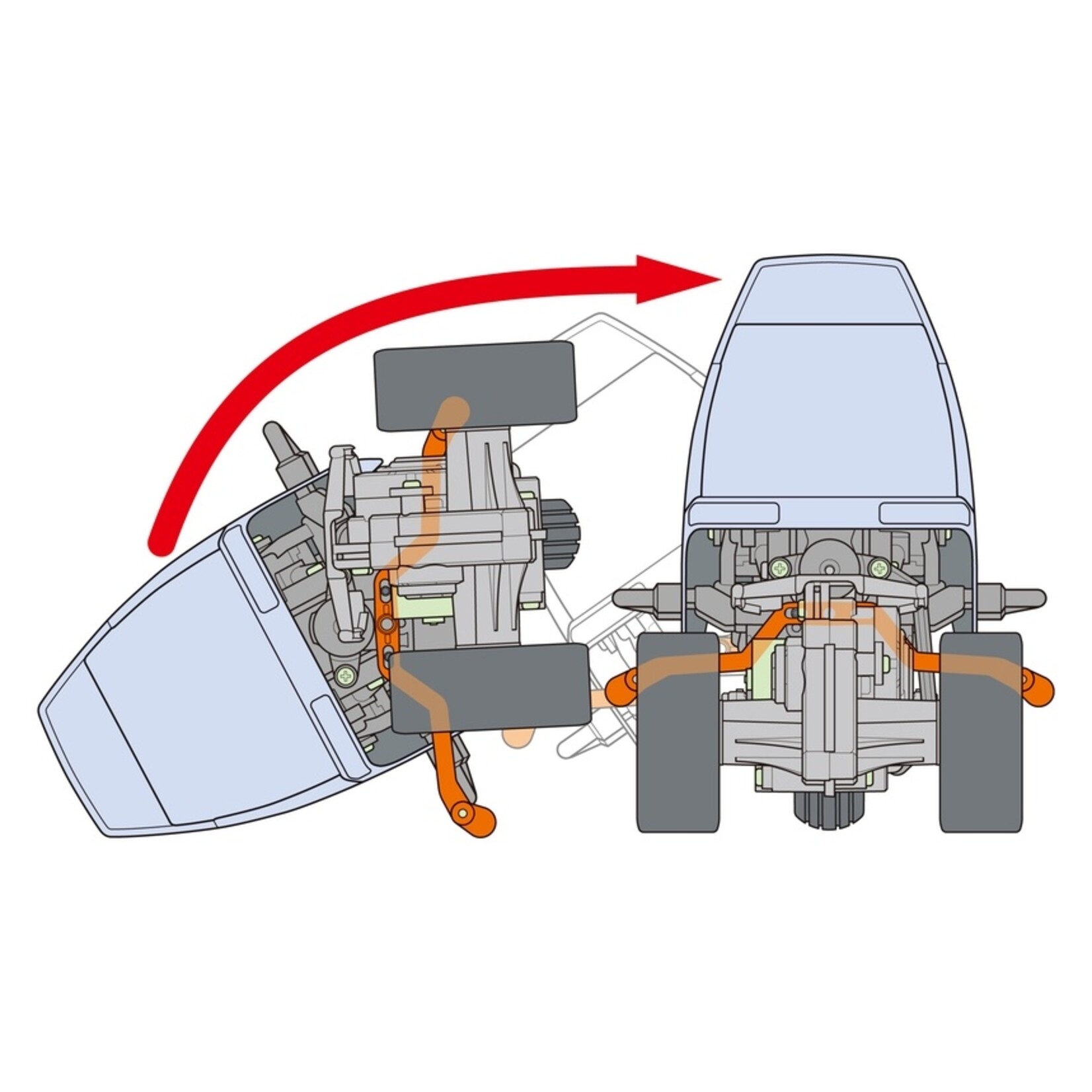

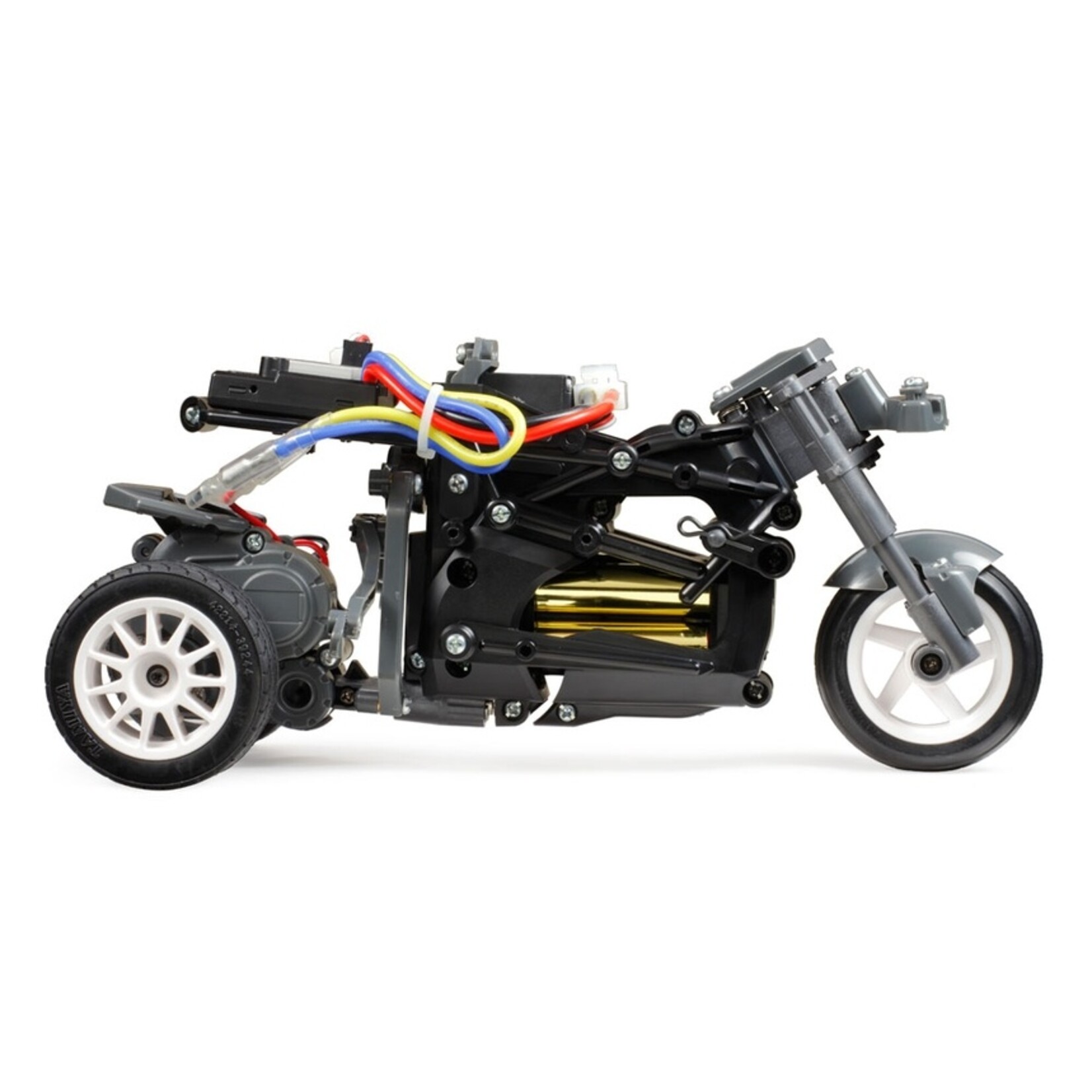

The T3-01 is a three-wheeled chassis comprised of two main sections (front and rear) connected by a center link; the front section houses R/C equipment and the power source, while the rear holds the integrated gearbox and motor. Positioned in the back of the front section, the servo applies motion to the rear section, which in turn makes the front lean. Support arms are moved by the servo, and help the model to self-right in the event that it turns onto its side. At the front, a telescopic fork has a built-in coil spring, while the rear features a cam-slide setup with cams on the rotating pitch axis: sliding left and right, they actuate the built-in coil spring to cushion the rear. A planetary differential gear is integrated into the rear axle.

Features:

• Length: 260mm
• Width: 135mm
• Height: 175mm
• Wheelbase: 196mm
• Tread (Rear): 91mm
• Tire Width/Diameter 21/61mm (Front), 25/59mm (Rear)
• Monocoque Chassis
• Rear-Wheel Drive
• Planetary Differential Gear
• Front Suspension: Telescopic Fork
• Rear Suspension: Cam-Slide
• Gear Ratio = 10.7:1
• Requires: 2-channel radio, steering servo, Electronic Speed Controller, battery pack & charger (sold separately)
• Type 370 Motor included

Note: Battery pack size must be under 66x36x15mm

Specs:

Adjustable Gear Ratio: Fixed
Bearings: Plastic Bushings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Type: T3-01
Construction Type: Assembly Kit
Differential Type: Gear-Type
Drive Type: 2WD
Electronic Speed Control (esc): Sold Separately
Led Lights: Sold Separately
Motor: 370-Size Brushed
Requires: A 2-Channel Radio, steering servo, ESC, battery pack, and Tamiya PS Spray Paint
Scale: 1/8
Shock Damper: Friction Type
Terrain Use: On-Road
