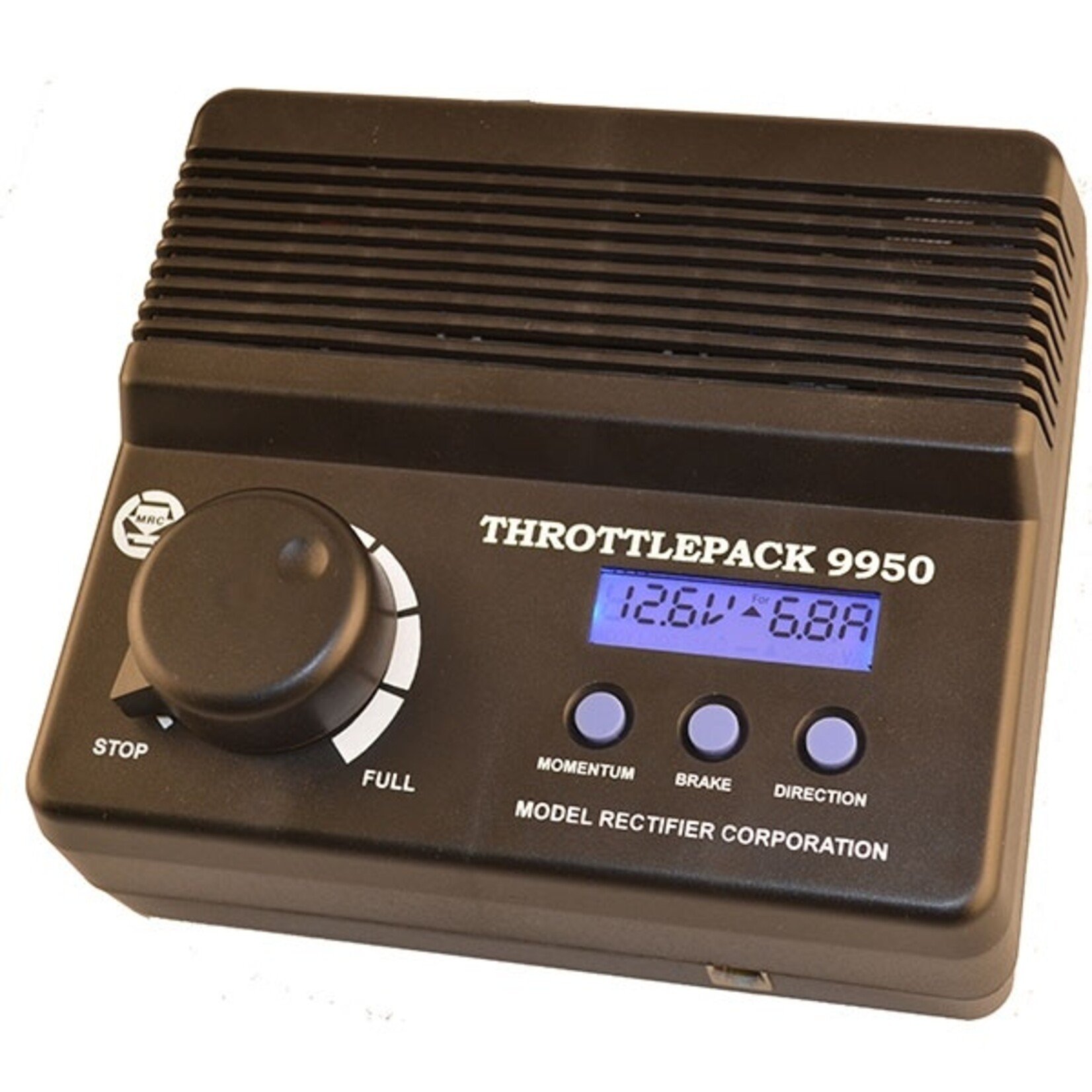

MRC 1320 - Throttlepack 9950 DC, 125 Watts

When you power up the 9950 it starts in regular DC power pack mode. The 9950 offers a power rating of 125 watts. The LCD display will display the voltage level from the throttle to the track and current load, in amps, that you are using. It will also display the direction of the locomotive, momentum in the on or off position, and overload condition (short circuit or maximum current draw). The 9950 offers momentum capability and a voltage booster switch so it is perfect for operating large G gauge layouts.

When in DC operating model you may follow standard DC operating instructions if you are using DC only locomotives.

Features:

• 125 watts (7.5 amps) - huge power output
• Includes momentum circuitry
• Braking switch
• Direction switch
• Runs all scales of DC operated trains
• HO or G voltage selection button
• LCD screen displays volts and amps

In addition, the 9950 can also be used in:

• LGB MFX mode to use one loco equipped with an LGB MFX equipped sound decoder.
• DCC mode to use one loco equipped with an NMRA compatible decoder.

In DCC mode the 9950 will only run a locomotive set to the default address of #3. Use the throttle to control the speed of the loco. The direction can ONLY be changed when the loco is at rest with the throttle set to zero.
