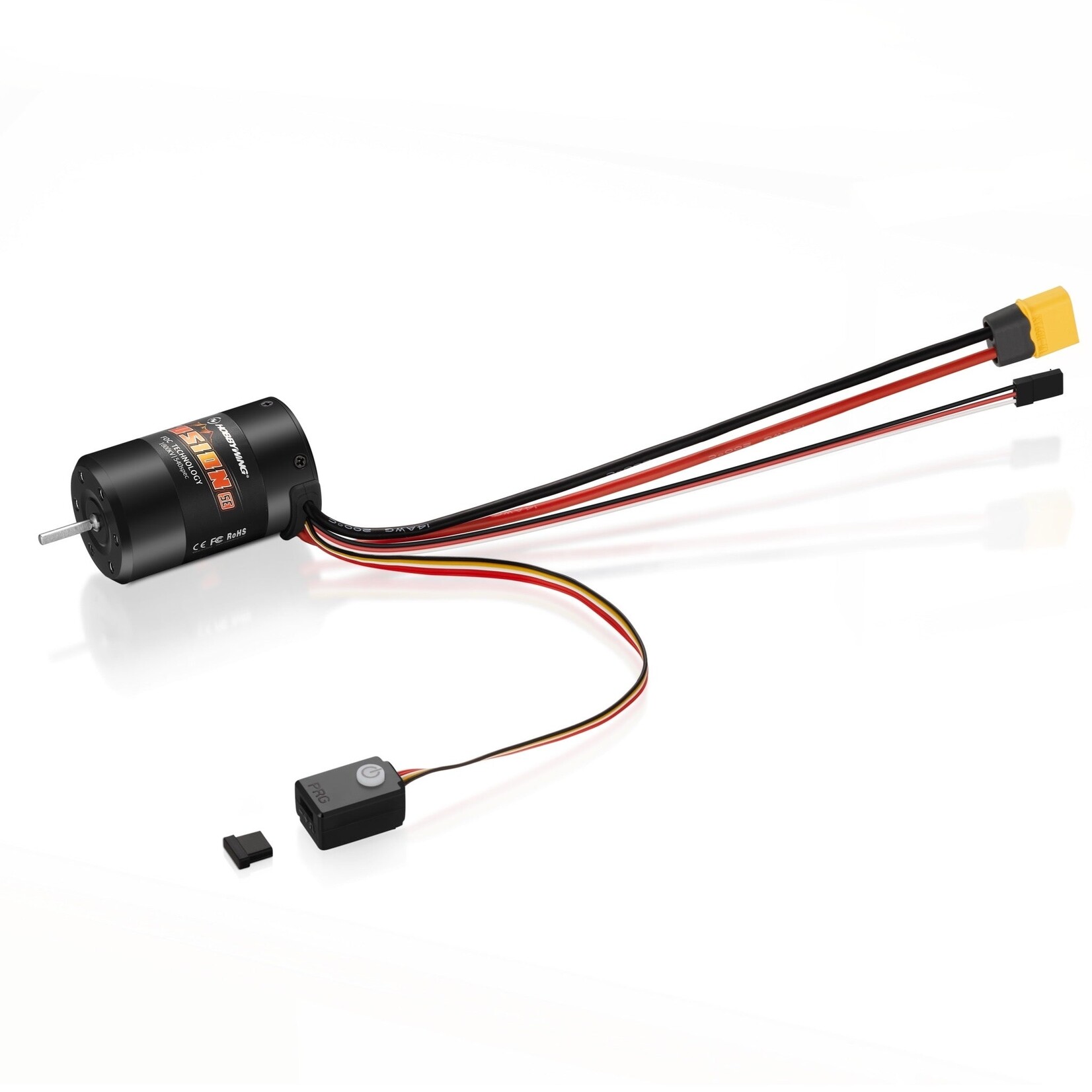

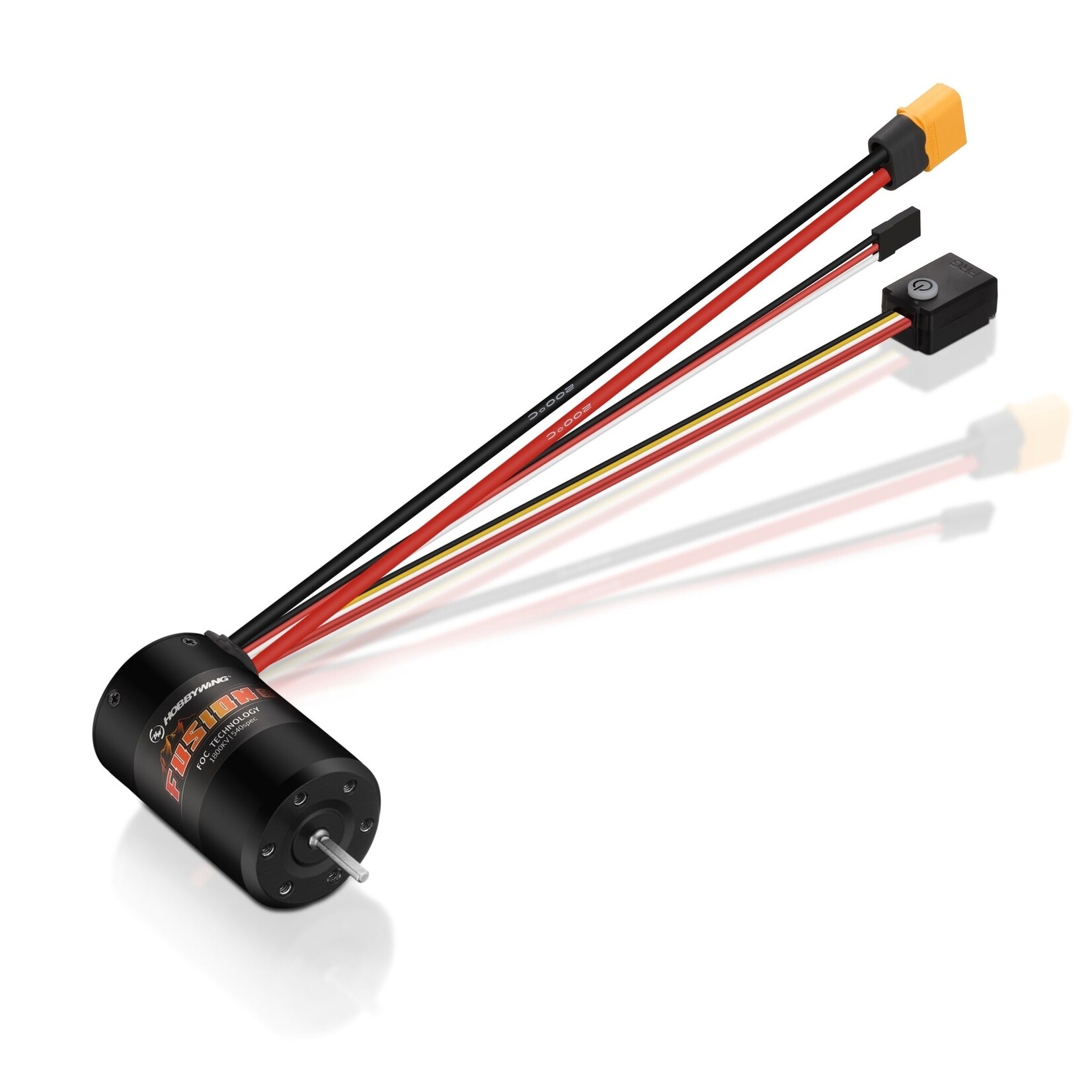

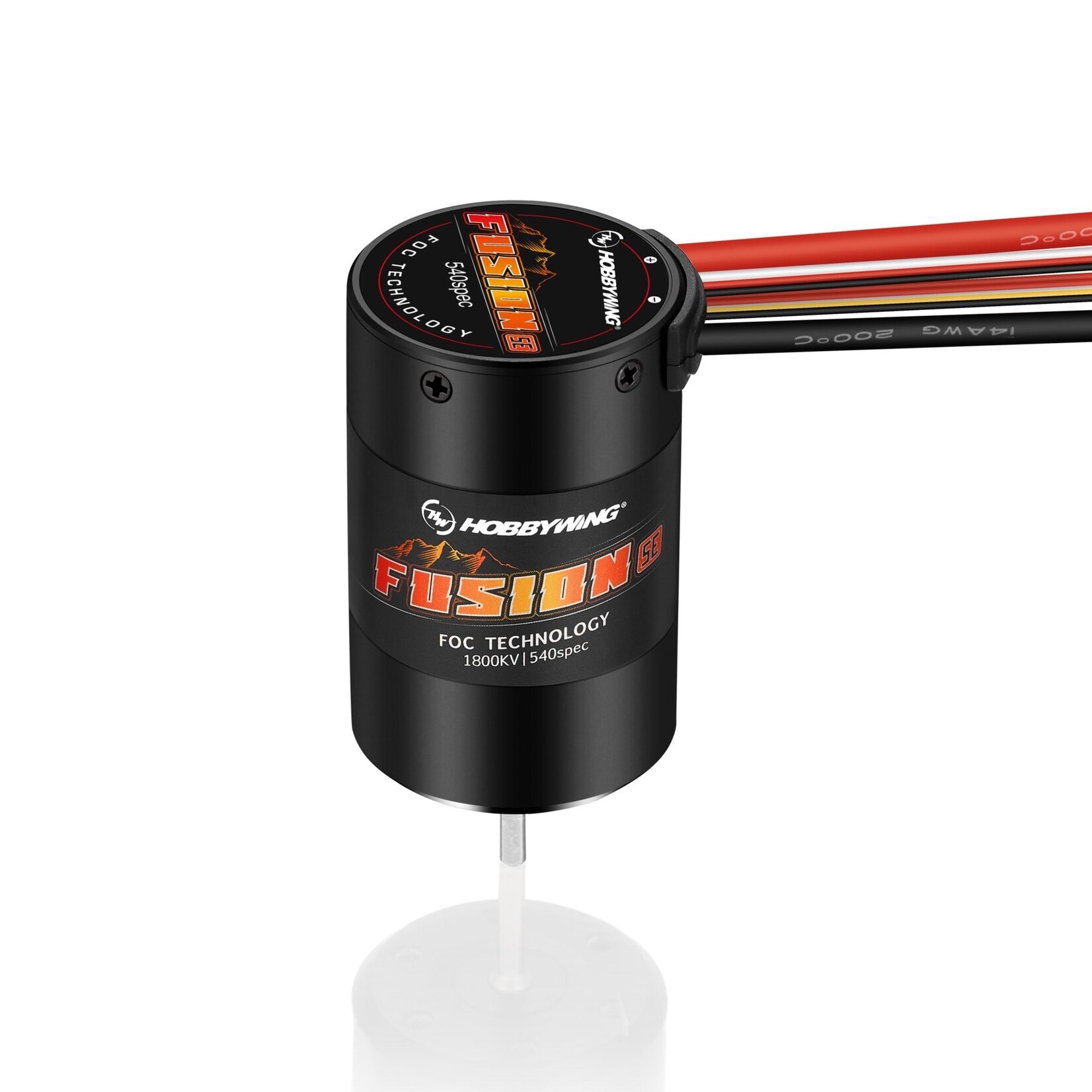

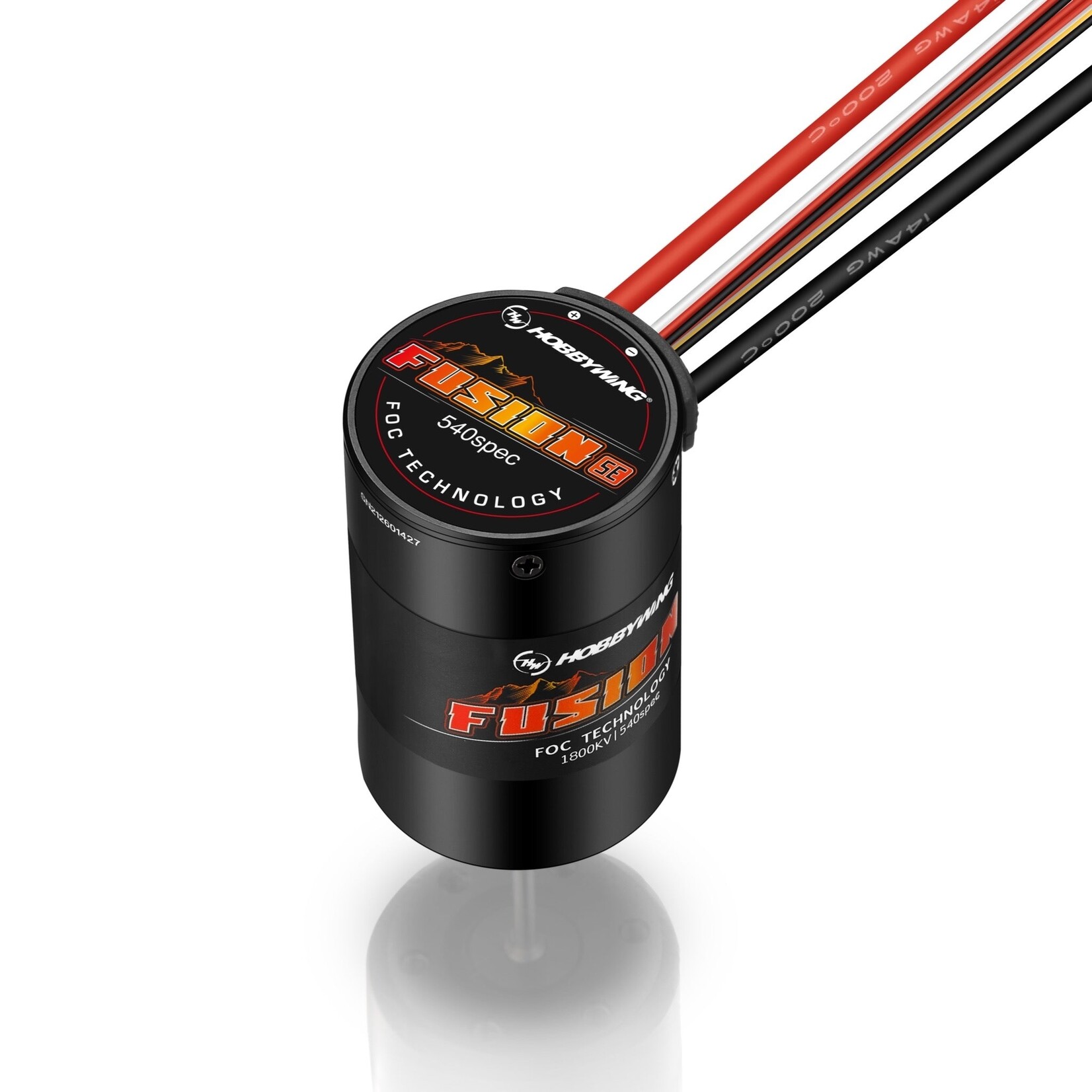

HobbyWing 30404317 - Quicrun Fusion SE 2 in 1 FOC System (1800kv)

Barcode number: 088718512213
$79.99
Excl. tax

Ready for all weather and track conditions!

In stock

Available in store

Close

HobbyWing 30404317 - Quicrun Fusion SE 2 in 1 FOC System (1800kv)

Features:

  • The integrated design of the ESC and the motor greatly reduces the overall volume and weight, and makes the layout and wiring of car frame simpler and more convenient.
  • The FOC driving mode, low speed torque is strong. Smooth running at extreme low speed, which is far superior to the common sensored brushless power system, even better than the brushed power.
  • Thanks to the sine wave driving mode, the whole system has high efficiency, small heat, and effectively extends the endurance time; and the motor runs more quietly and soft.
  • The protection grade of the whole system is IP67, with excellent waterproof and dustproof performance. Under various weather conditions, the whole system can easily deal with the complex road surface containing silt, ice and snow, and water.
  • Intelligent torque output and speed closed-loop control, fully experience the cruise control and steep slope slow descent function of 1:1 vehicle, making the control handy
  • Active drag brake force adjustment, providing super strong parking capacity on slope.
  • Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.
  • It supports LED program box to set ESC parameters, and has independent parameter setting interface, which is integrated on electronic switch, making setting parameters more convenient.

Specs:

Product Name  QuicRun Fusion SE
P/N 1800KV-30404317
Application 1/10th Rock Crawler, Brushless Sensored system
Waterproof Yes
Cont./Peak Current 40A
BEC output 2-3S Lipo/6-9 Cell NiMH
Motor KV 1800KV
Diameter / Length of Motor 36mm / 58.1mm
Shaft dia./ exposed shaft length 3.175mm / 16.5mm

Motor Poles 4
Input Wires Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Input connectors XT60
  (Note: All the wire length above is the original length, not the length you see from the outside.)
ESC Programing via LED Program Box
Program Port Independent programming interface(switch position)
Firmware Upgrade Not supported
Size / Weight 36X58.1mm / 201g (including wires&connectors)
1800KV / 2 in 1 / Brushles / Combo / Crawler / Fusion / Quicrun
