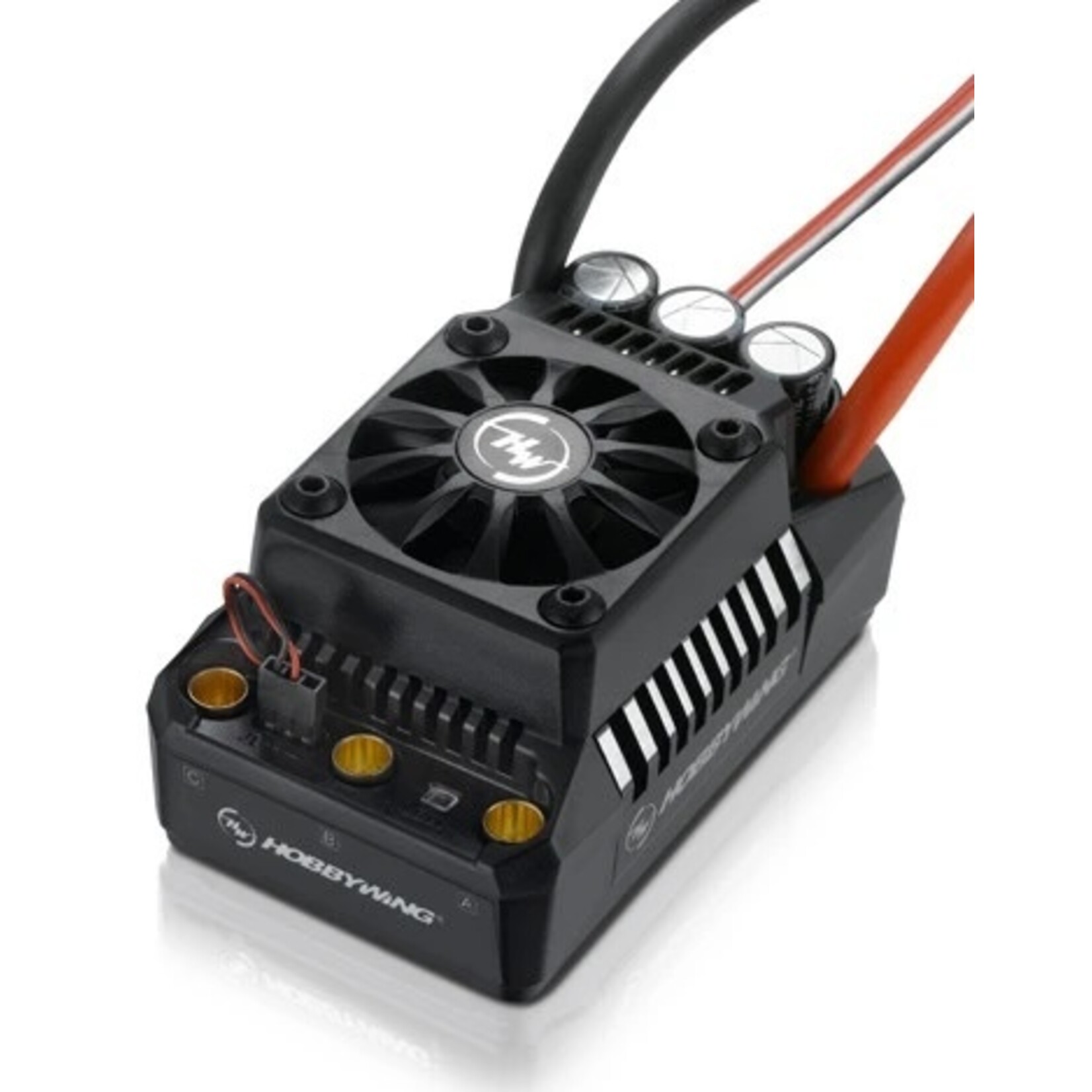

HobbyWing 30104000 - EZRUN Max5 Brushless Speed Controller

Barcode number: 088718505383
Excl. tax

Fully waterproof design for all weather conditions.

In stock

Available in store



  • (1) Ezrun MAX5 ESC
  • (3) 10 AWG, 200C Black wires for a brushless motor
  • (1) Extra set of 8 AWG 200C RED power wire
  • (1) Extra set of 10 AWG 200C Black power wire
  • (1) Double side tape
  • (2) Heat shrink tube
  • User's manual
  • A HOBBYWING decal


  • Compatible with sensorless brushless motors and sensored brushless motors (only in sensorless mode).
  • Fully waterproof design for all weather conditions.
  • Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a cont. /peak current of 6A/25A for easily driving big torque servos and high voltage servos.
  • Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
  • The built-in spark-proof circuit effectively protects not only battery and ESC connectors from damage but also users from physical injury (to hands) caused by strong electrical sparks
  • produced at the battery and ESC connecting moment.
  • Separate programming port to easily connect the LED program card or the LCD program box to the ESC. (purchase separately)
  • Proportional brake with 9 levels of brake amount/maximum brake force and 9 levels of drag brake force.
  • 5 levels of acceleration /punch from soft to aggressive for different vehicles, tires and tracks.
  • Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (throttle signal loss protection).
  • Capacitor Protection(Only MAX5):Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
  • Single-button ESC programming and factory reset.
  • Advanced programming via portable LED program card or multifunction LCD program box. or Wireless programming device (purchase separately)
  • Firmware upgrade via HOBBYWING multifunction LCD program box or Wireless programmer (item sold separately).


Scale Vehicles: 1/5th
Cont./Peak Current: 200A/1300A
Motor Mode: Sensorless
Input: 9-24 Cells NiMH, 3-8S Lipo
Motor Limit: 8S:KV≤1000 (Motor Size:58110)
BEC Output: 6V/7.2V adjustable, 6A
Programming Port: Use Fan port
ESC Programming: Via the SET button/LED Program card /LCD Program Box/ WiFi Module
Switch Mode: Electronic Switch
Capacitor Protection: Yes
Waterproof: Yes
Size (L/W/H mm): 93.35/58.12/47.81
Weight (g): 342g
