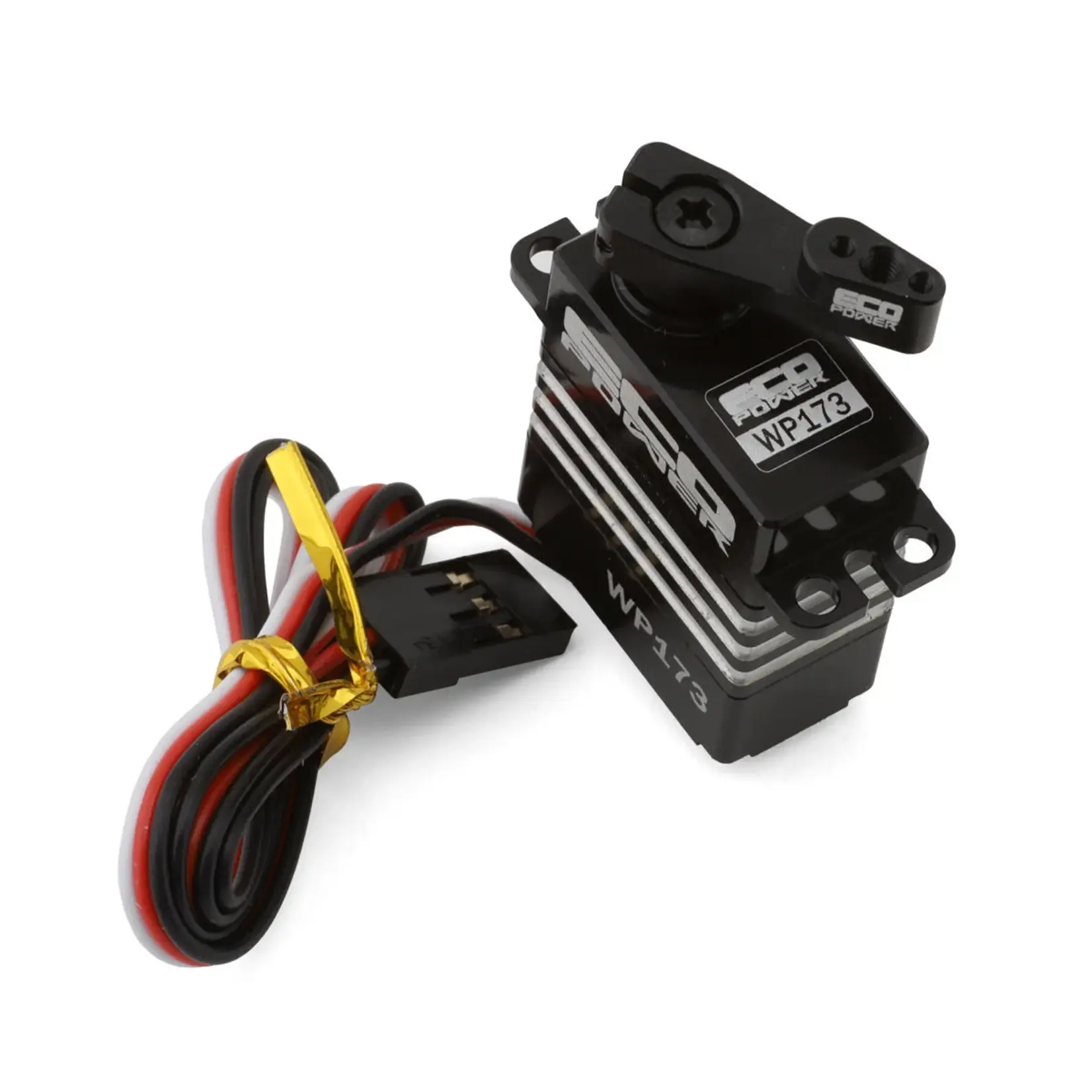

Introducing the EcoPower WP173 Aluminum Digital Micro Servo, a high-voltage servo designed for use with 1/16 and 1/18 scale models.
Available in store
CloseThe Ultimate High-Performance Mini Servo
Introducing the EcoPower WP173 Aluminum Digital Micro Servo, a high-voltage servo designed for use with 1/16 and 1/18 scale models like Traxxas®, Axial®, Losi®, and all of the Arrma® Grom™ 1/18 platforms. This servo is also compatible with the Traxxas TRX-4M™ when equipped with the EcoPower CNC-Machined Aluminum Servo Mount (ECP-3072) available separately. Engineered for durability and precision, this servo is equipped with high strength, high voltage, high torque, and high-speed capabilities. Its robust design features a full metal gear ball bearing, waterproof construction, and an aluminum case, making it a reliable choice for a wide range of demanding applications. Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
| Application | 1/24, 1/16 & 1/18 |
|---|---|
| Input Voltage | 6V-8.4V |
| Speed | |
| @6.0V: | 0.09 sec/60° |
| @8.4V: | 0.07 sec/60° |
| Torque: | |
| @6.0V: | 123oz.in (8.9Kg-cm) |
| @8.4V: | 173oz.in (12.5Kg-cm) |
| Motor | Digital Coreless |
| Output Shaft | Mini 25T |
| Shaft Diameter | 0.20in (5mm) |
| Gear Material | Metal w/Lifetime Gear Warranty |
| Dimensions (LxWxH) | 0.9x0.47x1.25in (23x12x31.75mm) |
| Weight | 0.81oz (23g) |
