  • Arrma AR390069 - BLX100 Brushless 10th 3S ESC: 4x4

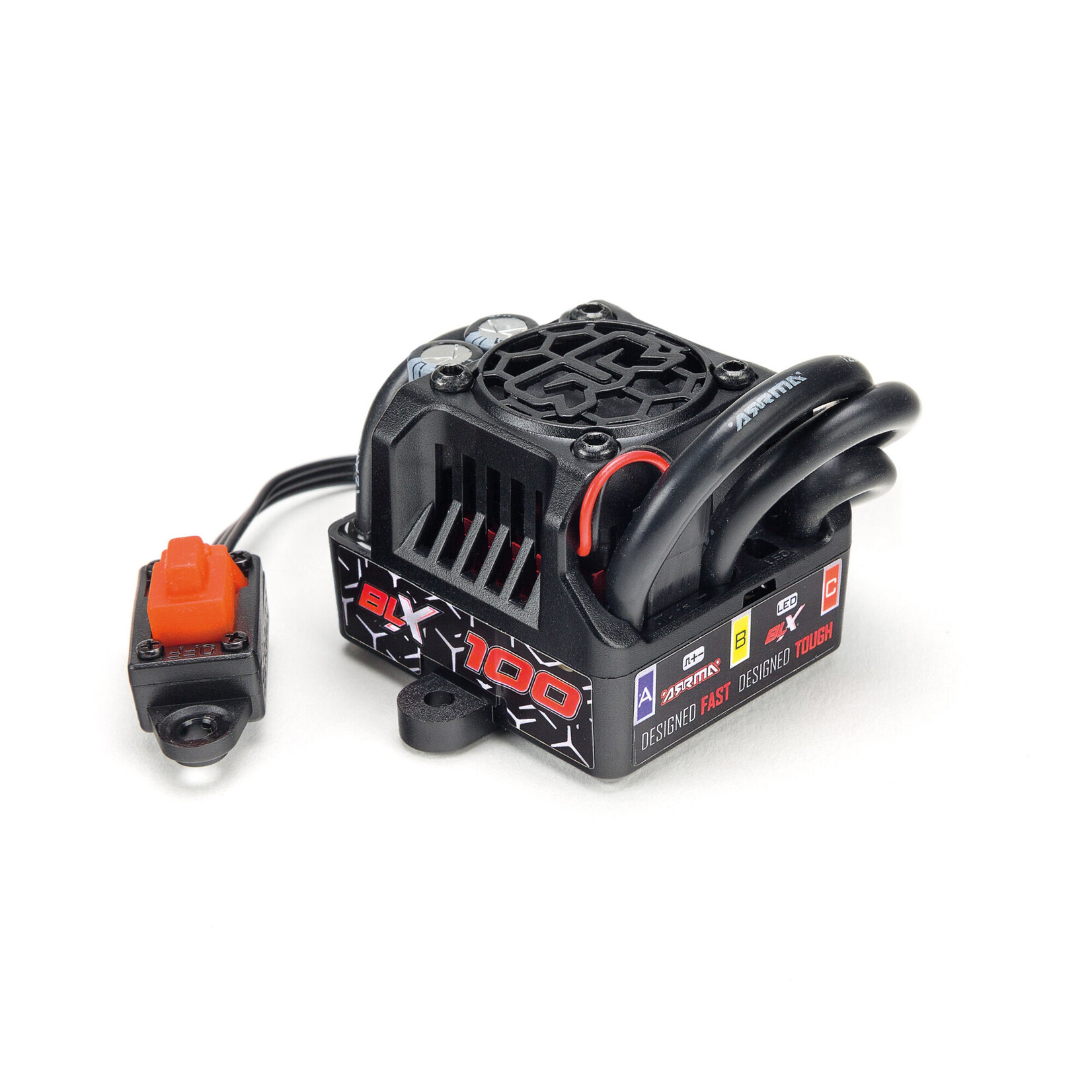

Arrma AR390069 - BLX100 Brushless 10th 3S ESC: 4x4

Barcode number: 5052127030151
$131.99
Excl. tax

The BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.

Out of stock

Available in store

Close
Add to wish list Add to wish list

Arrma AR390069 - BLX100 Brushless 10th 3S ESC: 4x4

Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

Specs:

Battery usage: 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH
Low Voltage Cut-Off (LVC): 3.4V per cell
Thermal Protection Temperature: 125°C / 257°F
Over-Voltage Protection: Over 12.6V
BEC Voltage: 6V
BEC Current: 4A
ESC Length: 43mm / 1.69"
ESC Height: 34mm / 1.34"
ESC Width: 54.5mm / 2.15" (Including hold-down tabs)
ESC Weight: 120g / 4.2oz
Receiver Wire Length: 170mm / 6.70"
Battery Wire Length: 125mm / 4.92"
Motor Wire Length (Including Connector): 200mm / 7.87"
Switch Length: 110mm / 4.33"
Switch Width: 12.8mm / 0.5"
Switch Height: 18mm / 0.71"
Motor Bullet Connector Size: 4mm / 0.16"
Wire Specifications: 12AWG
ESC Battery Connector Type: EC5

Includes:

1 x BLX100 Brushless 3S ESC

10th / 3S / 4X4 / BLX100 / Brushless / ESC
