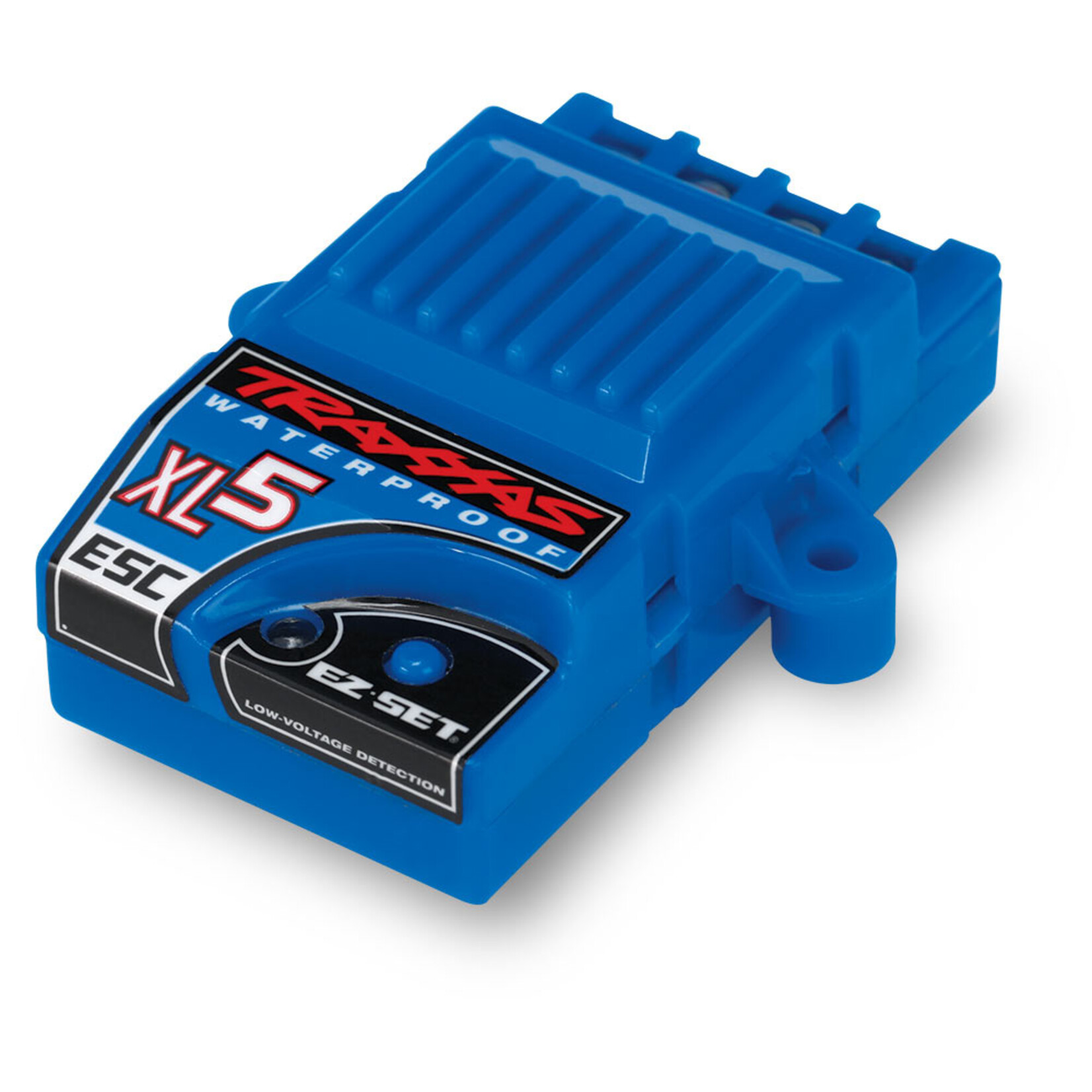

Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor.
Available in store
CloseDesigned and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-7 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. XL-5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-5 is backed by the Traxxas Lifetime Electronics Warranty.
Traxxas High-Current Connector
The XL-5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.
Patented Training Mode™
An exclusive feature that places the XL-5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model. When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!
Features:
Specs:
Input voltage: | | 4-7 Cells (4.8 to 8.4 Volts DC) |
Case Size: | | 1.23"W x 2.18"D x 0.61" H |
Weight: | | 2.44 Ounce |
Motor Limit: | | 15-turns** (540 Size) 12-turns** (550 Size) |
On Resistance Forward: | | 0.007 Ohms |
On Resistance Reverse: | | 0.014 Ohms |
BEC Voltage: | | 6.0 VDC |
BEC Current: | | 1A |
Power Wire: | | 14 Gauge / 5" |
Input Harness Wire: | | 26 Gauge / 9" |
PWM Frequency: | | 1600 Hz |
Low Voltage Detection (LVD): | | 2-Stage indicators, switchable (on or off) |
Thermal Protection: | | Thermal shutdown |
Profile selection: | | Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:* 50% FWD, 100% brakes, 50% REV |
Single-button setup: | | Yes, Traxxas EZ-Set® |
| | **Properly geared *Patented |
Includes:
Traxxas 3018R: XL-5 Waterproof Electronic Speed Control (Land Version, Low-Voltage Detection, FWD/REV/Brake).
