30120202 - Quicrun 1080 G2 Crawler Brushed ESC 80A

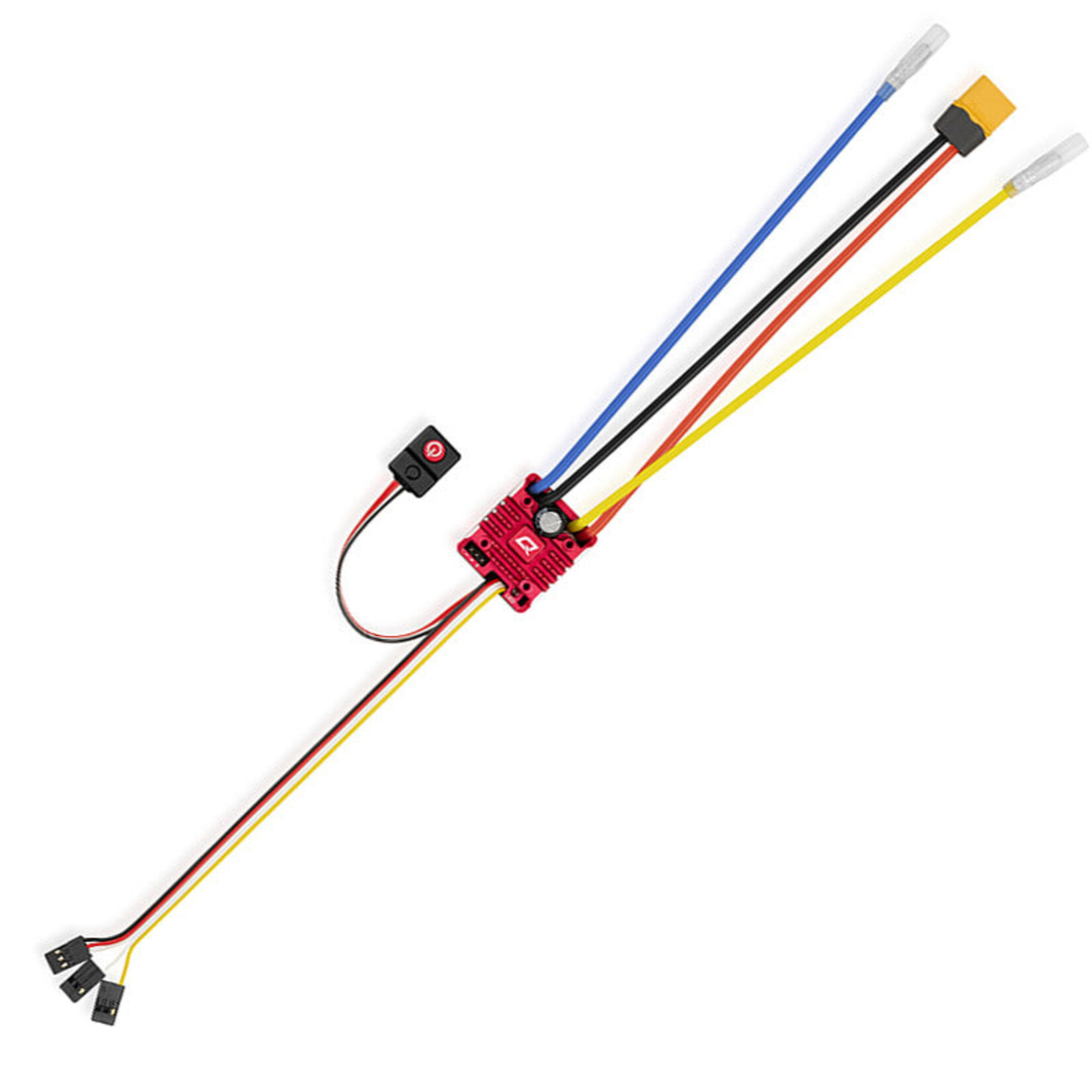

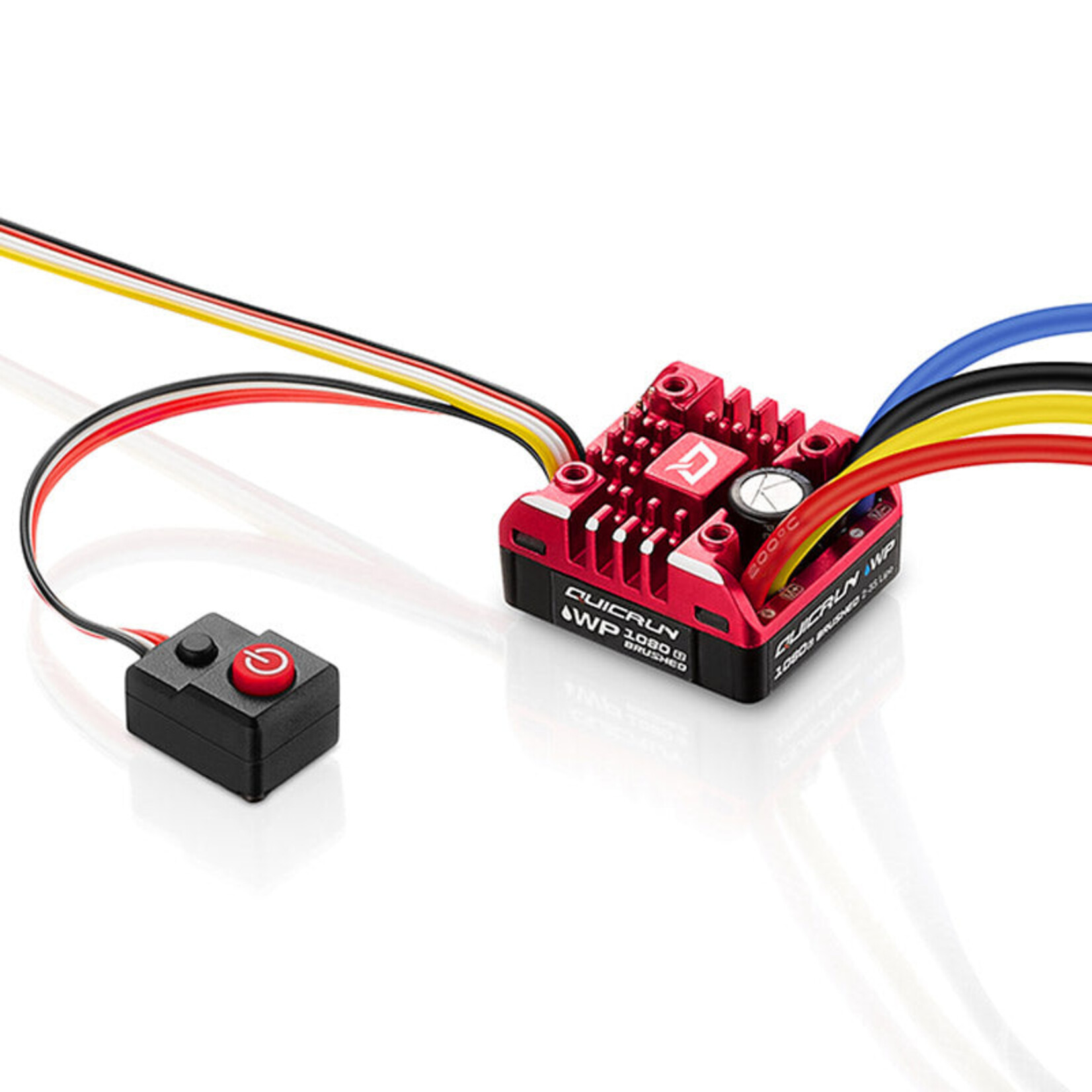

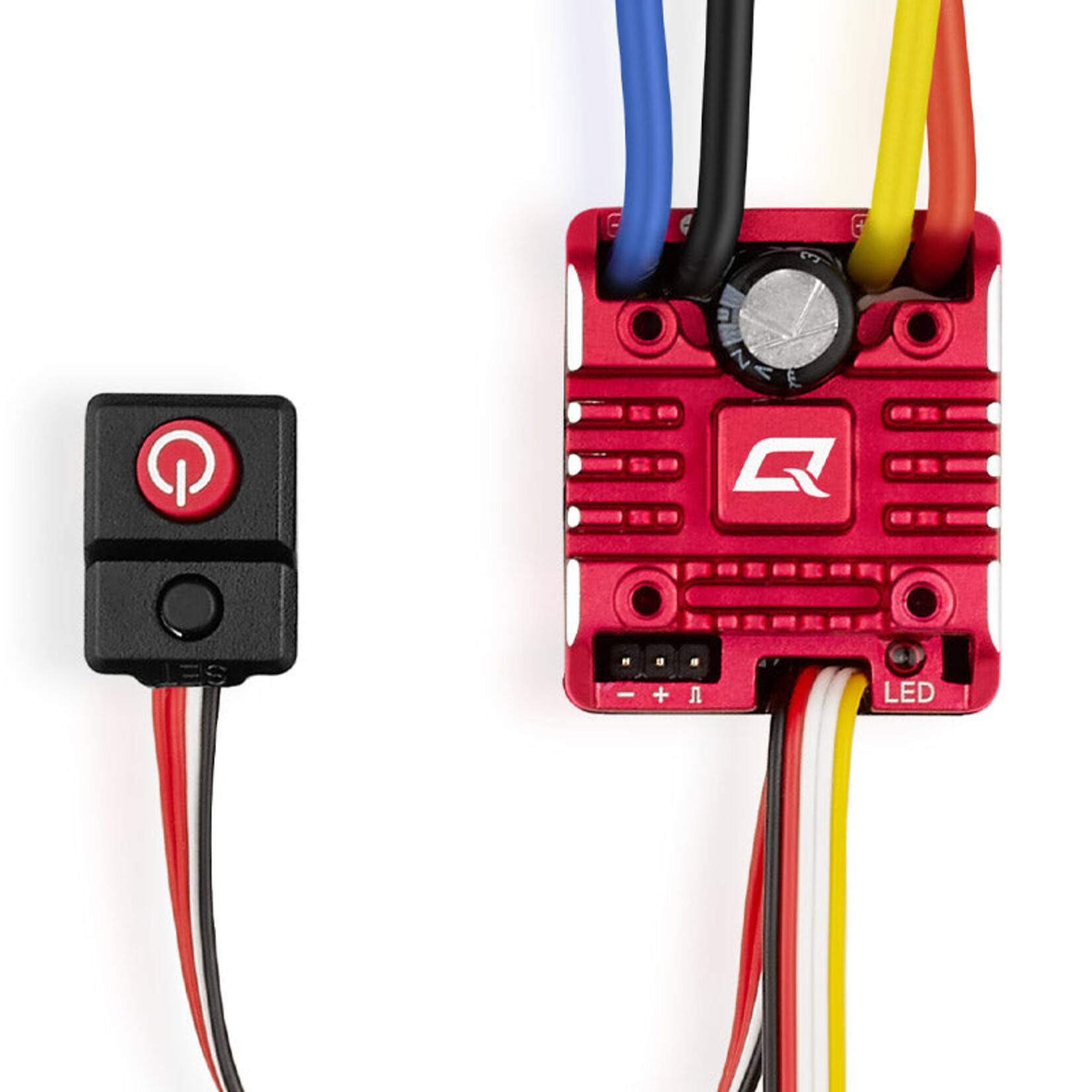

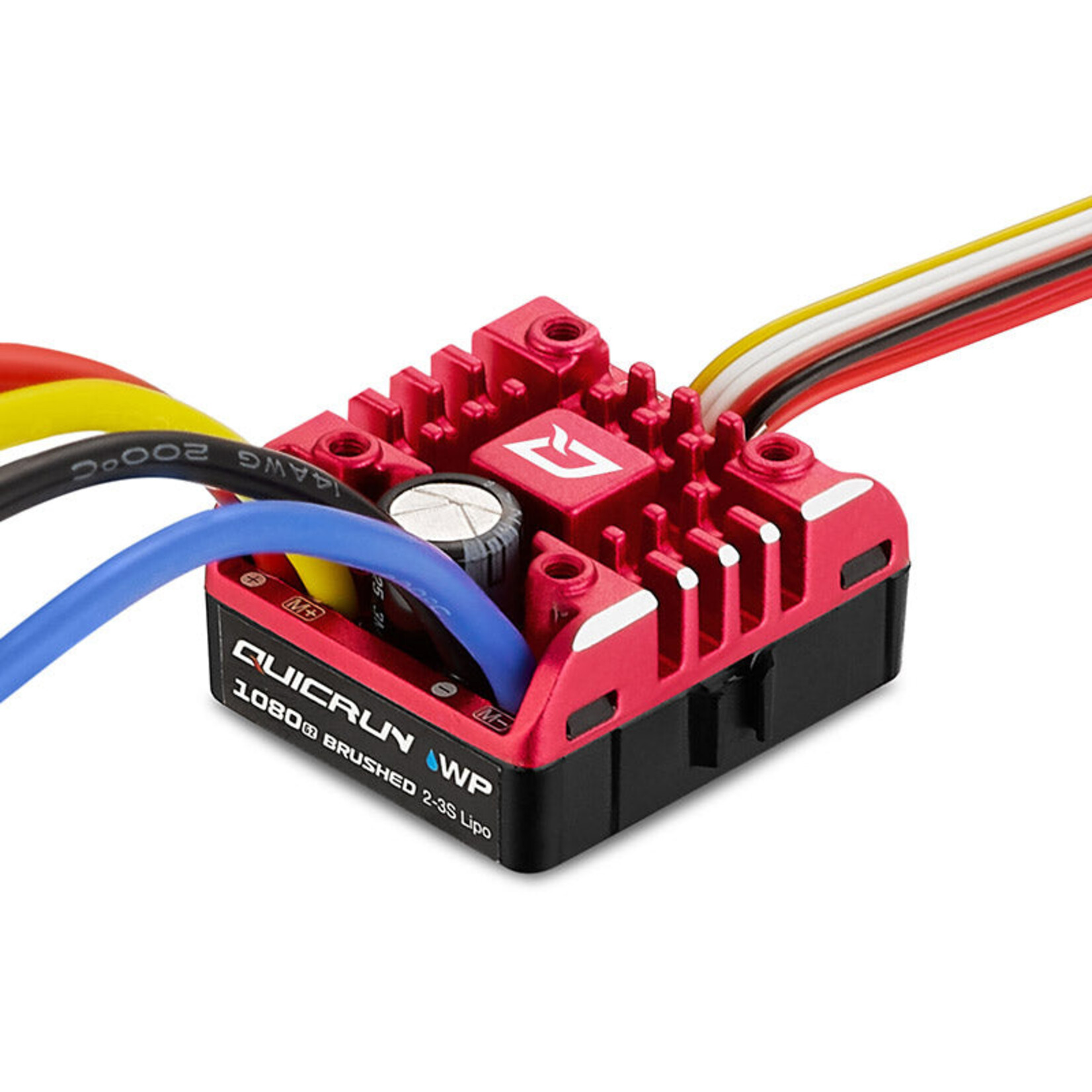

HobbyWing 30120202 - Quicrun 1080 G2 Crawler ESC, Brushed (80A)

Features:

Fully Water-proof and dust-proof, suitable for all-weather races.
Small in size, with a built-in capacitor module.
Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
Real-Time Adjustment of Drag Braking Force.
15 programmable parameter items
PWM Frequency: 1K/2K/4K/8K/16K Adjustable
Freewheeling (DEO) capability
Drag brake rate in 9 levels (adjustable)
Electronic switch
Aluminum case for great heat dissipation
Great current endurance capability.
Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
Automatic throttle range calibration, easy to use.
Multiple protections:

Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection, and much more

Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America
WP-1080 G2 ESC VS WP-1080 (G1)

BEC output can go up to 8.4V
Real-Time Adjustment of Drag Braking Force.
Real Car Mode
New Aluminum case

Specs:

Brushed ESC	WP 1080 G2
p/n	30120202
Waterproof	Yes
Dual Mode	No
Fwd Cont. / Peak Rev Cont. / Peak	80A / 400A
Car Applicable	1/10 Rock Crawler
Motor Limit	Brushed Motors 540/550 Series 2S LiPo or 5S NiMH 3S LiPo or 9S NiMH
Battery	2-3S LiPo or 5-9S NiMH
BEC Output	6V/7.4V/8.4V @ 4A (switch-mode)
PWM Frequency	Adjustable 1K/2K/4K/8K/16K
Wires	14AWG-200mm w/ XT60 Connector
Size/ Weight	37.2(L)* 31.9(W)*18.4(H) (without fan)
External Program Port	Separate Port Available
Programming	LED Program card
Cooling Fan
Weight*	70.2g w/ wire and connectors

80A / Brushed / Crawler / ESC / Quicrun
