Traxxas 920464BRWN - 1/10 '79 Ford F150 Ranger, High Trail Edition - Brown

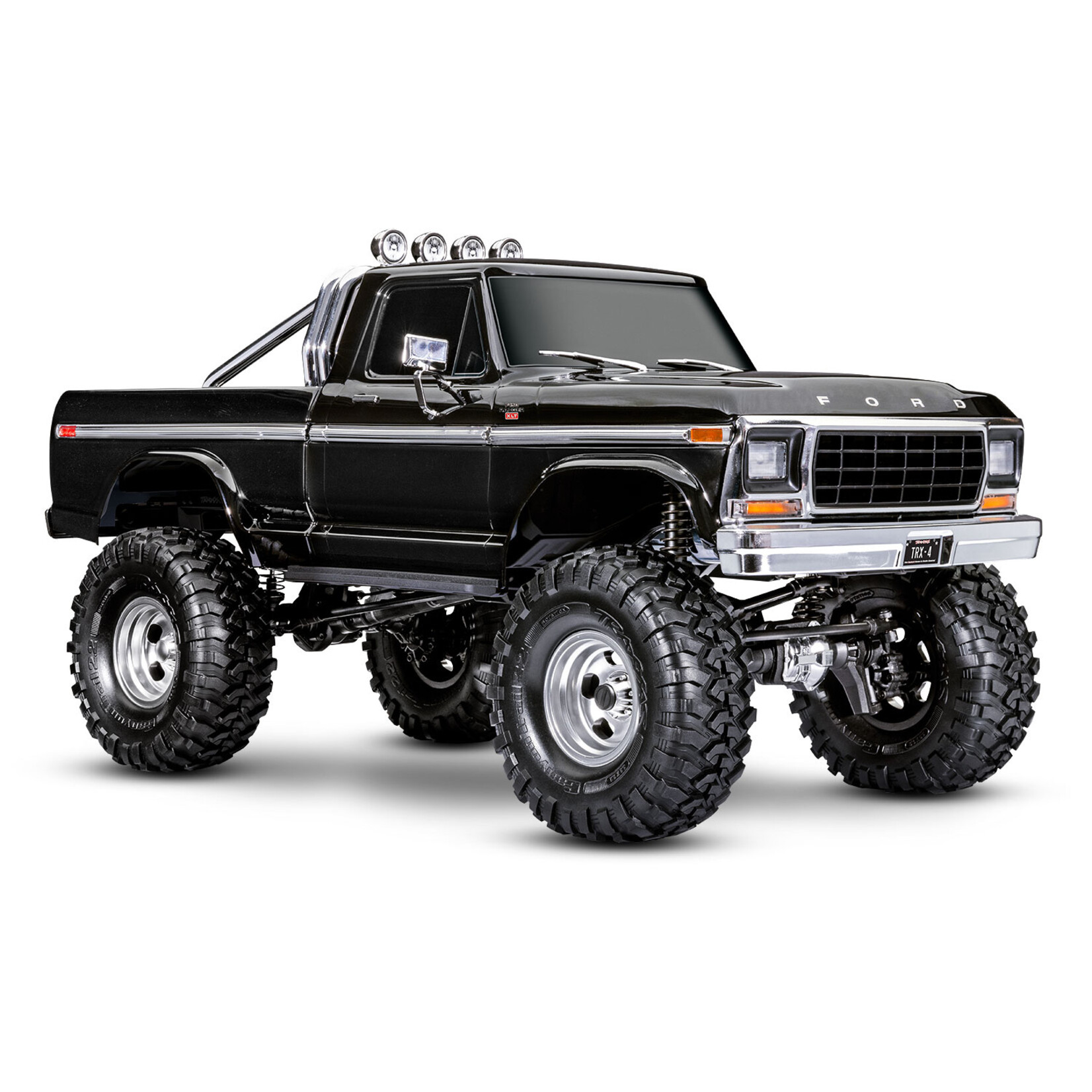

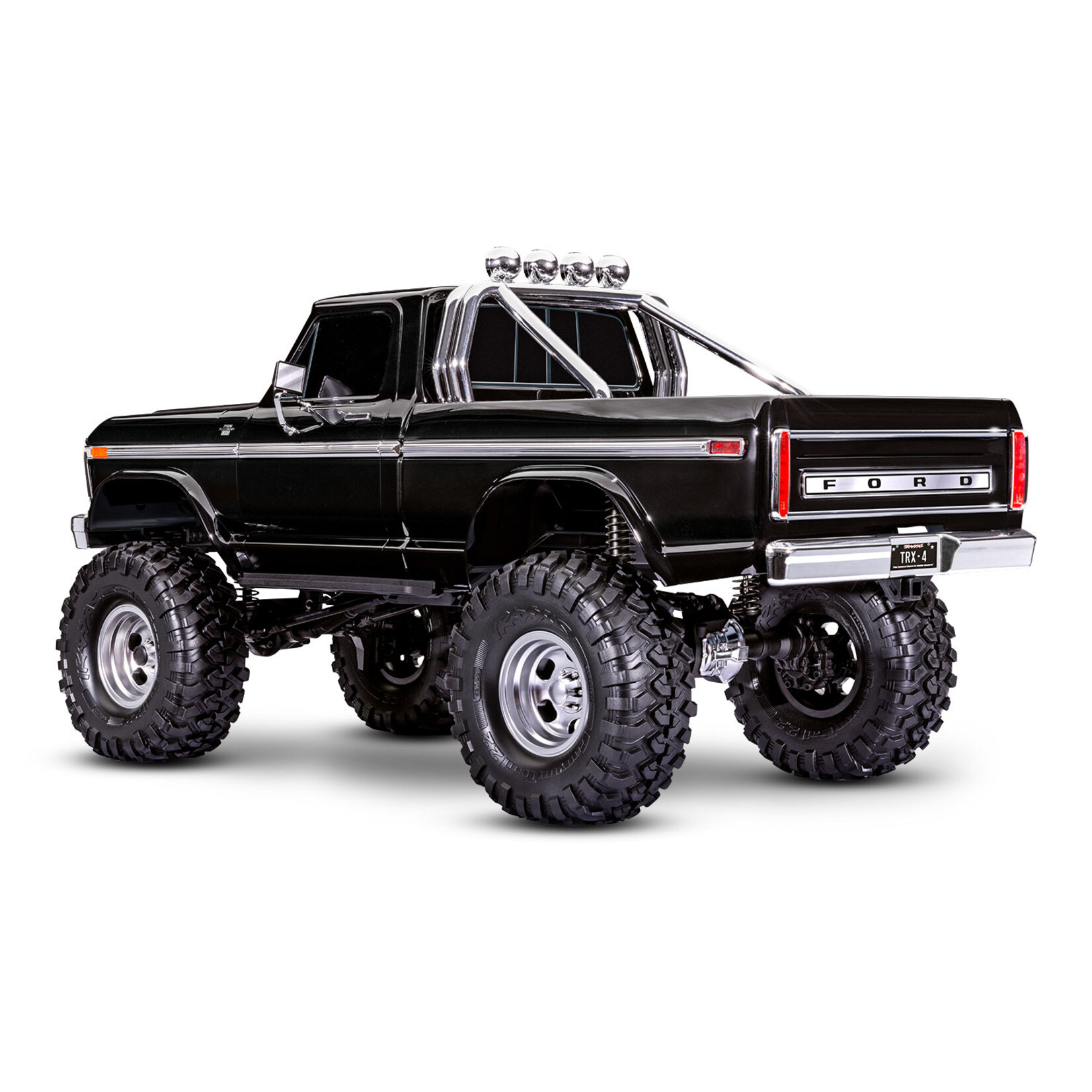

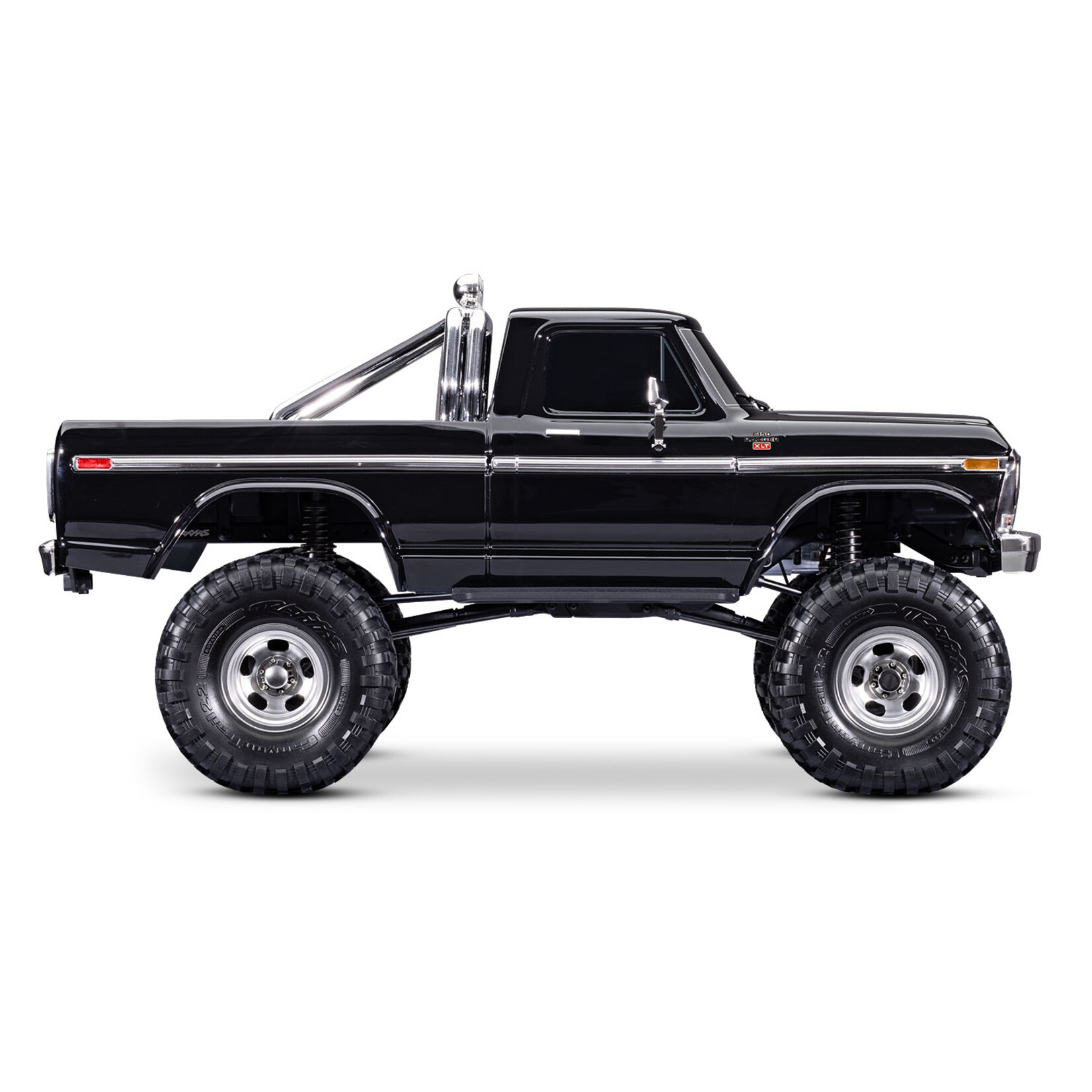

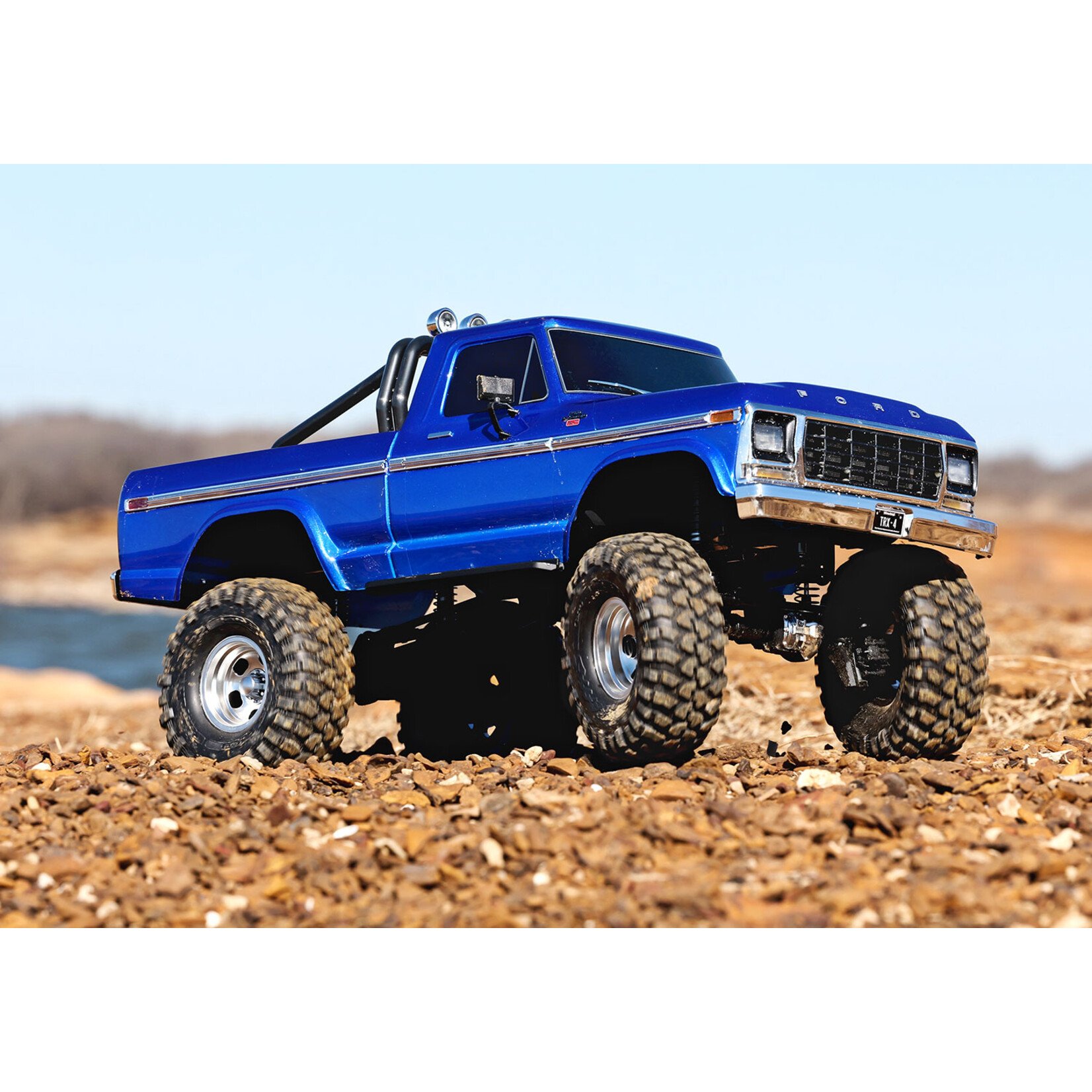

TRX-4® 1979 Ford® F-150® Ranger XLT is the latest truck to receive the High Trail Edition treatment with its striking replica body and high-riding stance. High Trail Edition trucks take adventure to new heights with factory-installed Long Arm Lift Kits and oversize tires to raise ground clearance over an inch higher than standard TRX-4s. The F-150 Ranger’s extended wheelbase further enhances TRX-4’s already legendary off-road capability for even more fun on the trail. TRX-4 F-150 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.
Features:

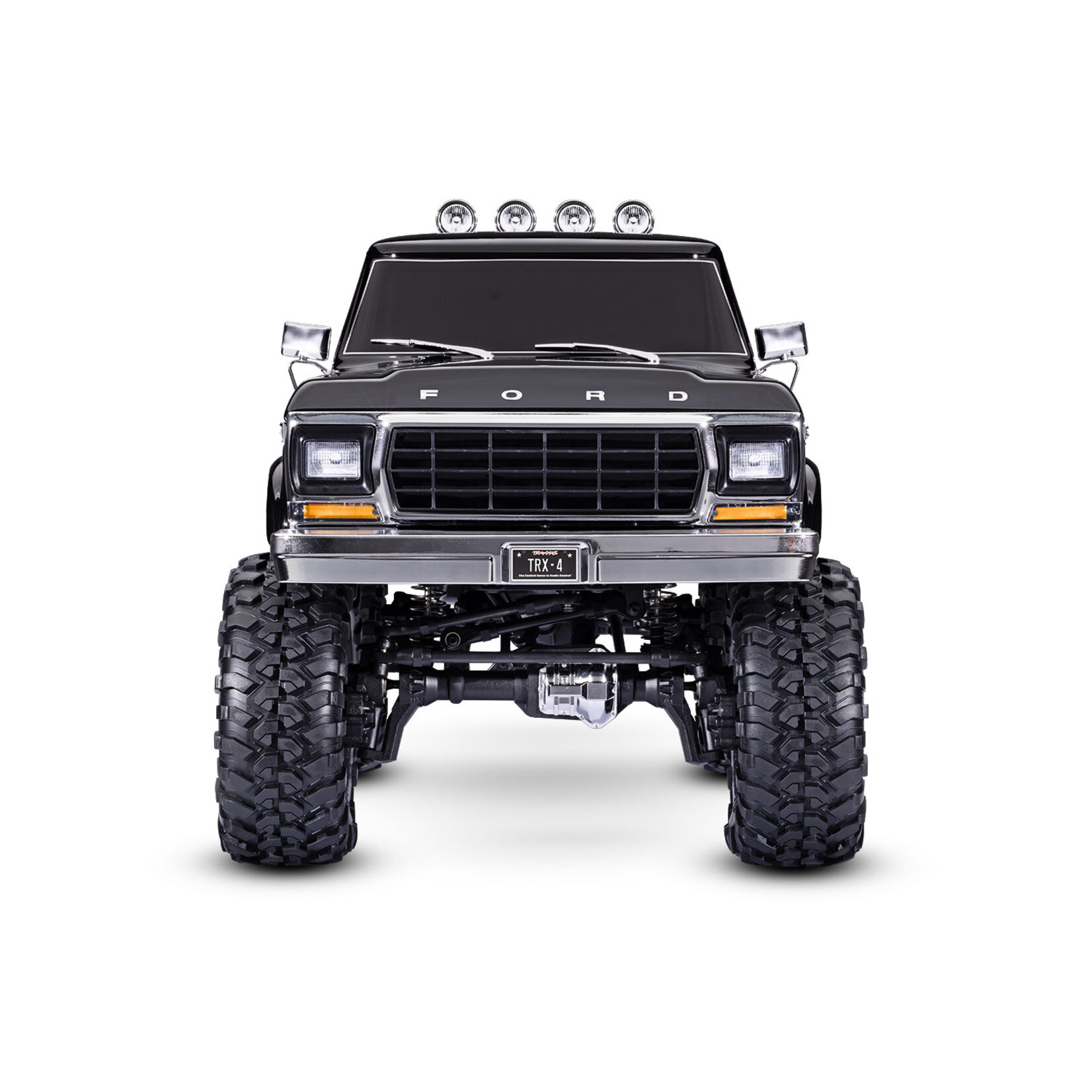

- Officially Licensed 1979 Ford F-150® Ranger XLT Body
- Scale details: grille, chrome bumpers, side trim & mirrors, door handles, and wipers
- LED-ready headlights, tail lights, and roll bar
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
- Clipless design for smooth body appearance

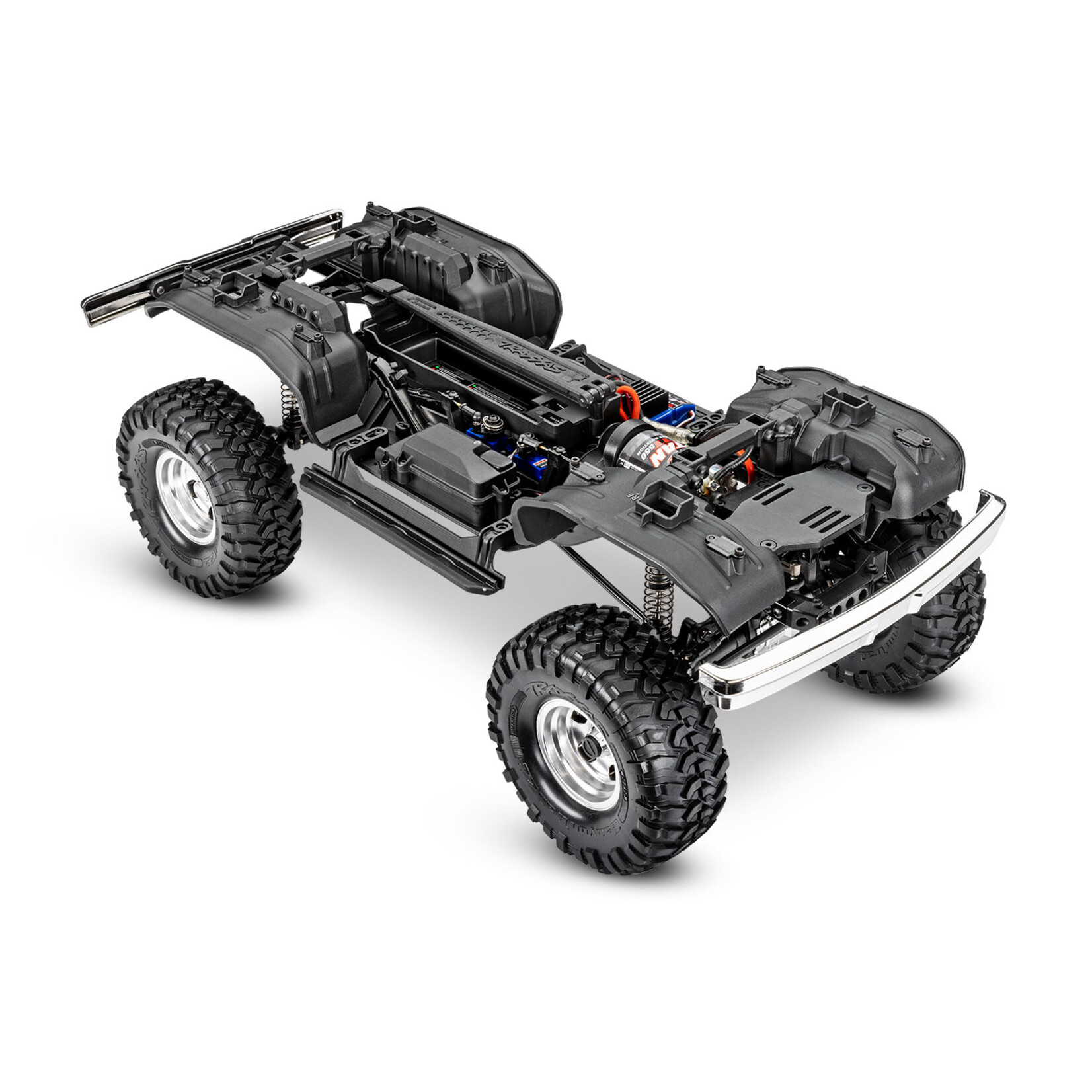

- Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
- Powerful Titan® 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Factory-Installed Long Arm Lift Kit
- Increases ground clearance over 1”
- Maintains precise steering geometry
- Accommodates oversize 2.2” wheels and tires
- Long 336 mm wheelbase for improved stability

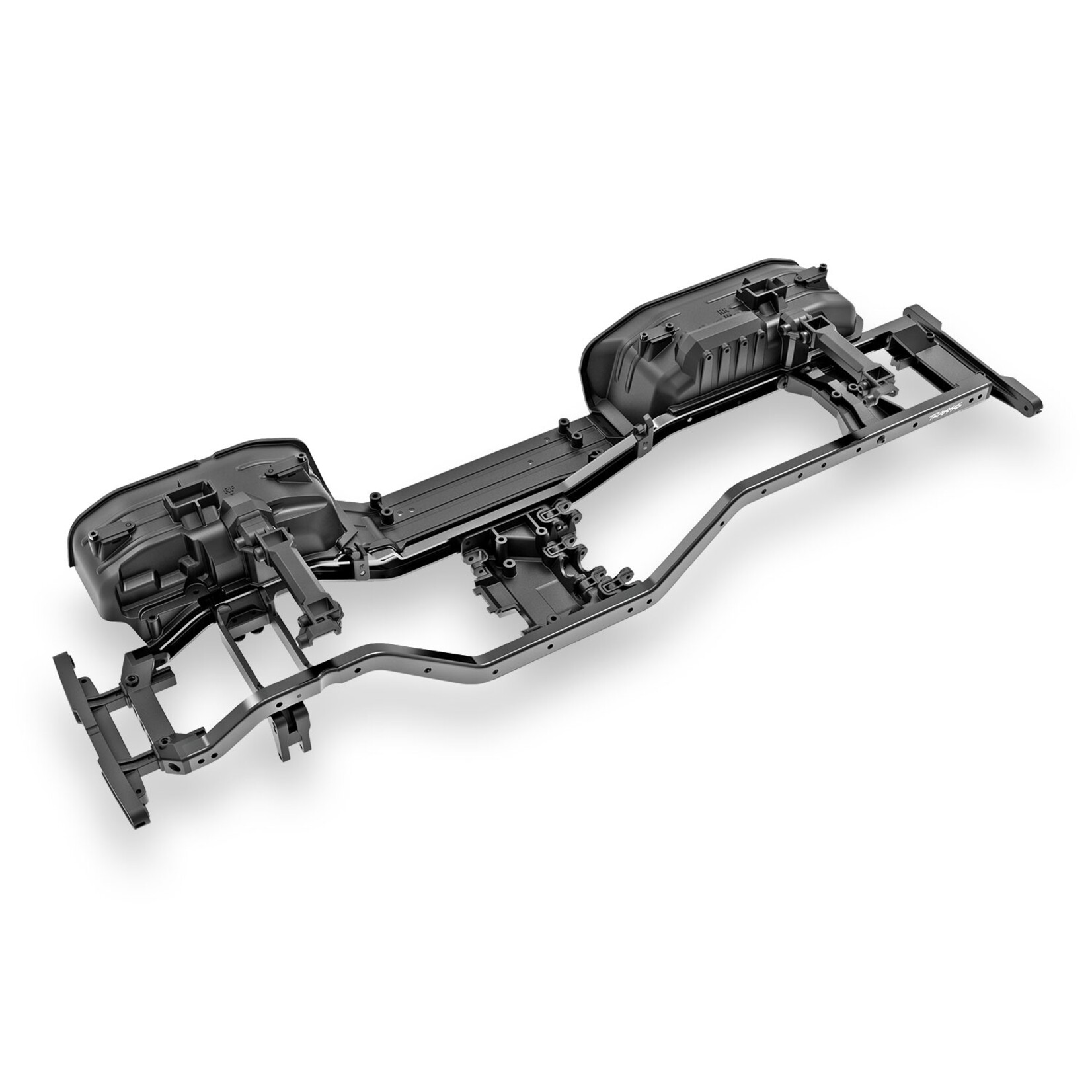

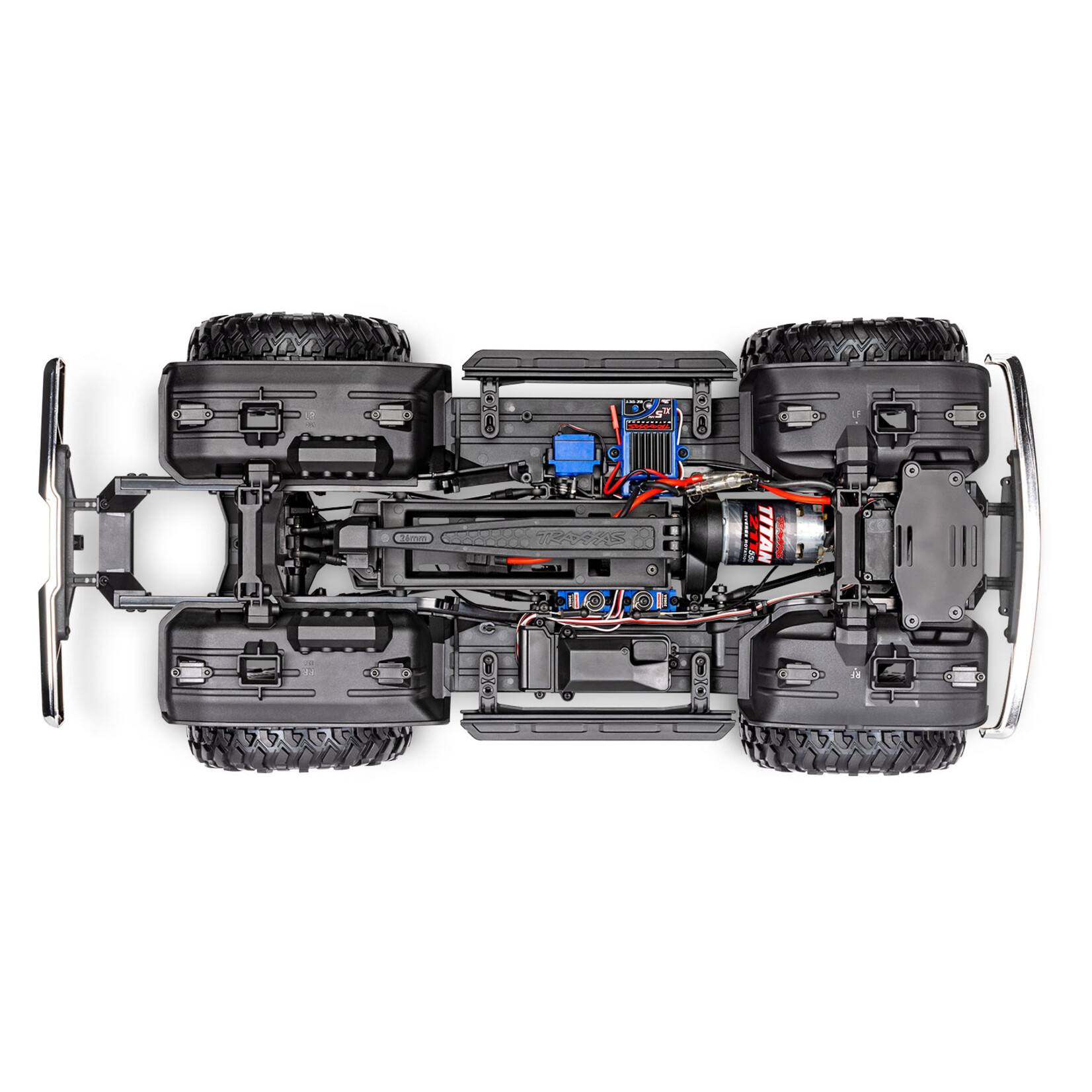

- Full-length 1.5 mm steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts

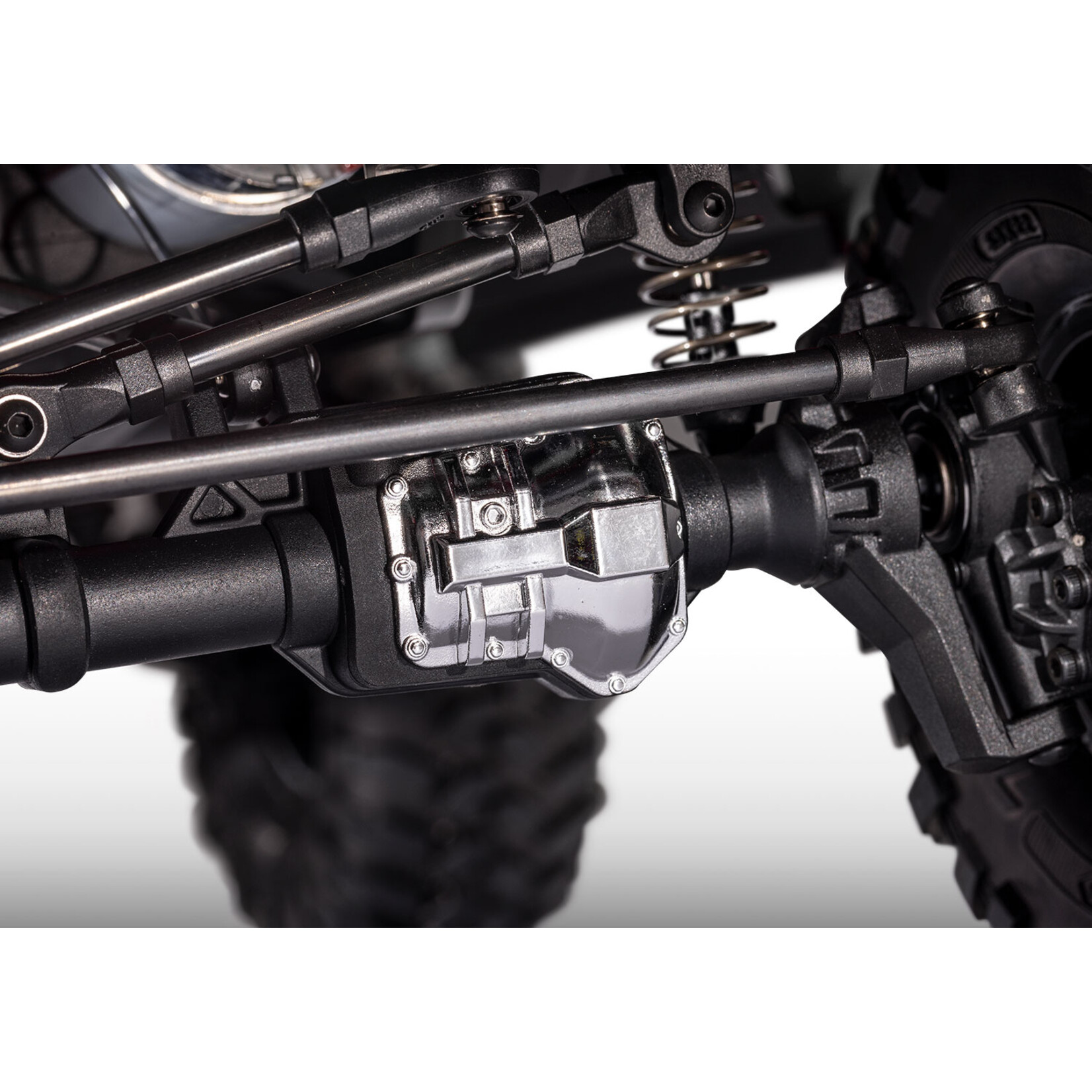

- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steel servo horn
- Steering geometry corrected for bump steer
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends

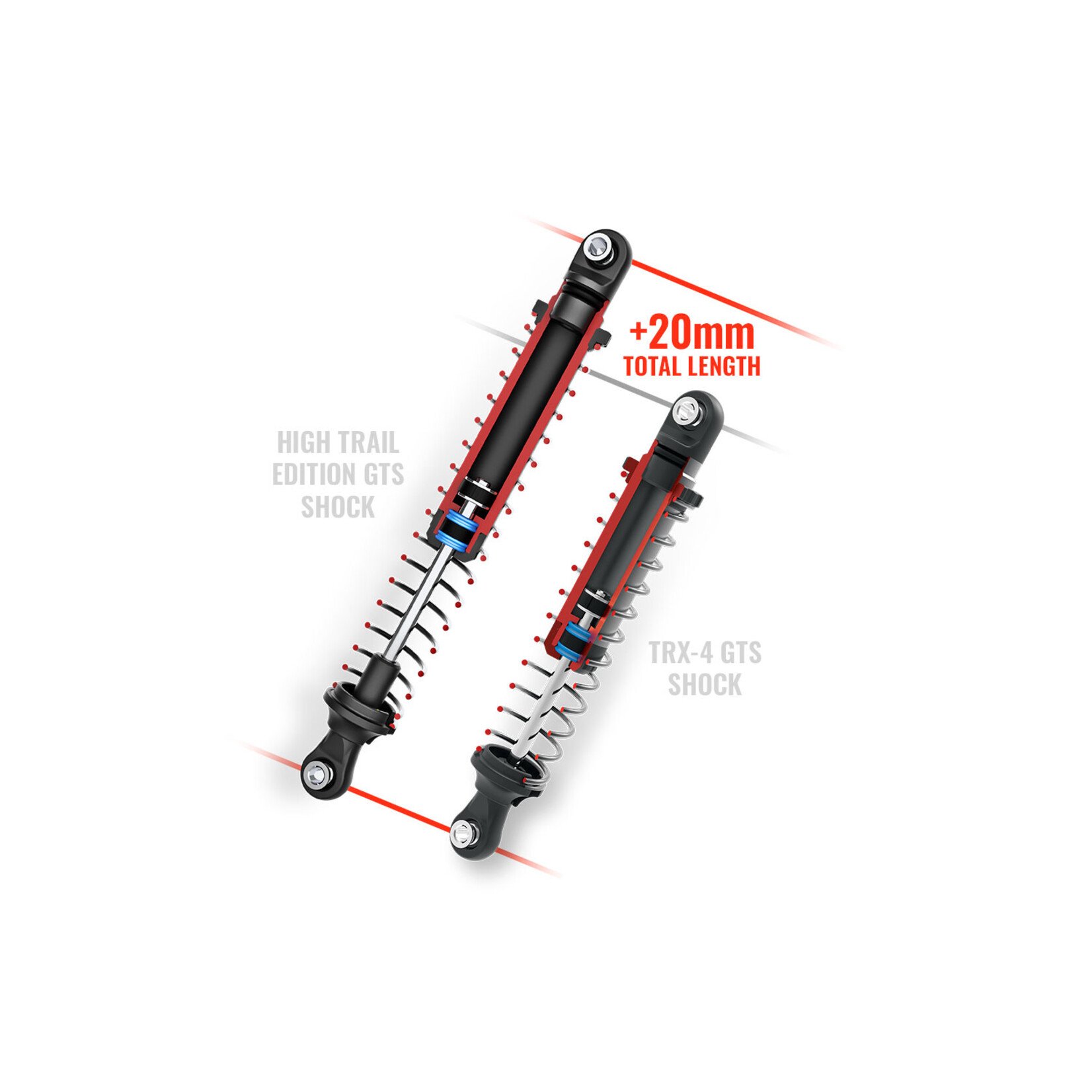

- Extended Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Extra-long aluminum bodies for greater articulation
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Oversize Wheels and Tires
- 2.2” slotted mag wheels wheels with hub inserts
- Pre-mounted 2.2” Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- TQi™ 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- High 13ms frame rate and near-zero latency for responsive control
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
Includes:
- TRX-4, Ready-To-Explore® model
- XL-5 HV waterproof electronic speed control
- Titan® 21T reverse rotation motor
- TQi™ 2.4GHz radio system with cruise control
- High quality maintenance tools
Needed To Complete:
- Batteries
- Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).
- Four AA alkaline batteries for the transmitter.

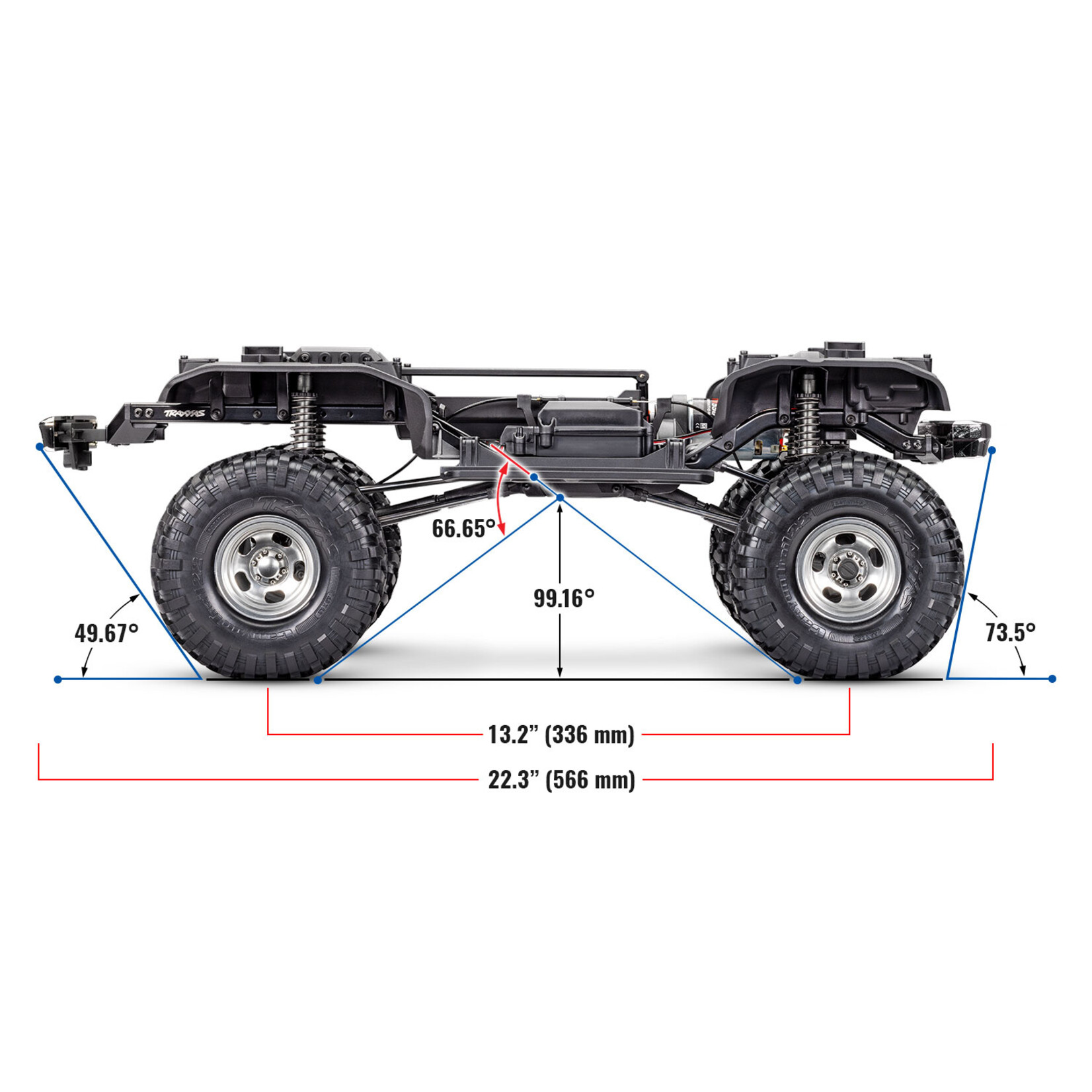

Specs:
| Length: |
22.30 inches (566mm) |
| Front Track: |
10.60 inches (270mm) |
| Rear Track: |
10.60 inches (270mm) |
| Center Ground Clearance: |
4 inches (99mm) |
| Weight (w/o battery): |
7.34lbs (3.33kg) |
| Height (overall): |
10.82 inches (275mm) |
| Wheelbase: |
13.23 inches (336mm) |
| Approach Angle: |
73.5° |
| Departure Angle: |
49.67° |
| Breakover Angle: |
67° |
| Front Shock Length: |
4.33 inches (110mm) |
| Rear Shock Length: |
4.33 inches (110mm) |
| Front Wheels: |
2.2 x 1.34 inches (56 x 34mm) |
| Rear Wheels: |
2.2 x 1.34 inches (56 x 34mm) |
| Front Tires: |
5.3 x 2.14 inches (135 x 54mm) |
| Rear Tires: |
5.3 x 2.14 inches (135 x 54mm) |
| Hex Size: |
12mm |
| Speed Control: |
XL-5 HV |
| Motor (electric): |
21T Reverse Rotation |
| Transmission: |
2-speed High/Low, Remote Shifting |
| Gear Pitch: |
32 Pitch |
| Differential Type: |
4 Gear, Remote Locking |
| Chassis Structure / Material: |
Steel Ladder Frame with Nylon Composite Crossmembers |
| Brake Type: |
Electronic “Hill Hold” |
| Drive System: |
Shaft Driven 4WD |
| Steering: |
Chassis Mounted Servo |
| Servo: |
2075X Metal Gear |
| Transmitter: |
TQi™ 2.4 GHz 4-Channel Transmitter |
| Receiver: |
6533 |
| Skill Level: |
1 |
| Battery Tray: |
158.8 L x 47 W x 23/26mm H |
