Compact yet Powerful

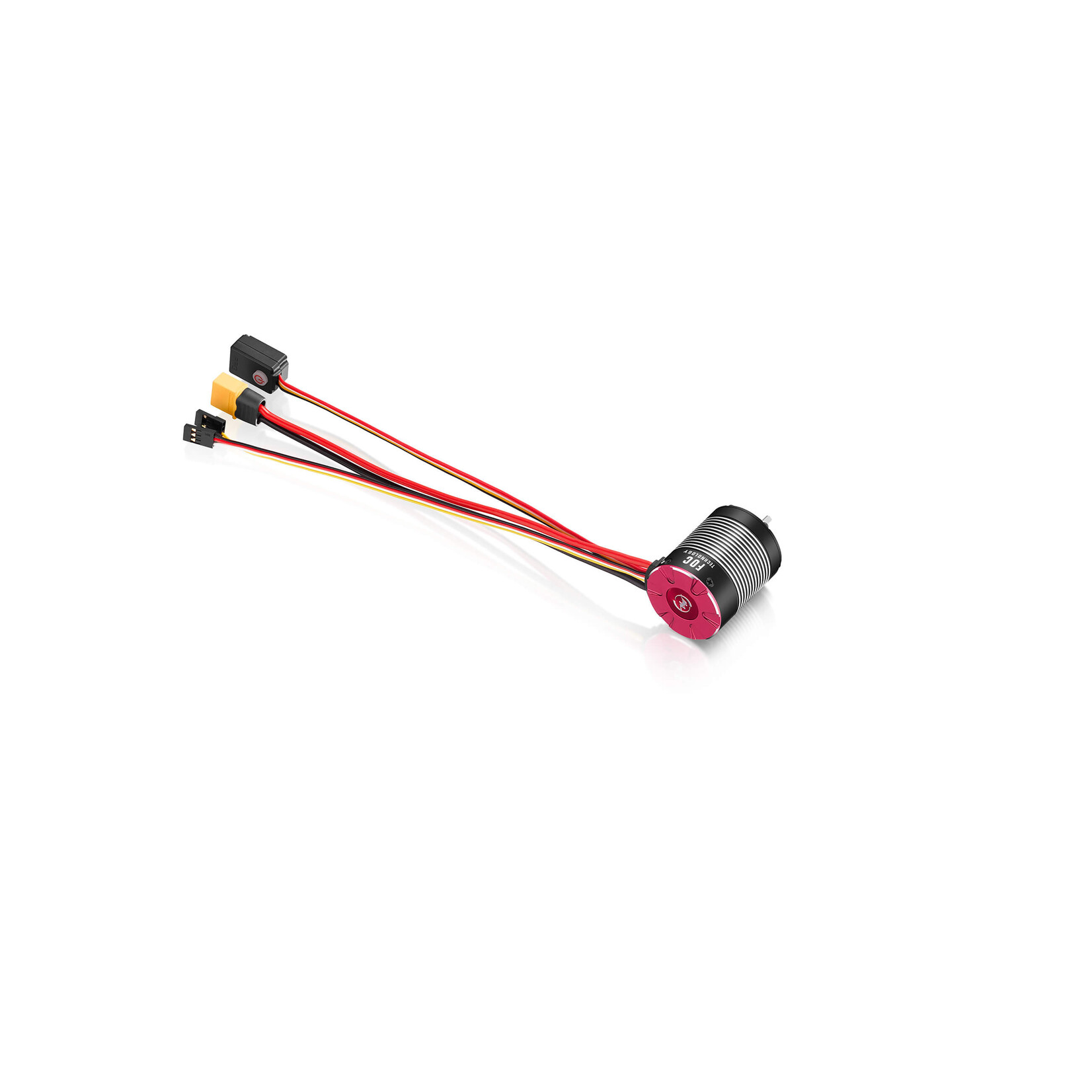

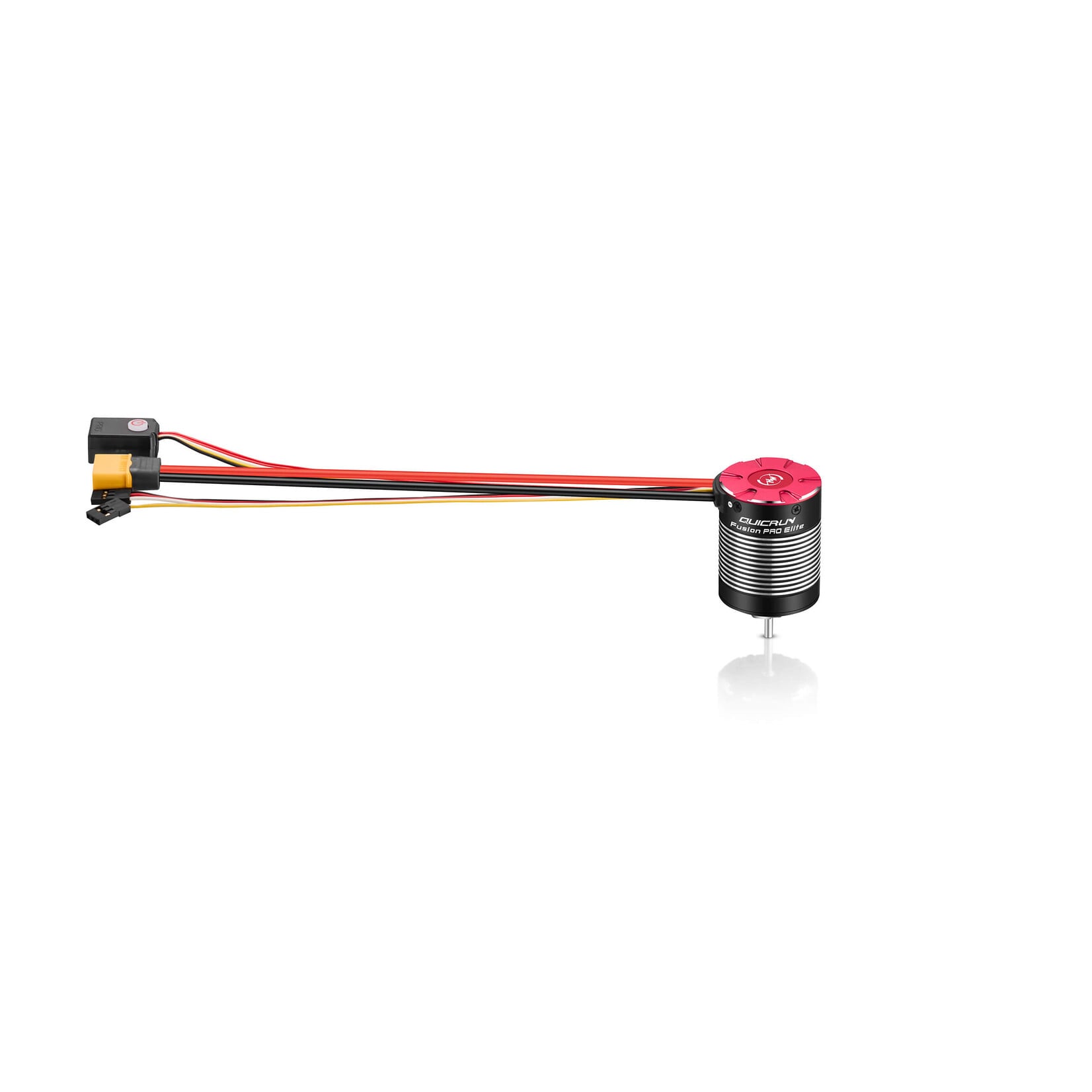

Fits nearly all 1/10th scale vehicles on the market. This ultra compact 2-in-1 motor and ESC allows for super clean installation and wiring. Featuring an ultra-short integrated design with a length of just 48.5mm, the motor is 9.5mm shorter than the Pro Standard version. It's 1.3mm shorter than the AXE 540.

Supports 2-4S Lipo, Ideal Choice for 1/10th Climbing Vehicles. The ESC supports 2-4S LiPo batteries. Maximum continuous output current of 50A. Combined with its compact designs, it meets the demands of most 1/10th scale crawler applications, providing stable, consistent power without performance drop-offs.

AUX External Control, Channel for Real-time Parameter Adjustment. By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust ESC parameters (like drag brake force) in on the fly from your radio.

On trail tuning has never been this easy.

FOC Drive, Quiet, Powerful Torque with Excellent Linearity
The power system uses FOC (Field-oriented control) drive, delivering significantly stronger low-speed torque and smoother performance than conventional sensored systems.

It eliminates motor noise for near-silent operation, allowing you to fully enjoy the experience.

Closed loop, Intelligent Torque Control for Precise Throttle Matching and Amazing Control
The ESC features an intelligent torque output and speed closed-loop control system that automatically adapts to changing terrain conditions. The ESC increases output torque to overcome obstacles when encountering resistance.

On descents, it reduces torque output and stablizes vehicle speed, making driving remarkably simply.

IP67 All-terrain Protection.

The entire power system is rated IP67, delivering outstanding waterproof and dustproof performance. Whether in rain, snow, mud, sand, or standing water, it handles harsh environments with confidence.

Note: The IP67 rating protects against splashes, water exposure, and dust under normal use but is not permanent. Protective performance may decline over time due to aging. Do not submerge the product for extended periods, as this may cause damage.

Built-in 10A High-performance BEC

Built-in BEC capable of delivering up to 10A of output current
Supports selectable voltages of 6V/7.4V/8.4V
It effortlessly powers standard and high-voltage servos, as well as accessories like lighting systems and winches.

Five Selectable Operating Modes

The ESC offers versatile control with five operating modes, this flexibility easily adapts to a wide range of applications.

1 Constant Speed Mode(Direct Forward/Reverse)
2 Normal Mode(Forward/Reverse with Brake)
3 Normal Mode(Direct Forward/Reverse without Constant Speed)
4 Hybrid-RPM Matching Mode
5 Hybrid-Normal Mode
