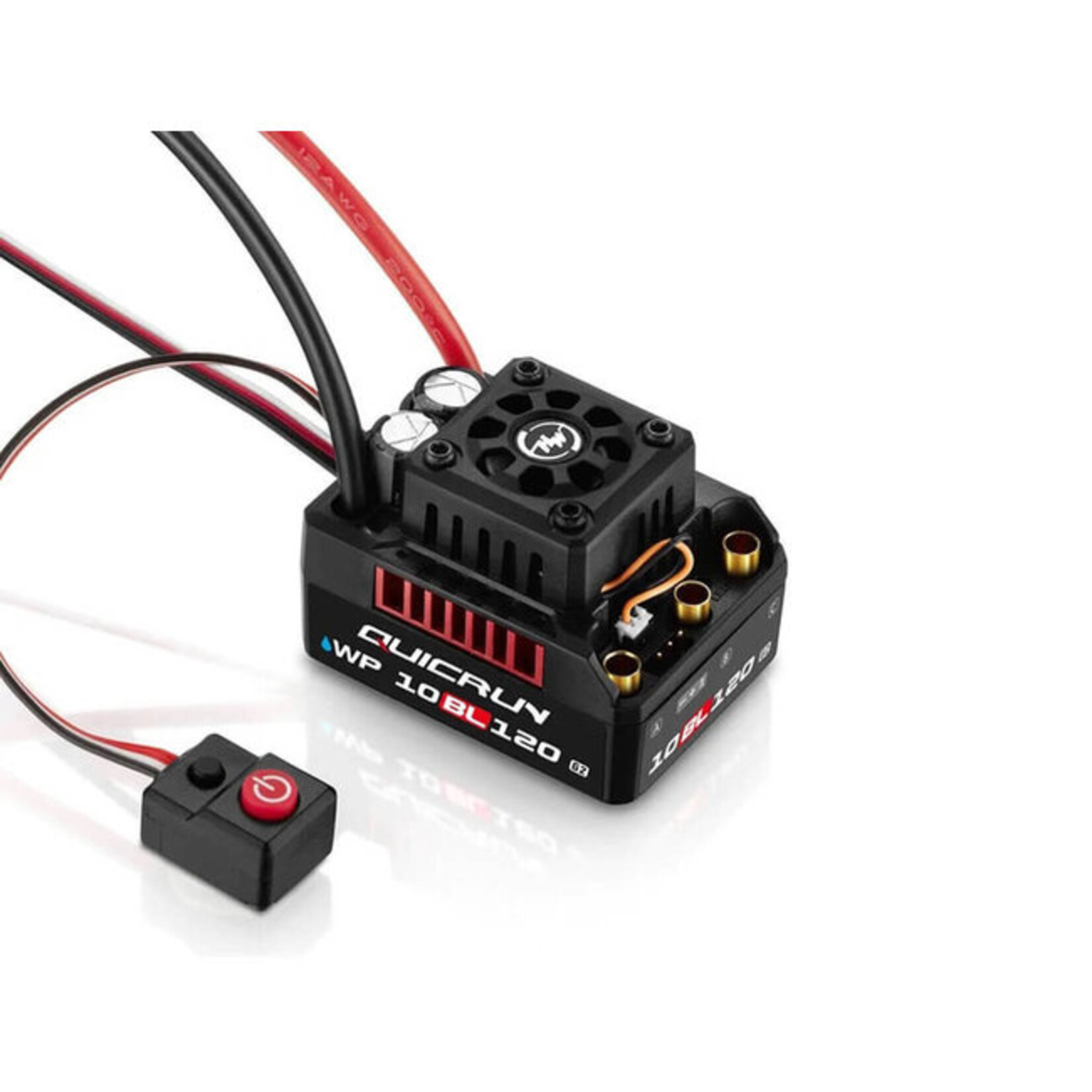

QUICRUN WP 10BL120 G2 (Cont./Peak Current: 120A / 760A) (2-4S Lipo)

Applications:(only in sensorless mode) 1/10th Short course truck,Monster truck

Motor Limit:

With 3S Lipo: KV ≤ 4000 3660 size motor

With 4S Lipo: KV ≤ 2600 4268 size motor

Built-in capacitor

Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for 10th scale models on the market and helps improves ease of use|

Size & Weight:52.8(L) x 39.8(W) x 38.2(H)mm / 119g (Included wires&connectors)

Intelligent freewheeling technology, greatly improved performance

The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.

Powerful built-in BEC

The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system

The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.
